Switch Push Button DPST IP56 Switch Black 250VAC 6A SP0743
Switch Push Button DPST IP56 Switch Black 250VAC 6A SP0743
Regular price
$7.95
Regular price
Sale price
$7.95
Unit price
per
Taxes included.
Couldn't load pickup availability

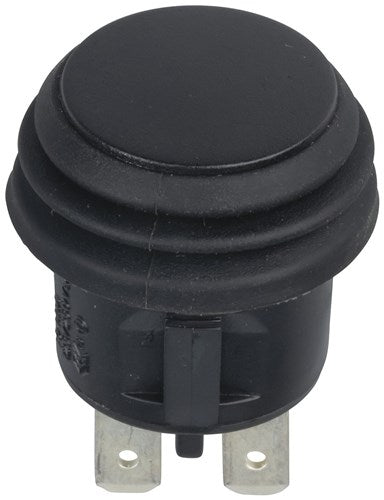

IP56 dust and water resistant round pushbutton switches, DPST with QC spade lugs.
• Black colour. Push on, push off

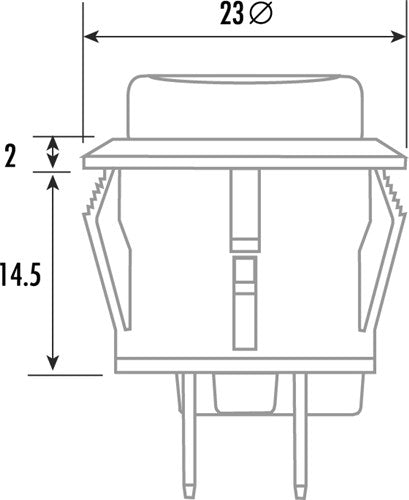

• Mounting hole: 20mm
• Black colour. Push on, push off
• Mounting hole: 20mm
Specifications
| Packaged Volume : 0.25l |
| Packaged Weight : 0.01kg |
| Packaged Length : 11.7cm |
| Packaged Width : 7cm |
| Packaged Height : 3cm |
| Dust/Particle Ingress Protection : 5 - Dust protected, protected but some dust may enter |
| Liquid/Moisture Ingress Protection : 6 - Powerful water jets |
| IP Rating certificate : true |
| IP Rating : 56 |
| AC Voltage rating : 250V |
| AC current rating : 6A |
| Switch Type : Pushbutton |
| Poles / Contacts : 2 pole |
| Throws / Positions : 1pos |
| Switch Function : Locking On/Off |
| Mechanism Material : Plastic |
| Switch Connection : Solder Legs |
| Switch Colour Coded : Black |
| Pole Throw Type : DPST |
