IP67 rated for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action.
IP67 Rated Illuminated Pushbutton Switch DPDT - Red Cat SP-0791
IP67 Rated Illuminated Pushbutton Switch DPDT - Green Cat SP-0792
IP67 Rated Illuminated Pushbutton Switch DPDT - Blue Cat SP-0793
IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Red Cat SP-0796

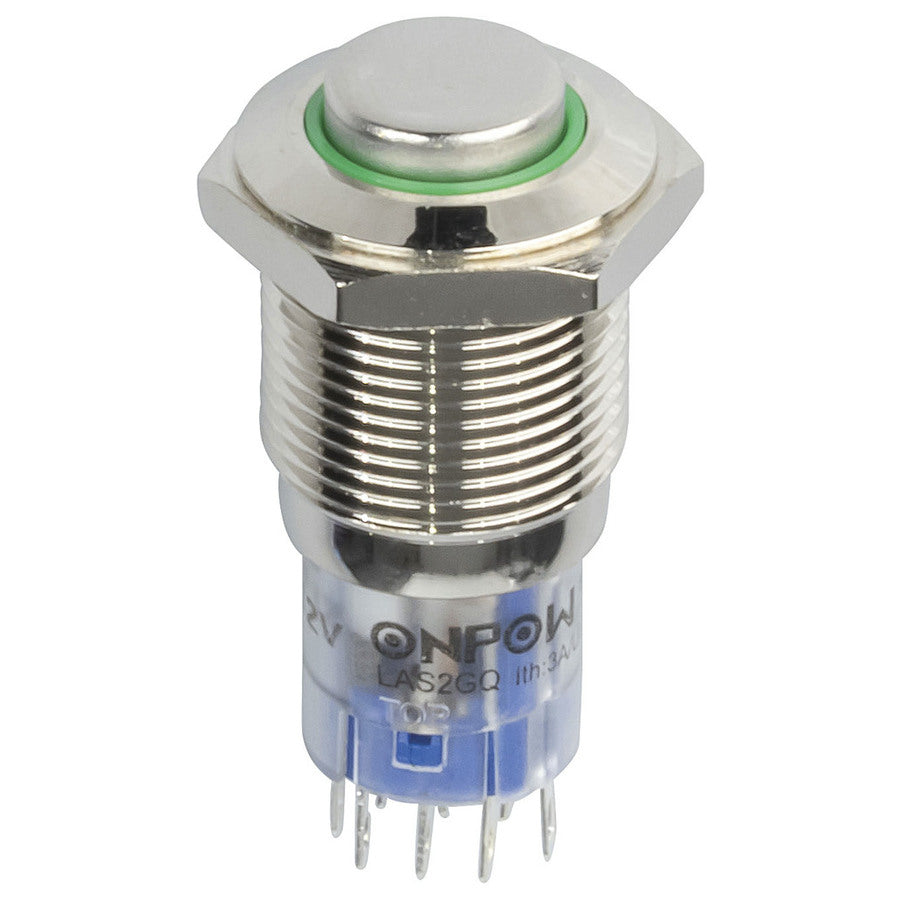

IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Green Cat SP-0797
Specifications
Electromechanical Switch
Switch Type
|
Pushbutton |
Poles / Contacts
|
2 pole |
Throws / Positions
|
2pos |
Switch Function
|
Single Action Momentary |
Switch Connection
|
Solder Tags |
Switch Colour Coded
|
Green |
Actuator Length
|
20mm |
Actuator Width
|
18mm |
Pole Throw Type
|
DPDT |
Product Mounting
Mounting Method
|
Panel |
Round Mount Hole Diameter
|
16mm |
Attachment / Securing Method
|
Collar / Nut |
AC Voltage Rating
AC Current Rating
In-built Illumination
Illumination Colour
|
Green |
Nominal Voltage
|
12V |
Connection
|
Solder Tags |
Type
|
5mm Standard LED |
Ingress Protection Rating
IP Rating certificate
|
|
Dust/Particle Ingress Protection
|
6 - Dust tight, no ingress of dust |
Liquid/Moisture Ingress Protection
|
7 - Immersion up to 1m |
IP Rating
|
67 |
Product Dimensions
Diameter
|
22mm |
Height
|
40mm |
Packaged Dimensions
Packaged Volume
|
0.016l |
Packaged Weight
|
0.017kg |
Packaged Length
|
4cm |
Packaged Width
|
2cm |
Packaged Height
|
2cm |
