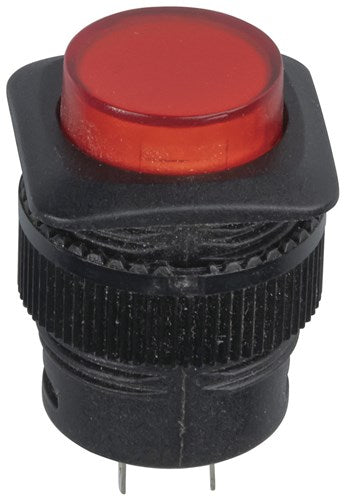

Switch Push Button Red LED Illuminate SP0706

These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.

Specifications

AC current rating : 1.5A

AC Voltage rating : 250V

Nominal Voltage : 2V, 2V

Type : 5mm Standard LED

Illumination Colour : Red

Connection : Solder Legs

Length : 18mm

Width : 18mm

Height : 60mm

Diameter : 18mm

Packaged Volume : 0.18l

Packaged Weight : 0.01kg

Packaged Length : 11.2cm

Packaged Width : 7cm

Packaged Height : 2.3cm

Switch Type : Pushbutton

Pole Throw Type : SPST

Poles / Contacts : 1 pole

Throws / Positions : 1pos

Switch Function : Single Action Momentary

Switch Connection : Solder Legs

Switch Colour Coded : Red

Contact Resistance : 50Ω

Insulation Resistance : 100Ω

Dielectric Strength : 1500V
