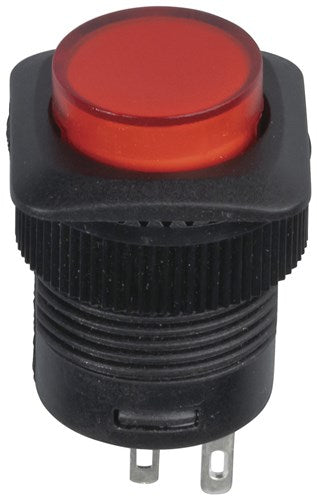

Switch Push Button SPST LED Illuminated PUSH ON / PUSH OFF SP0704
Switch Push Button SPST LED Illuminated PUSH ON / PUSH OFF SP0704
Regular price
$7.50
Regular price
Sale price
$7.50
Unit price
per
Taxes included.
Couldn't load pickup availability
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
Specifications
| AC current rating : 1.2A |
| AC Voltage rating : 250V |
| Nominal Voltage : 2V, 2V |
| Type : 5mm Standard LED |
| Illumination Colour : Red |
| Connection : Solder Legs |
| Length : 18mm |
| Width : 18mm |
| Height : 30mm |
| Diameter : 18mm |
| Packaged Volume : 0.16l |
| Packaged Weight : 0.01kg |
| Packaged Length : 11.1cm |
| Packaged Width : 6.8cm |
| Packaged Height : 2.1cm |
| Switch Type : Pushbutton |
| Pole Throw Type : SPST |
| Poles / Contacts : 1 pole |
| Throws / Positions : 1pos |
| Switch Function : Locking On/Off |
| Switch Connection : Solder Legs |
| Switch Colour Coded : Red |
| Contact Resistance : 50mΩ |
| Insulation Resistance : 100MΩ |
| Dielectric Strength : 1V |
| Mechanism Material : Plastic |
