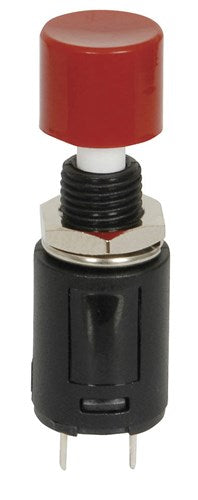

Switch Push Button SPST Red Momentary Round SP0702
Switch Push Button SPST Red Momentary Round SP0702
Regular price
$4.95
Regular price
Sale price
$4.95
Unit price
per
Taxes included.
Couldn't load pickup availability
SPST momentary push on switch.
Specifications
| AC current rating : 1.5A |
| AC Voltage rating : 250V |
| Packaged Volume : 0.08l |
| Packaged Weight : 0kg |
| Packaged Length : 11.4cm |
| Packaged Width : 6.8cm |
| Packaged Height : 1cm |
| Switch Type : Pushbutton |
| Pole Throw Type : SPST |
| Poles / Contacts : 1 pole |
| Throws / Positions : 1pos |
| Switch Function : Single Action Momentary |
| Switch Connection : Solder Legs |
| Switch Colour Coded : Red |
| Mechanism Material : Plastic |
