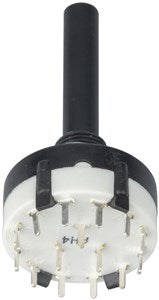

Switch Rotary Sealed 3pole 4way SR1214

These switches have a removable ring with tab which can be inserted into the switch several ways to your particular requirements. For example, if you purchased a 1 pole x 12 way (max) switch you could convert it to, say, 1 pole 7 way between stops. They have a standard 1/4 shaft. From 3 pole 2 position to 3 pole 4 position

Specifications

AC current rating : 150mA

AC Voltage rating : 240V

Packaged Volume : 0.03l

Packaged Weight : 0.01kg

Packaged Length : 2.5cm

Packaged Width : 2.5cm

Packaged Height : 5.4cm

Switch Type : Rotary

Poles / Contacts : 3 pole

Throws / Positions : 4pos

Switch Connection : Spade Terminals

Break/Make Function : Break Before Make (BBM)
