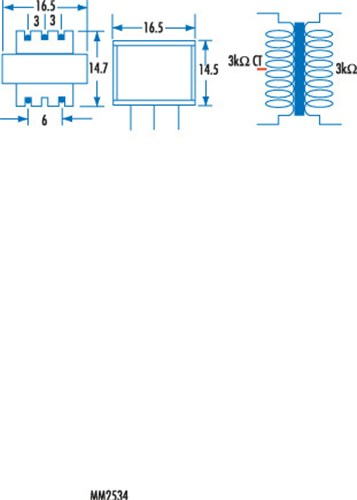

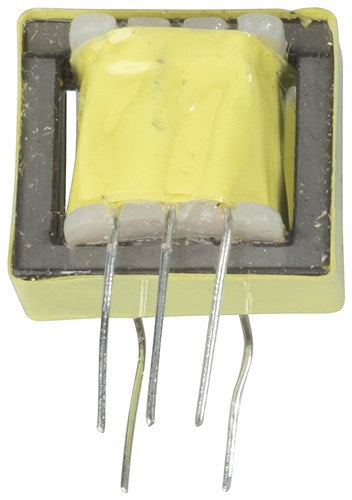

Transformer 3kohm Centre Tap to 3k ohm Coupling MM2534

Designed to be PCB mounted, these small iron core transformers have a power handling of 350mW. Both the Primary and secondary winding have an impedance of 3k.

Specifications

Packaged Volume : 0.01l

Packaged Weight : 0.01kg

Packaged Length : 2.5cm

Packaged Width : 1.6cm

Packaged Height : 1.6cm

Secondary Winding Configuration : Centre Tapped

Core Material : Iron

Input Impedance : 3kΩ

Output Impedance : 3kΩ
