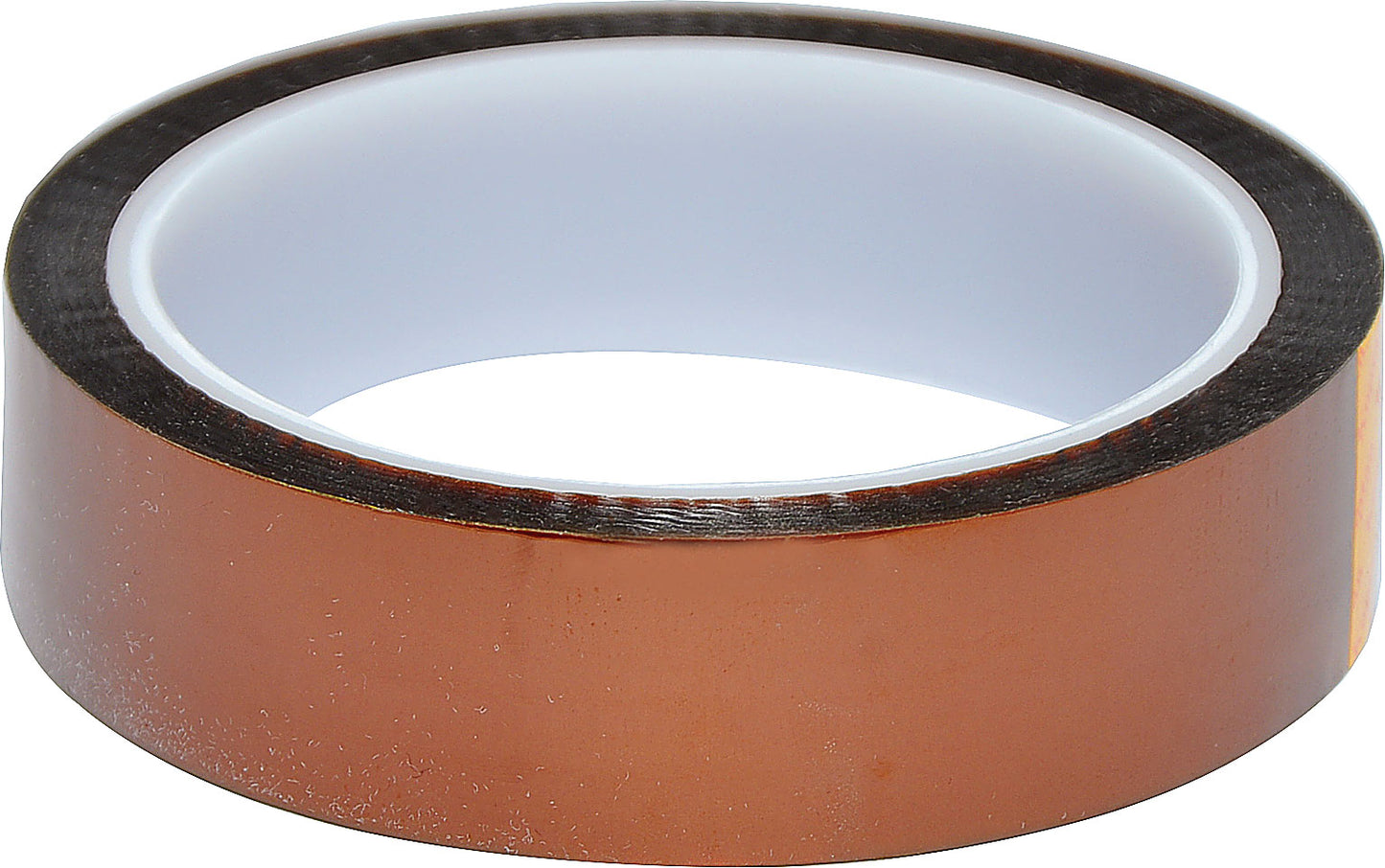

Tape & Adhesive 24mm X 33m High Temperature Polyimide Tape T2975A

Tape & Adhesive 24mm X 33m High Temperature Polyimide Tape T2975A

Regular price $21.25
Regular price Sale price $21.25
Sale Sold out
Taxes included.
Quantity
View full details

These 33m rolls of 24mm wide, high temperature polyimide tape offer high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue, making it ideal for use in electrical insulation or masking circuit boards during wave soldering.

Typical Applications:
Magnet wire and cable
Slot liner insulation
lnter-layer insulation in motors and transformers
Flexible PCBs
Solder masking
3D printing

Specifications

  • Total Thickness: 60±2µm
  • Backing Thickness: 25µm
  • Initial Tack: 25±2
  • Adhesion to Steel: 6.5±1
  • Holding Power: ≥72hrs
  • Tensile Strength: 90
  • Elongation at Break: 70%
  • Max Temperature resistance: 260*C
  • Tape Structure: Silicon adhesive Pi film
