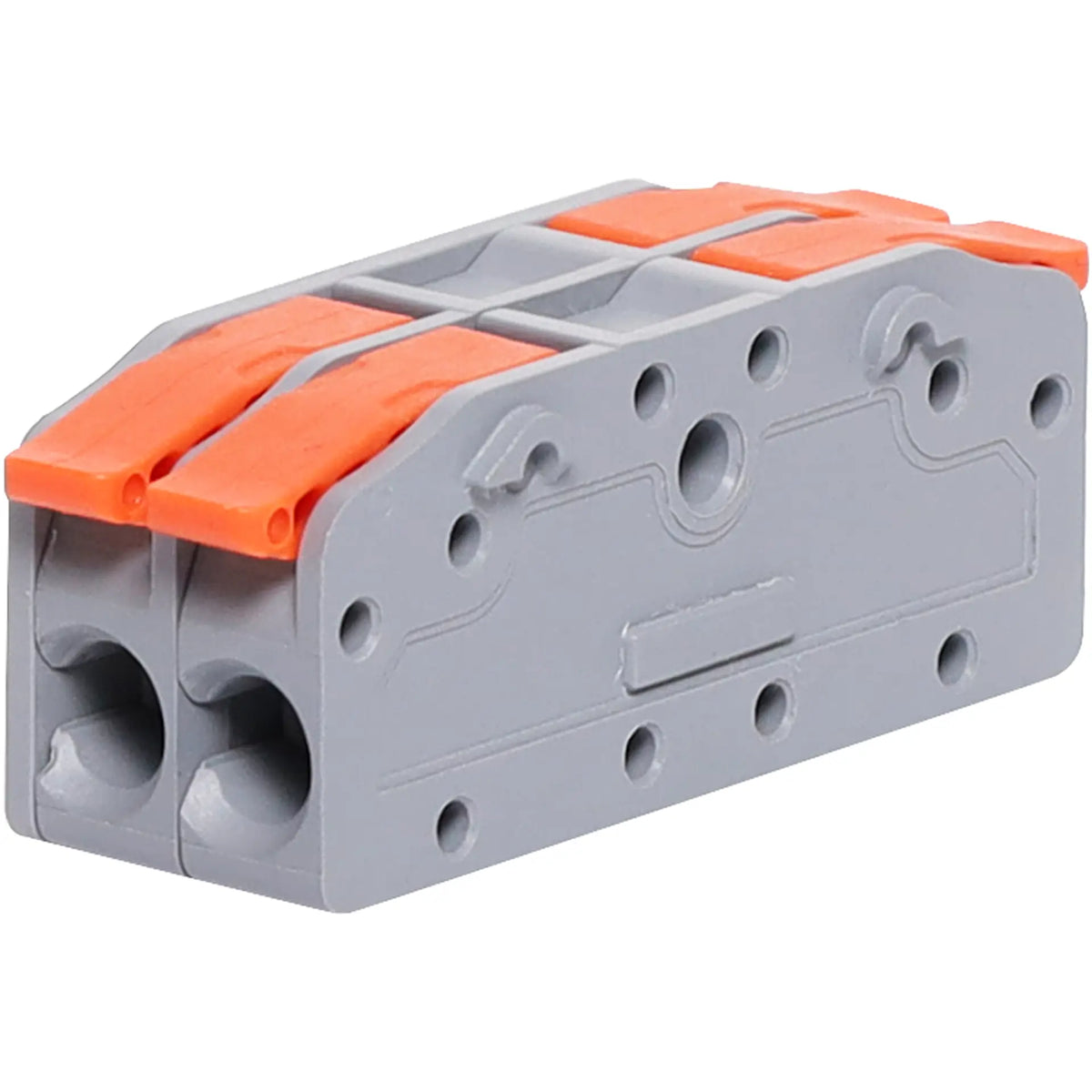

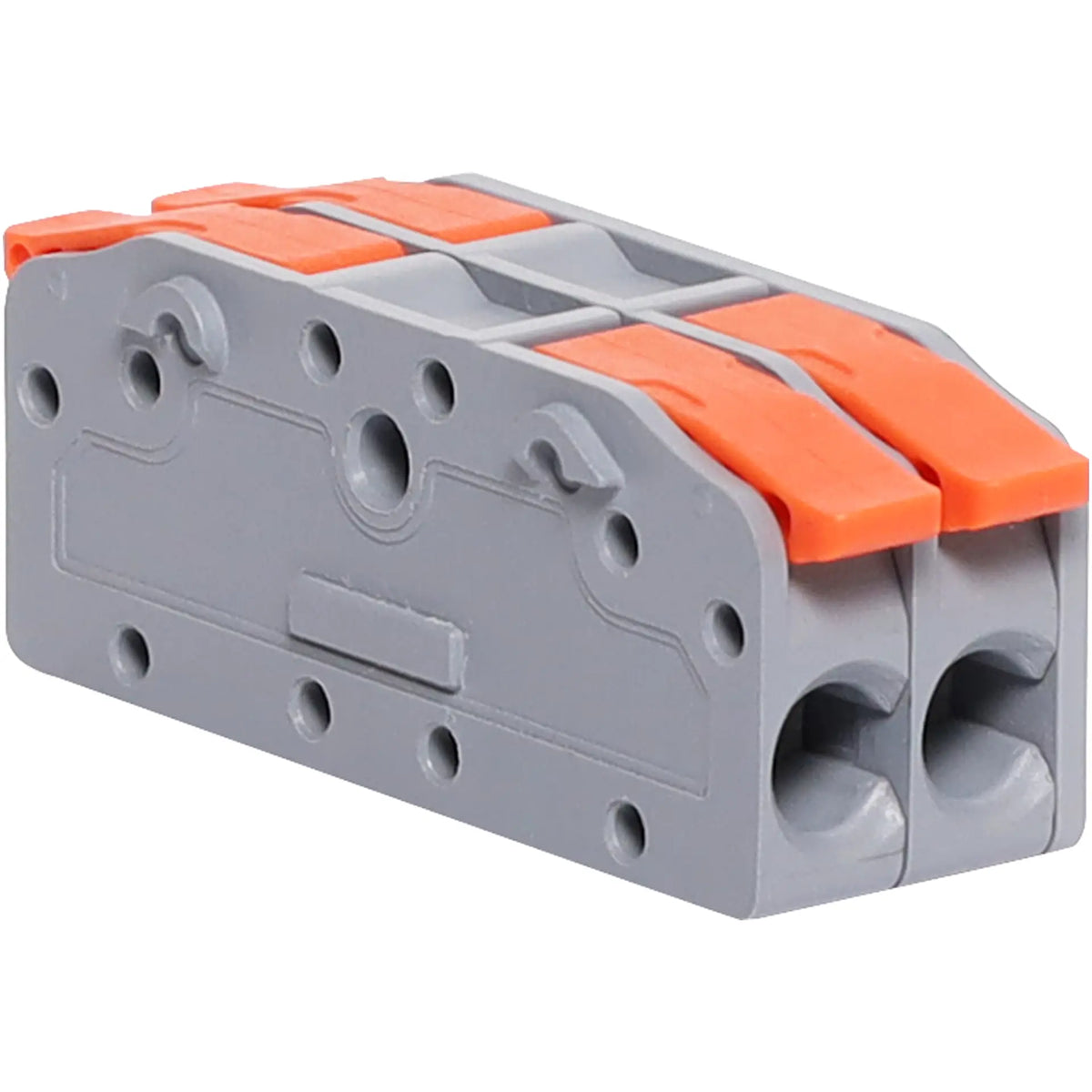

Terminal Block 2 X 2 Way Lever Joiner 6mm PL2245

This joiner lever splicing terminal block is a high-quality and durable connector designed for various electrical applications. With flame retardant polyamide (PA) shell, actuating lever, and conductive parts made of copper nickel plated, this connector ensures reliable and secure connections.

The unique design allows you to pair with the 2 way and 3 way versions of this connector to build your own length terminal block. Simply pop off the side panel, line up with the second terminal block and push together. Designed to withstand harsh working conditions with its wide temperature range of -40℃ to +105℃.

Specifications:

• Voltage: 450V
• Rated Current: 41A
• Connection Capacity: 0.5-6mm²
• Working Temperature: -40℃ – +105℃
• Strip Length: 11mm/0.43inch
• Connector Shell: Polyamide Pa66C
• Actuating Lever: Polyamide Pa66
• Conductive Parts: Thinned copper
• Contact spring: AISI 301 stainless steel
• Type of electric connection: Equipotential
