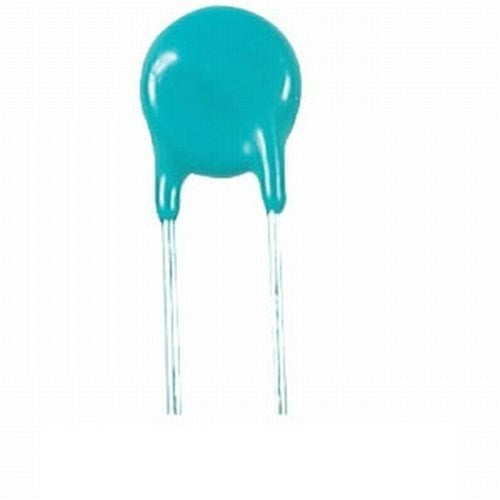

Thermistor NTC Epoxy Dip 100O RN3432

These devices are made of a special ceramic material which changes resistance value rapidly with temperature change. They are commonly used to check thermal runaway with bipolar transistor amplifiers etc, but really have dozens of other uses. They are rugged and very reliable.

Features:
- Radial type, dipped epoxy
- Type-NTC Ceramic material with tinned copper lead

Specifications

DC current rating : 200mA

Maximum Power : 500mW

Diameter : 5mm

Packaged Volume : 0l

Packaged Weight : 0kg

Packaged Length : 0.5cm

Packaged Width : 0.2cm

Packaged Height : 3.7cm

Temperature Coefficient : Negative (NTC)

Resistance : 100Ω

Thermistor Temperature Range : -20°C, 125°C

Thermal Dissipation Constant : 6mW/°C

Component Type : Thermistor

Pack Quantity : 1pc

Pitch : 5mm

Passive mount type : Through Hole

Passive connector type : Solder Legs

Component package : Radial

Passive number of legs : 2 count
