Thermostat Switch Normally Open 50°C ST3831
Thermostat Switch Normally Open 50°C ST3831
Regular price
$7.50
Regular price
Sale price
$7.50
Unit price
per
Taxes included.
Couldn't load pickup availability

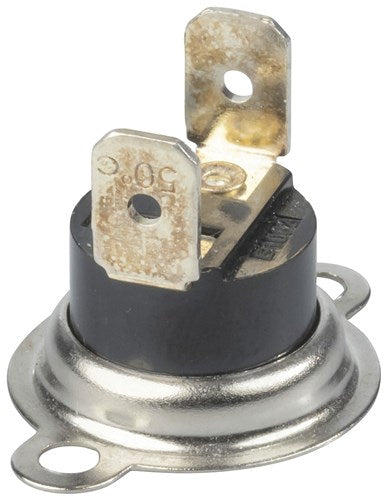

This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. These thermostat switches have normally open contacts. They operate once the temperature reaches a specified limit and automatically reset to their original normally open state once the temperature drops below its rated temperature.
These are suitable for power amplifier applications and other temperature sensitive devices where a cooling fan needs to be integrated to cool the device down. Mounting holes are provided, ideal for attachment to a heatsink or any metallic surface.
Specifications
| Type of thermal switch or fuse : Thermal circuit breaker |
| Thermal reset method : Automatic |
| Thermal trip temperature : 50°C |
| Normally open or normally closed : Normally open |
| operating tolerance : +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC) |
| reset differential : 10°C - 50°C |
| contact endurance : 32VDC-100mA, 125VAC-10A, 250VAC-6A |
| operation cycles : 50000, 100000, 30000 |
| Height : 21.2mm |
| Diameter : 30.3mm |
| Packaged Volume : 0.14l |
| Packaged Weight : 0.01kg |
| Packaged Length : 3cm |
| Packaged Width : 21cm |
| Packaged Height : 2.2cm |
