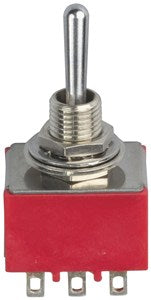

3DPT miniature toggle switch
Specifications
| AC current rating : 2A |
| AC Voltage rating : 250V |
| DC current rating : 5A |
| DC Voltage : 28V |
| Mounting Method : Behind Panel |
| Packaged Volume : 0.01l |
| Packaged Weight : 0kg |
| Packaged Length : 1.8cm |
| Packaged Width : 3.5cm |
| Packaged Height : 1.2cm |
| Switch Type : Toggle |
| Poles / Contacts : 3 pole |
| Throws / Positions : 1pos |
| Cycle Life : 40000 cycles |
| Contact Resistance : 10MΩ |
| Insulation Resistance : 1000MΩ |
| Dielectric Strength : 1000V |
| Actuator Length : 16.51mm |
| Actuator Width : 12.7mm |
