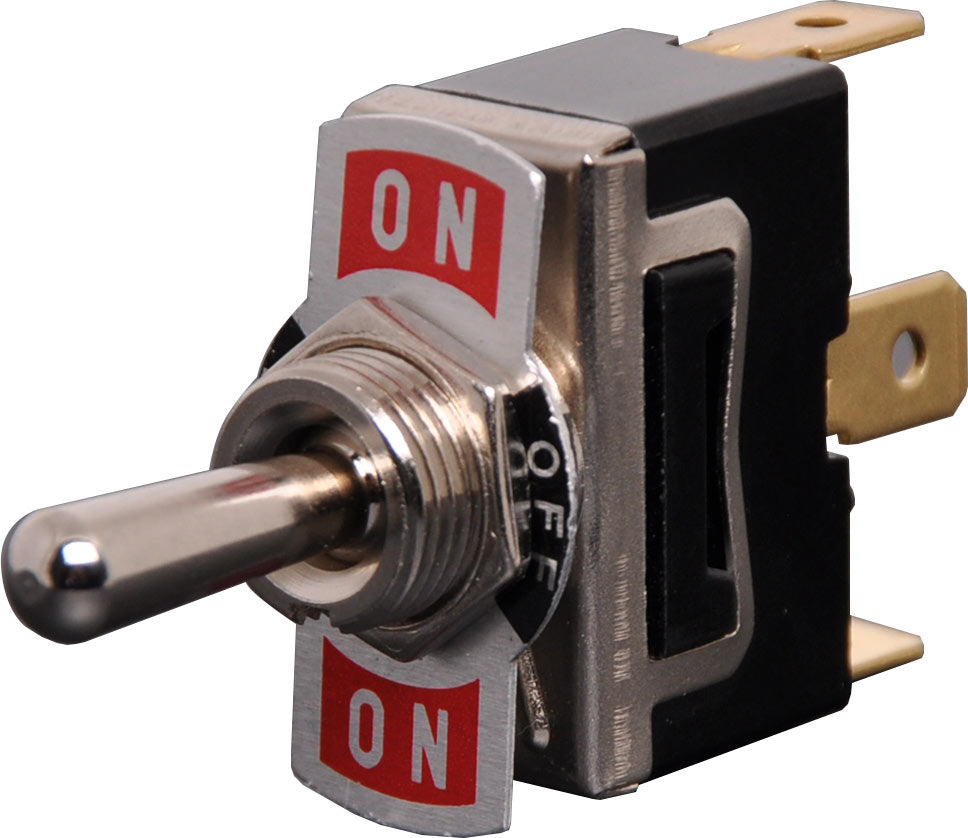

A heavy duty toggle switch featuring momentary action in both directions. Ideal for up/down motor control applications. 10A @ 250V AC rated for automotive and industrial applications.
Specifications
- Action: Momentary On - Off - Momentary On.
- Plate: On-Off-On
- Contact rating: 10A @ 250V AC

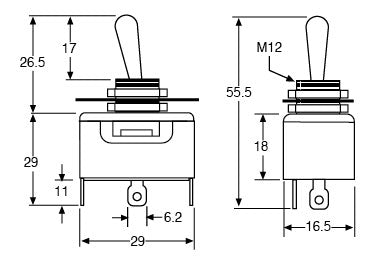

- Mounting hole diameter: 12mm
- Actuator: Metal
- Contact resistance: 50mΩ max.
- Insulation resistance: >1000MΩ
- Dielectric strength: >1500V AC 1 minute
