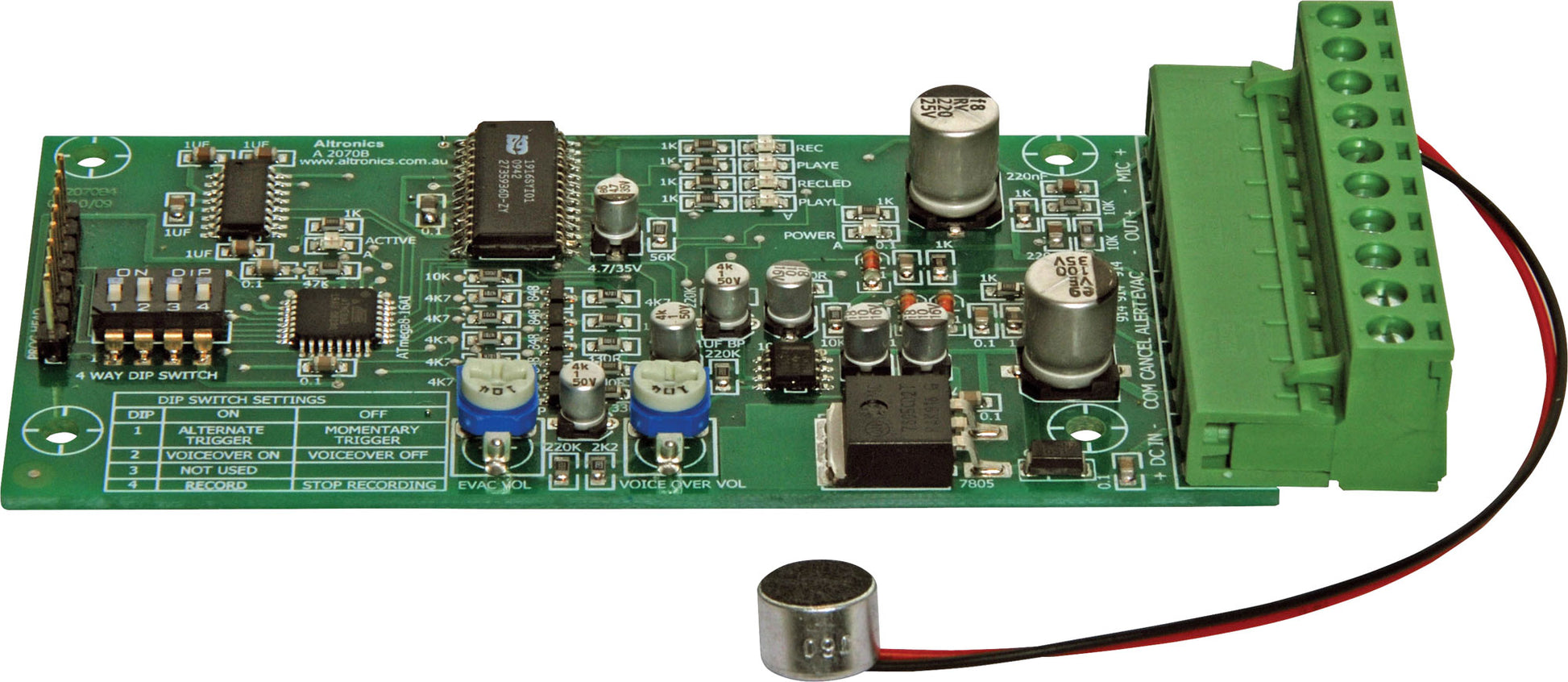

Tone Generator Alert/Evac With Voiceover Chip A2070B

Now includes voice chip for recording custom messages.

Containing both the alert & evacuation tones based on Australian standard this compact self contained module will integrate with most PA amplifiers. Tones conform to AS1670.4

Features

• Tones can be configured for single or continuous cycle operation
• Switched negative to operate inputs
• On board output level control
• Line level output max 1V
• All connections made via screw terminals
• CPU based
• Tones conform to Australian standard
• Provision for voice over in evacuation mode
• All tones crystal locked
• Compact size 53 x 107mm
• 7-35V DC operation

Operating Instructions
