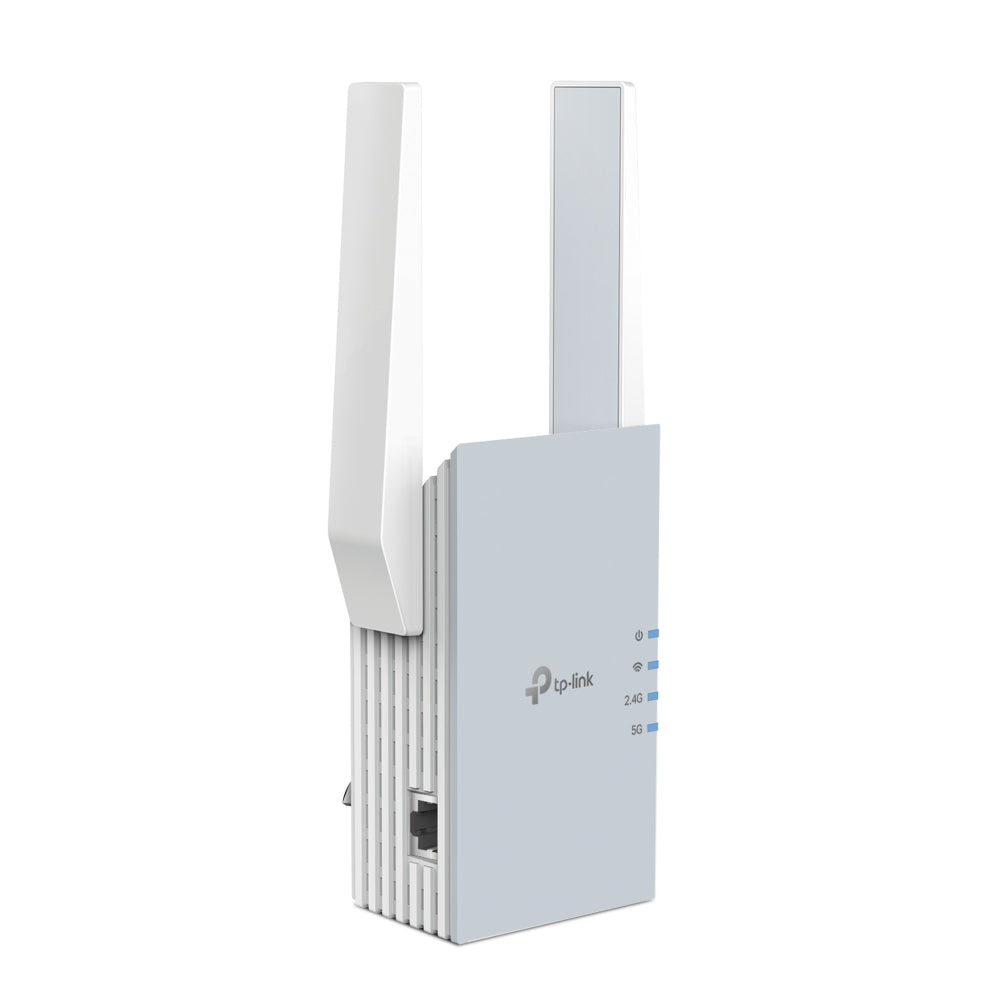

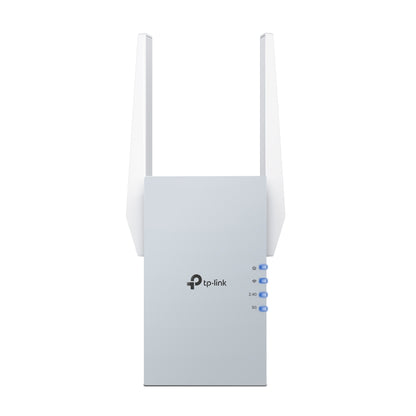

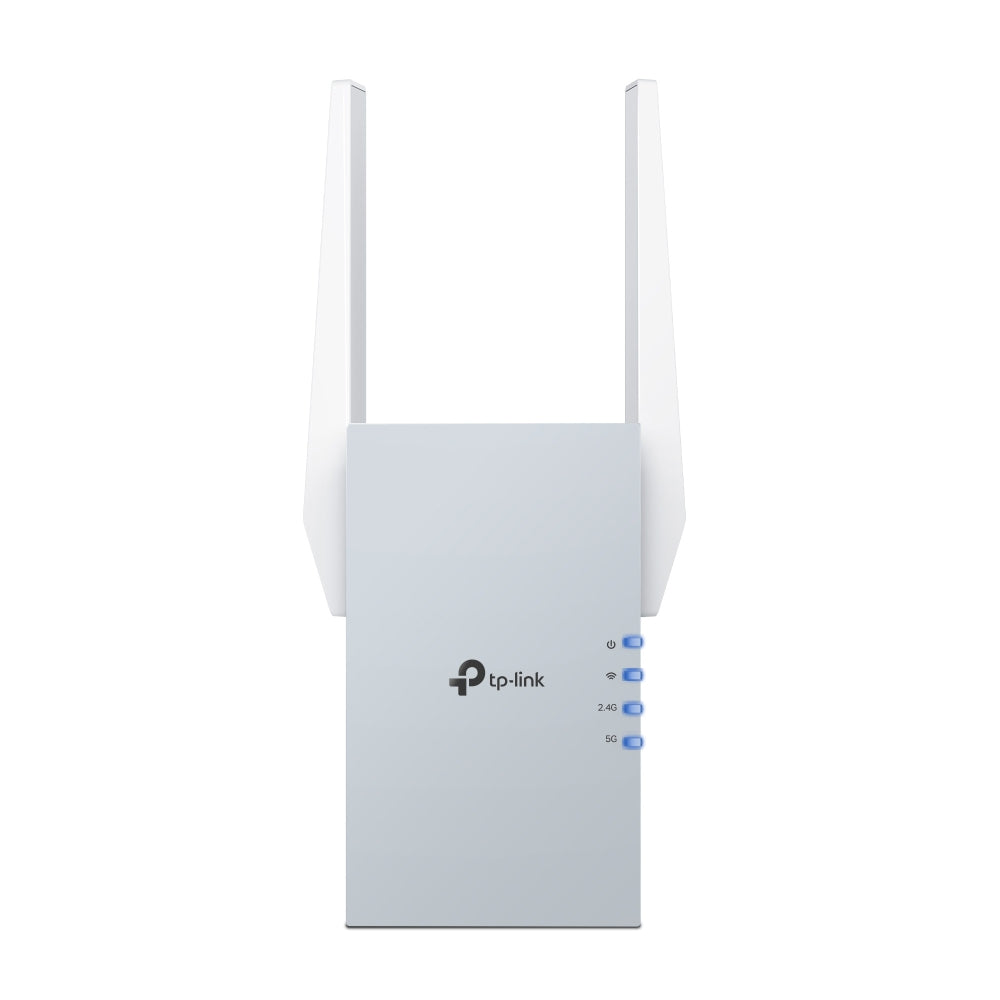

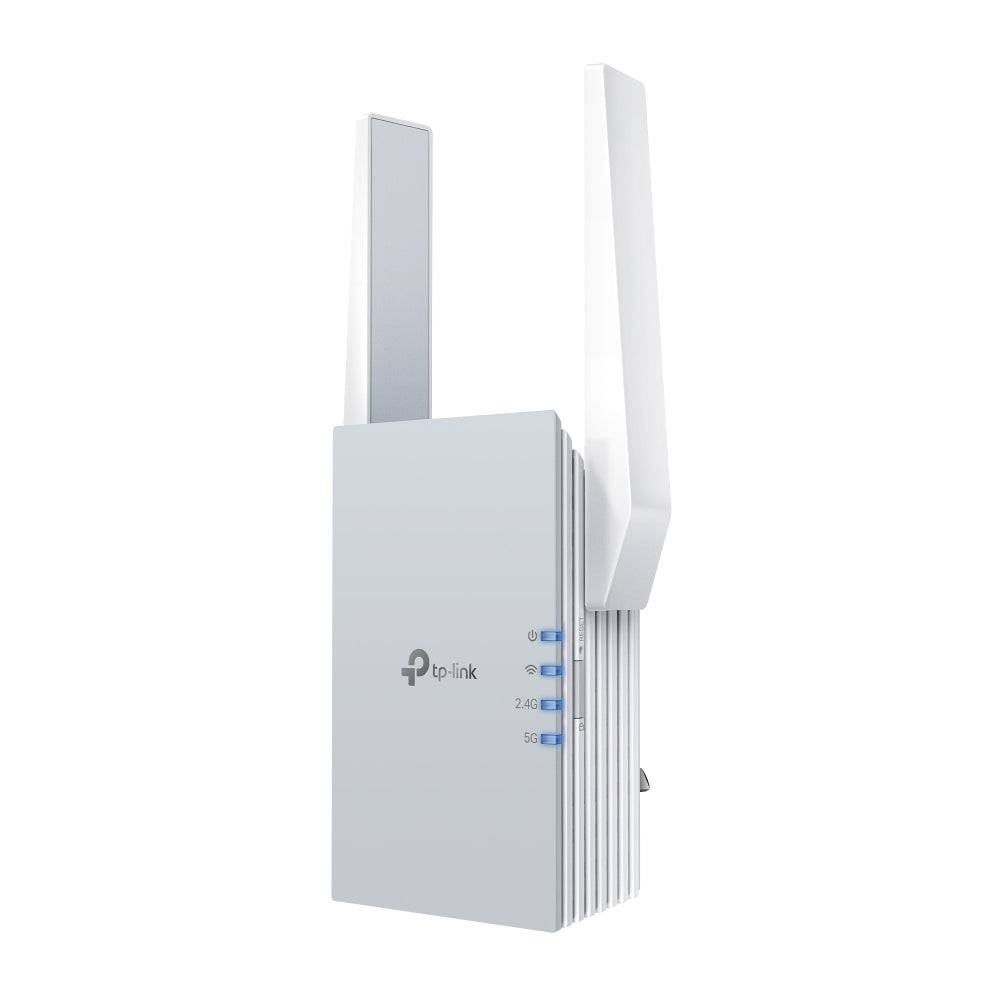

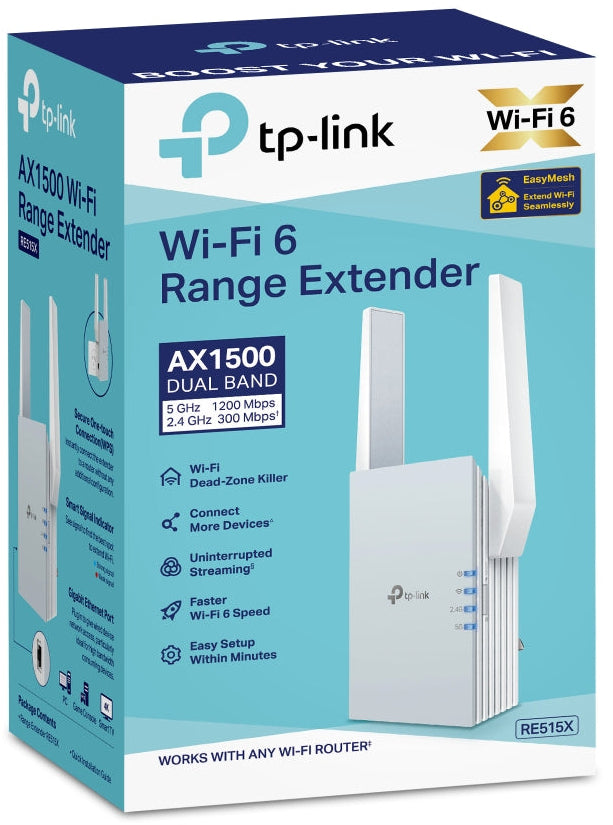

Tp-link Ax1500 Wifi Range Extender NWTL-RE515X

Tp-link Ax1500 Wifi Range Extender NWTL-RE515X

$159.95
$159.95
Sale Sold out
Taxes included.

AX1500 Wi-Fi Range Extender

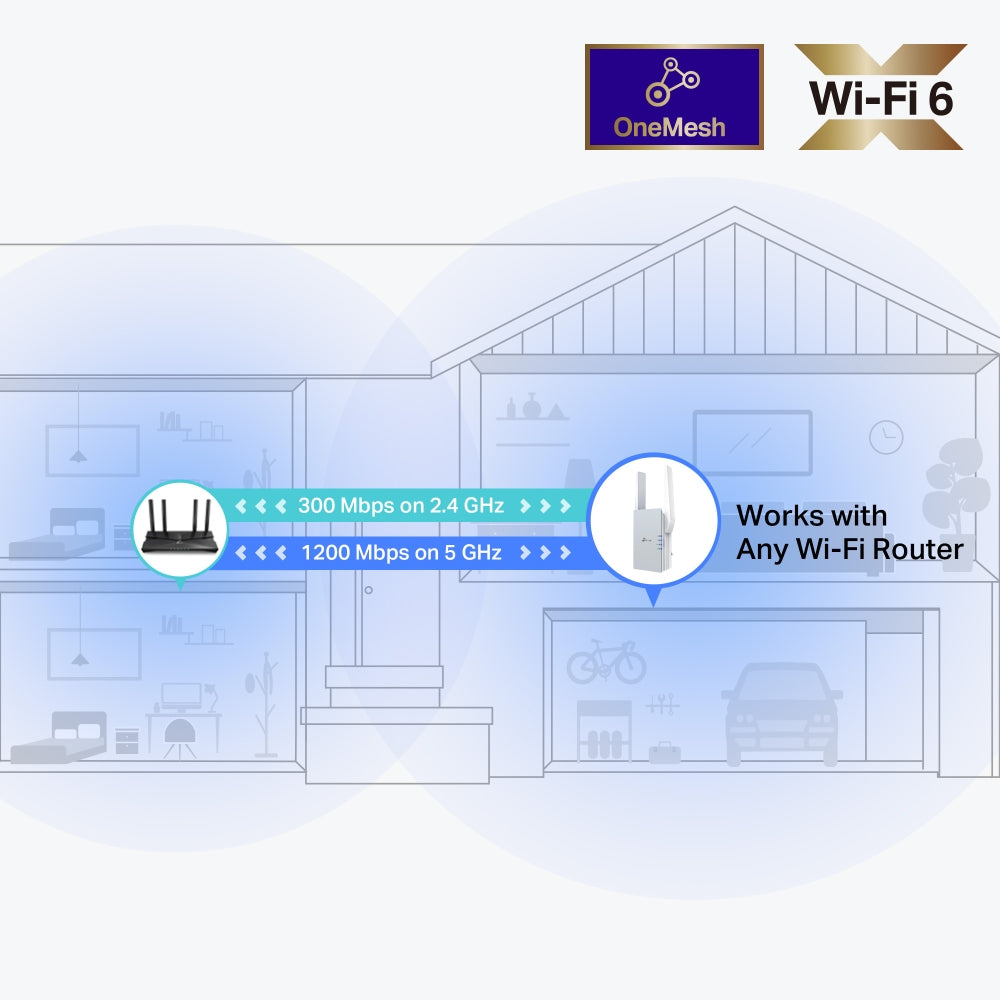

  • Up to 1.5 Gbps Dual Band Wi-Fi: Separates 5 GHz (1200Mbps) and 2.4 GHz (300 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.
  • Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.
  • EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.
  • Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers and gaming consoles.
  • AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.
  • Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
  • Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point.

Expand Coverage of the Fastest Next-Gen Wi-Fi

AX1500 Range Extender

Cutting-Edge Wi-Fi 6

The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.

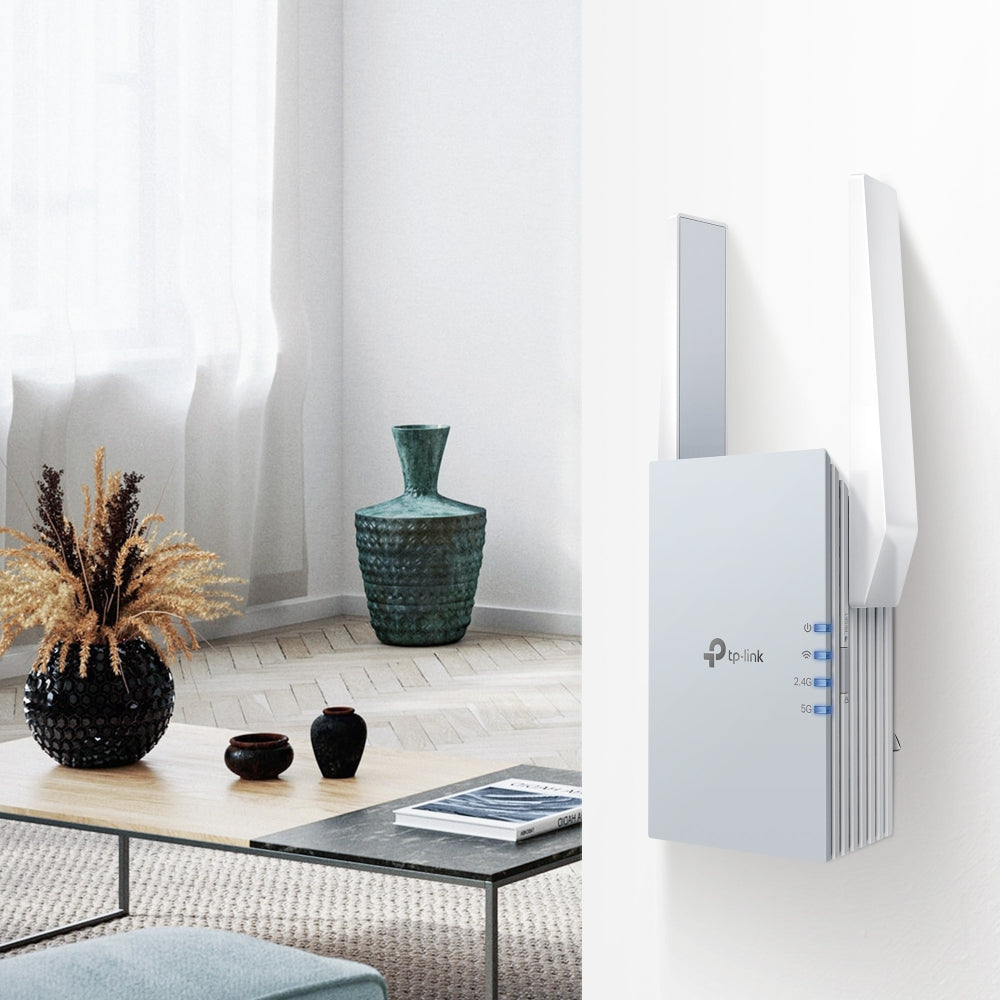

Fill Every Inch of Your Home with Wi-Fi 6

The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favourite show anywhere.

Built-In Access Point Mode

RE505X is more than just a wireless range extender. Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.

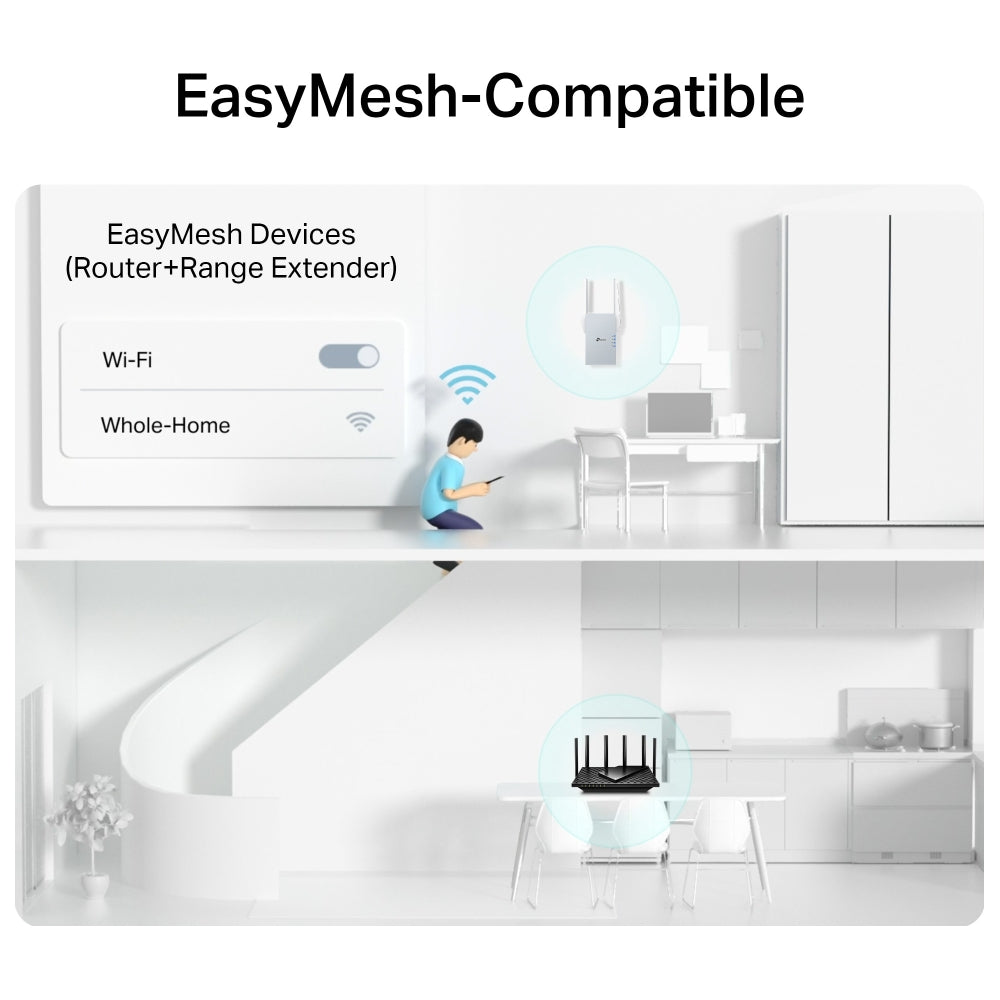

Flexibly Create Whole Home Mesh Wi-Fi

RE505X is EasyMesh-compatible. If you have any Wi-Fi dead zones at home, simply add another EasyMesh router to further form your whole home mesh WiFi. No more searching for a stable connection. For a better network experience, we recommend combining with RE505X.

Wi-Fi Dead Zone Killer

Eliminate weak signal areas with Wi-Fi coverage for the whole house

Smart Roaming

Uninterrupted streaming when moving around your home

One Wi-Fi Name

No more switching Wi-Fi network names

Control at Your Fingertips

Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications

Hardware Features
Interface 1 Gigabit Ethernet Port
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Max. Power Consumption 10W
Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna 2 External Antennas

Wireless Features
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Working Modes Range Extender/Access Point
Reception Sensitivity 5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Wireless Functions Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage
Wireless Security 64/128-bit WEP, WPA/WPA2-PSK encryptions
Transmission Power CE (EU): 2.4G＜20dBm, 5G＜30dBm
Mesh Technology EasyMesh-Compatible

Other
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 20002   Protocol: UDP

Others
Certification FCC, RoHS
Package Content Wi-Fi Range Extender RE505X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
