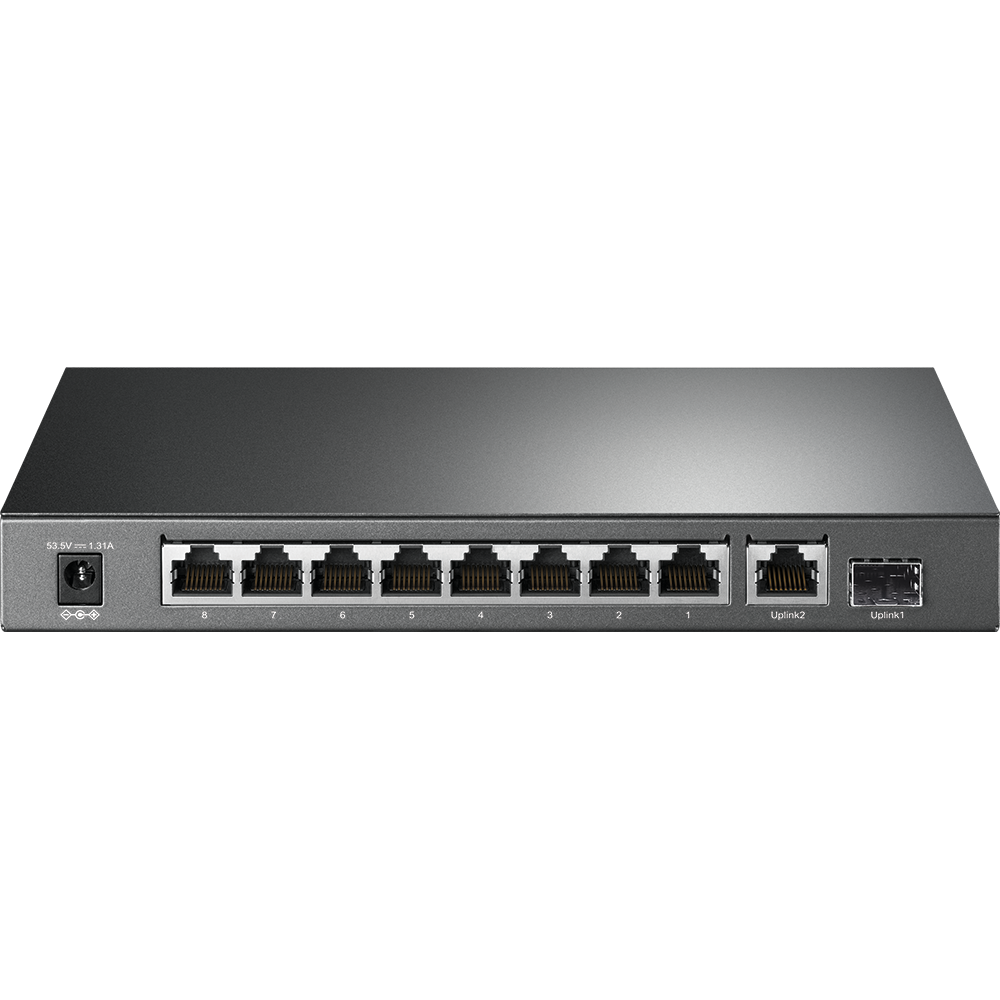

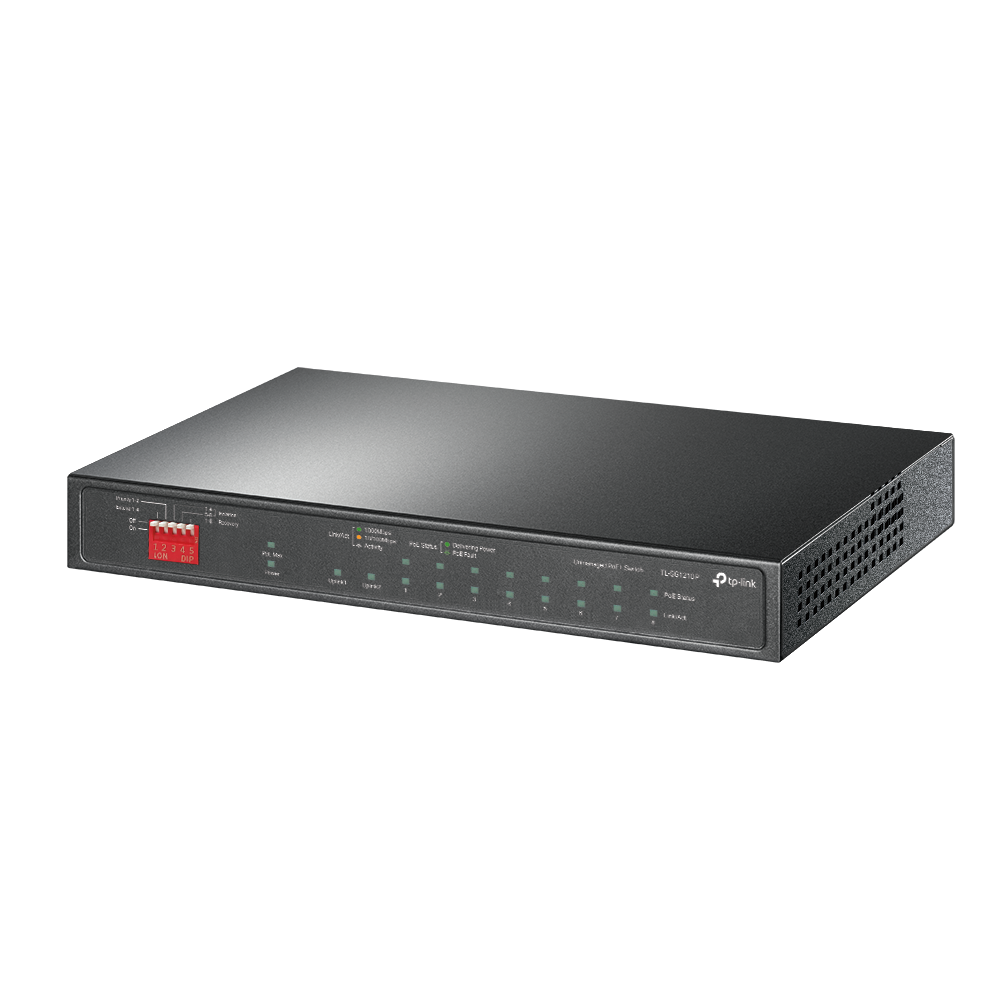

10-Port Gigabit Desktop Switch with 8-Port PoE+
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Up to 250 m data and power transmission range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Easy to use, with no configuration and installation needed
Professional 10-Port Gigabit Unmanaged Switch with 8-Port PoE+
Plug and Play, with PoE Transmission for Surveillance up to 250 m TL-SG1210P
Dedicated 8 PoE+ Ports (63 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 63 W PoE power budget for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance —Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.
Keep Your Network Smooth and Safe with Port Prioritisation and Separation
Port Prioritisation
Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritising the data of ports 1-2.
Enhanced with Port Isolation
Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 63 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1210P are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210P delivers switching performance you can depend on.
Specifications
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max. Power Consumption | 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) |
| Max. Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
|---|---|
| Transmission Method | Store-And-Forward |
| Certification | CE, FCC, RoHS |
|---|---|
| Package Content | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
