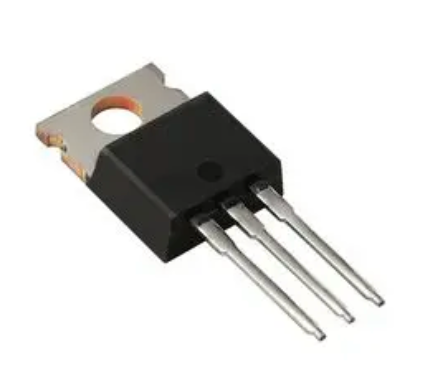

Transistor Mosfet Irf1405 N-ch 55v 133a To220 8648026
Transistor Mosfet Irf1405 N-ch 55v 133a To220 8648026
Regular price
$8.95
Regular price
Sale price
$8.95
Unit price
per
Taxes included.
Couldn't load pickup availability
The IRF1405PBF is a 55V N-channel HEXFET Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using advanced planar technology. Suitable for anti-lock braking system, electric power steering, wiper control and climate control applications.
- 175°C Operating temperature
- Repetitive avalanche allowed up to Tjmax
- Dynamic dV/dt rating
Technical Specifications
Channel Type
- N Channel
Continuous Drain Current Id
- 169A
Transistor Case Style
- TO-220AB
Rds(on) Test Voltage
- 10V
Power Dissipation
- 330W
Operating Temperature Max
- 175°C
Qualification
- -
SVHC
- No SVHC (25-Jun-2025)
Drain Source Voltage Vds
- 55V
Drain Source On State Resistance
- 5300µohm
Transistor Mounting
- Through Hole
Gate Source Threshold Voltage Max
- 4V
No. of Pins
- 3Pins
Product Range
- -
MSL
- -
