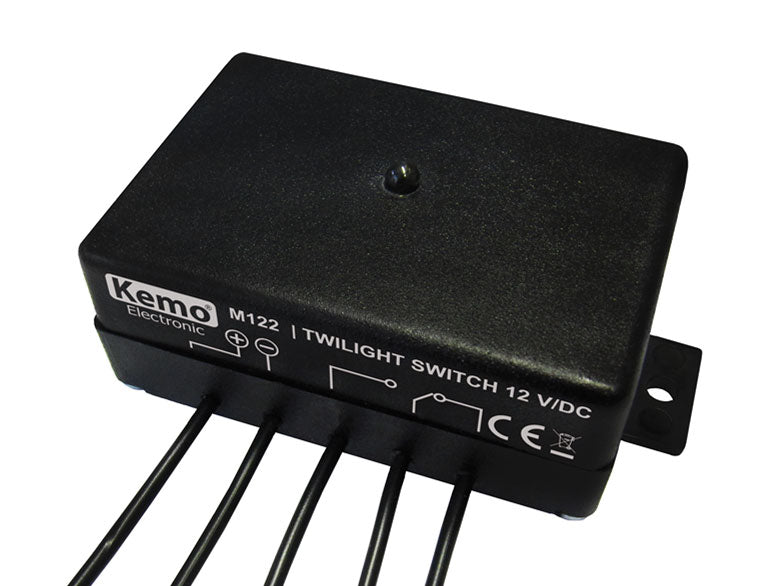

Twilight Switch 12V M122 A0724

This switch allows users to switch lamps or other electric devices on or off at dusk or daybreak. The sensitivity of the luminous intensity may be changed by partially covering the sensor mechanically.

User Manual

• Operating voltage: 12 V/DC (11 - 14 V)
• Power consumption: approx. 2 mA/35 mA (relay off/on)
• Relay contact: 1 x SWITCH OVER, loading capacity max. 25 V, 3 A
• Operating temperature range: approx. -15 to +50°C
• Luminous intensity switching-on: approx. 25 lux ±20%
• Luminous intensity switching-off: approx. 45 lux ±20%
• Switching delay: approx. 3 - 4 seconds
• Dimensions: approx. 72 x 50 x 32mm (without fastening straps, with sensor)
