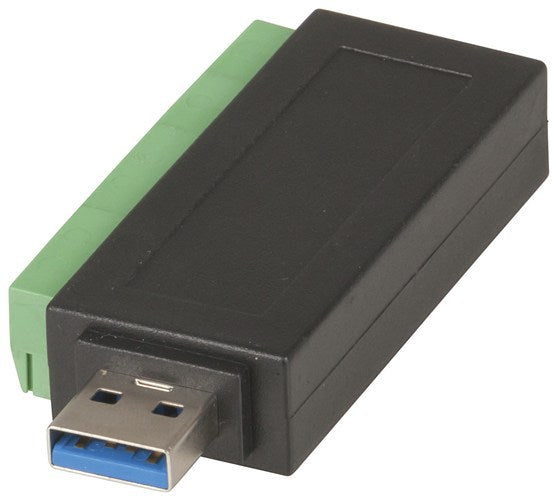

USB 3.0 Type-A Plug to 10-Way Screw Terminal Header Adaptor PA0956

SKU: 9319236758809


USB Type A plug to a 10-way screw terminal block for temporary or prototyping applications. No soldering required.
  • Insulation Resistance of 10MΩ @ 300VDC for up to 0.01S


AC current rating : 1A
AC Voltage rating : 30V
Length : 68mm
Width : 33mm
Height : 13mm
Weight : 30g
Packaged Volume : 0.03l
Packaged Weight : 0.03kg
Packaged Length : 6.5cm
Packaged Width : 2.8cm
Packaged Height : 1.8cm
Plug or Socket Type : USB Type A
Device : Plug
Attachment Method : Screw
Contacts / Pins : 10pc
Contact resistance : 0Ω, 2Ω
Dielectric Withstanding Voltage : 100V
Insulation resistance : 10MΩ
