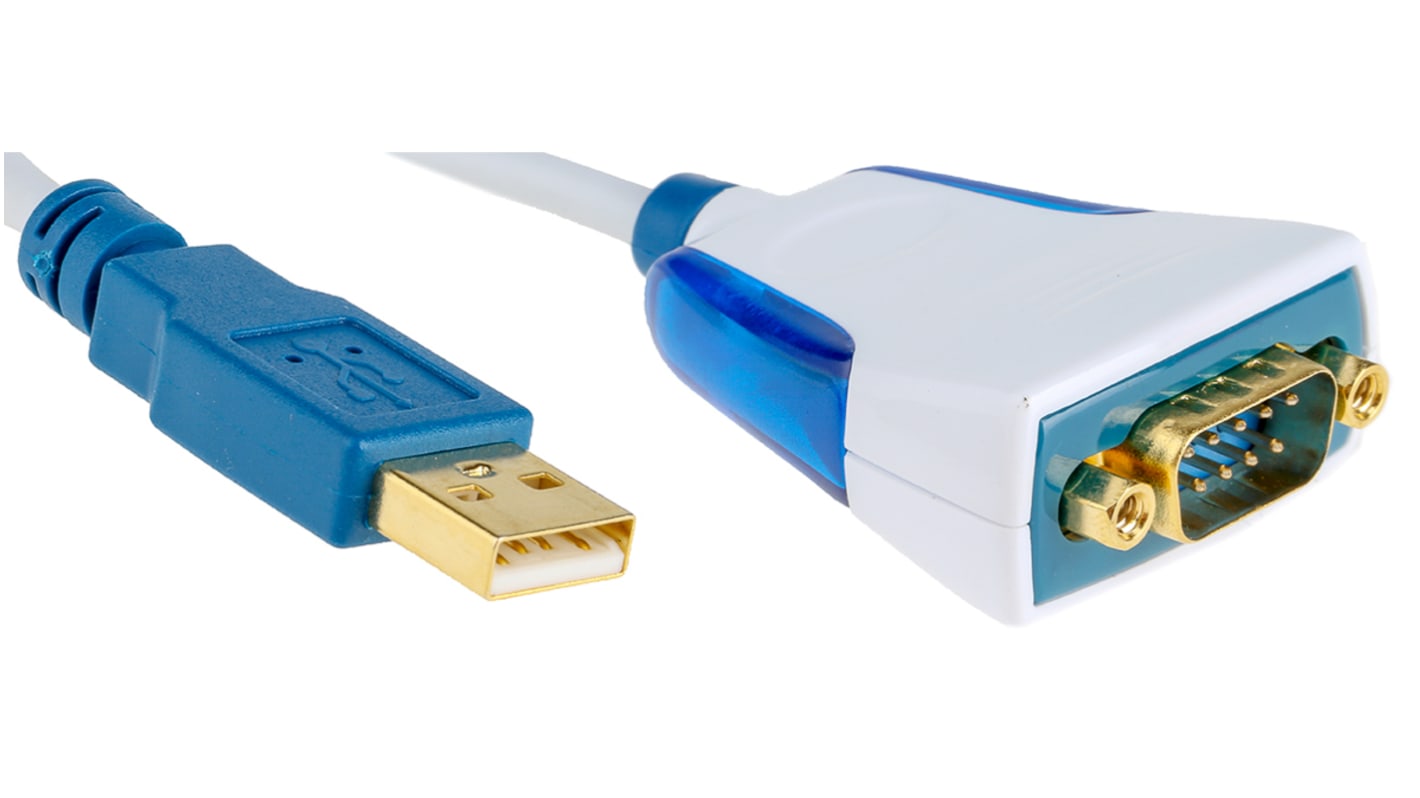

USB To Serial Rs232 Convertor 429-274

USB to RS-232 Evaluation Cables, FTDI Chip

This range of USB to RS-232 cables enables you to test the functionality of our FT232R chip before integrating it into your design. The cables are available in several lengths – 10 cm, 1 m and 5 m lengths and all with a standard DB9 connector. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux.

Applications

USB to RS232 Converter

Upgrading legacy peripherals to USB

USB Industrial Control

USB barcode Readers

USB Software/Hardware Encryption Dongles

More about the US232R-10 …

The FTDI US232R-10 is a premium USB to RS232 converter cable. It can also be used to evaluate the FT232R chip and drivers.
In comparison to more basic models, the US232R-10 features a white gloss finish. It also has blue LED lit sides to indicate TX and RX traffic. The connectors on the US232R-10 are also gold plated, for a high quality and durability.

What communication rates can it achieve?
The US232R-10 can deliver communication rates from 300Baud to 1MBaud.

Approvals
The US232R-10 is CE and FCC approved.

Specifications
Attribute
Value
Bus Type
RS232
Connector A
USB A
Connector A Gender
Male
Connector B
DB-9
Connector B Gender
Male
USB Standard
USB 2.0
Maximum Baud Rate
1MBd
