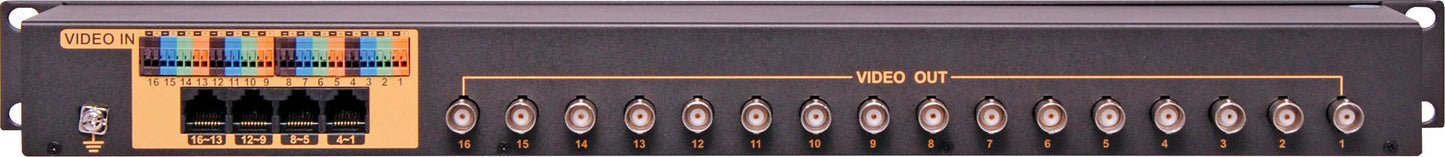

This rack mount passive distributor accepts up to 16 inputs from UTP baluns located up to 300m away (colour). Ideal for distributed CCTV systems. 16 x BNC outputs for connection to your DVR. UTP connection via spring loaded terminals. Requires no power.
Designed to work in conjunction with S 9244A UTP Tranceivers
Features
- 16 Terminal blocks or 4 x RJ45 to 16 x BNC.
- Built in high balanced mode of transmission for extra interference immunity.
- Transmit a full motion monochrome video signal up to 600M color video signal up to 300M.
- Video transmission only.
- Built-in impedance couple device + noise filter.
- Built-in surge absorber to reduce interference.
Specifications
- Video input port: 16 Port Terminal Block / RJ45 x 4
- Video output port: 16 Port (BNC Connector)
- Transmission distance: Mono.600m / Color 300m
- Cable: Twisted Pair CAT5
- Dimensions: 440 x 80 X 44 mm
- Weight: 1.48kg
