Voltage Regulators 10.8-13.2VDC To 5VDC Regulated Converter M7827
Voltage Regulators 10.8-13.2VDC To 5VDC Regulated Converter M7827
Regular price
$21.50
Regular price
Sale price
$21.50
Unit price
per
Taxes included.
Couldn't load pickup availability

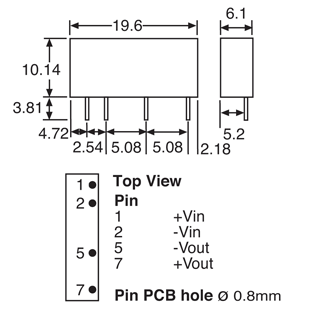

Industry standard pinout. Wide operating voltage range. Low ripple & noise. Auto short circuit protection. Low operating temperature. 10.8-13.2V DC to 5V DC.
Specifications
- Input voltage: DC 10.8-13.2V
- Output voltage: DC 5V
- Output current: 200mA
- Output regulation: ±0.5%
- Ripple & noise: <100mV p-p
- I/O isolation voltage: 1000V DC
- I/O resistance: >1GΩ
- Isolation capacitance: <80pF
- Efficiency: >50%
- Operating temperature: -25 to 70°C
