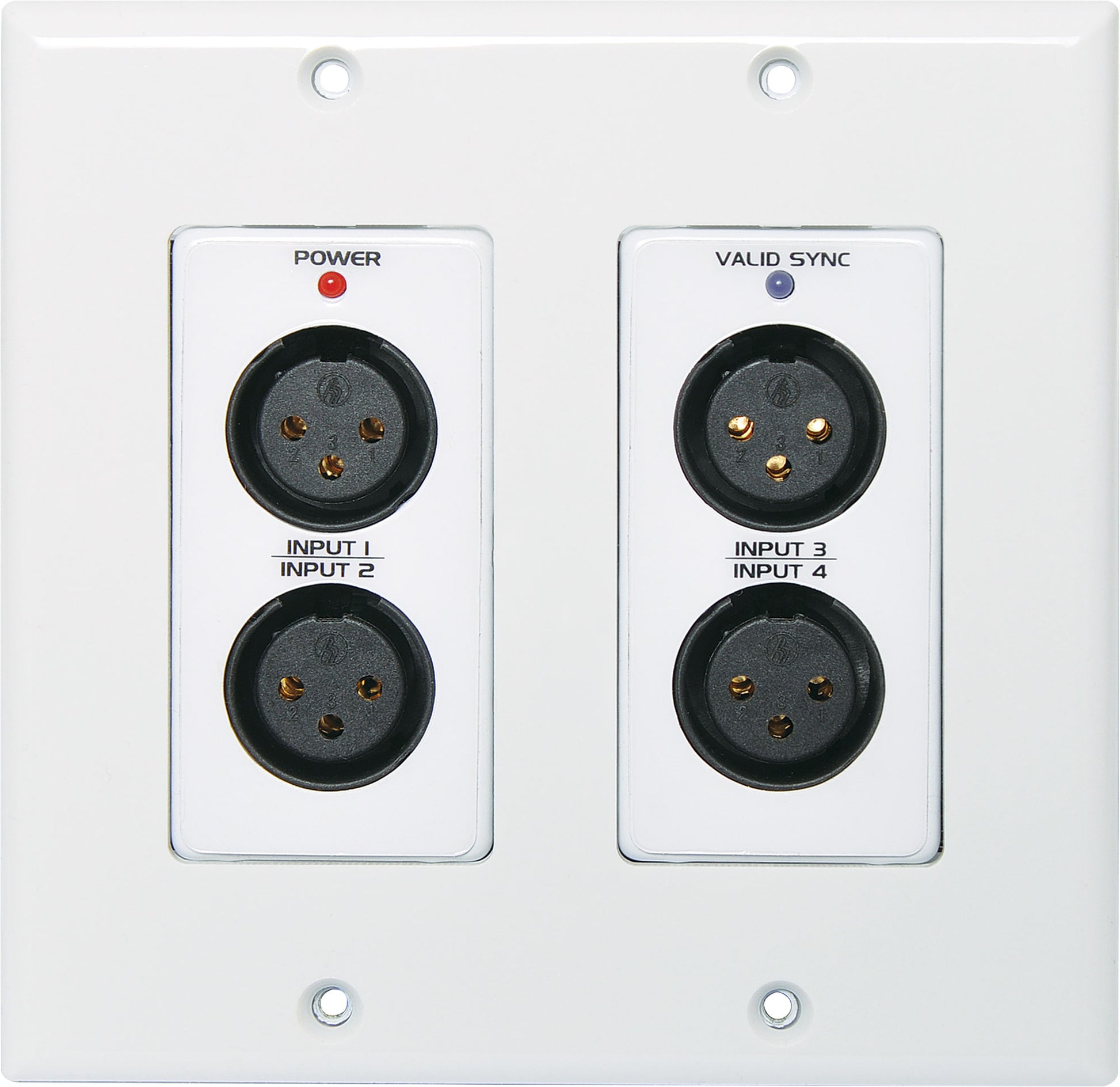

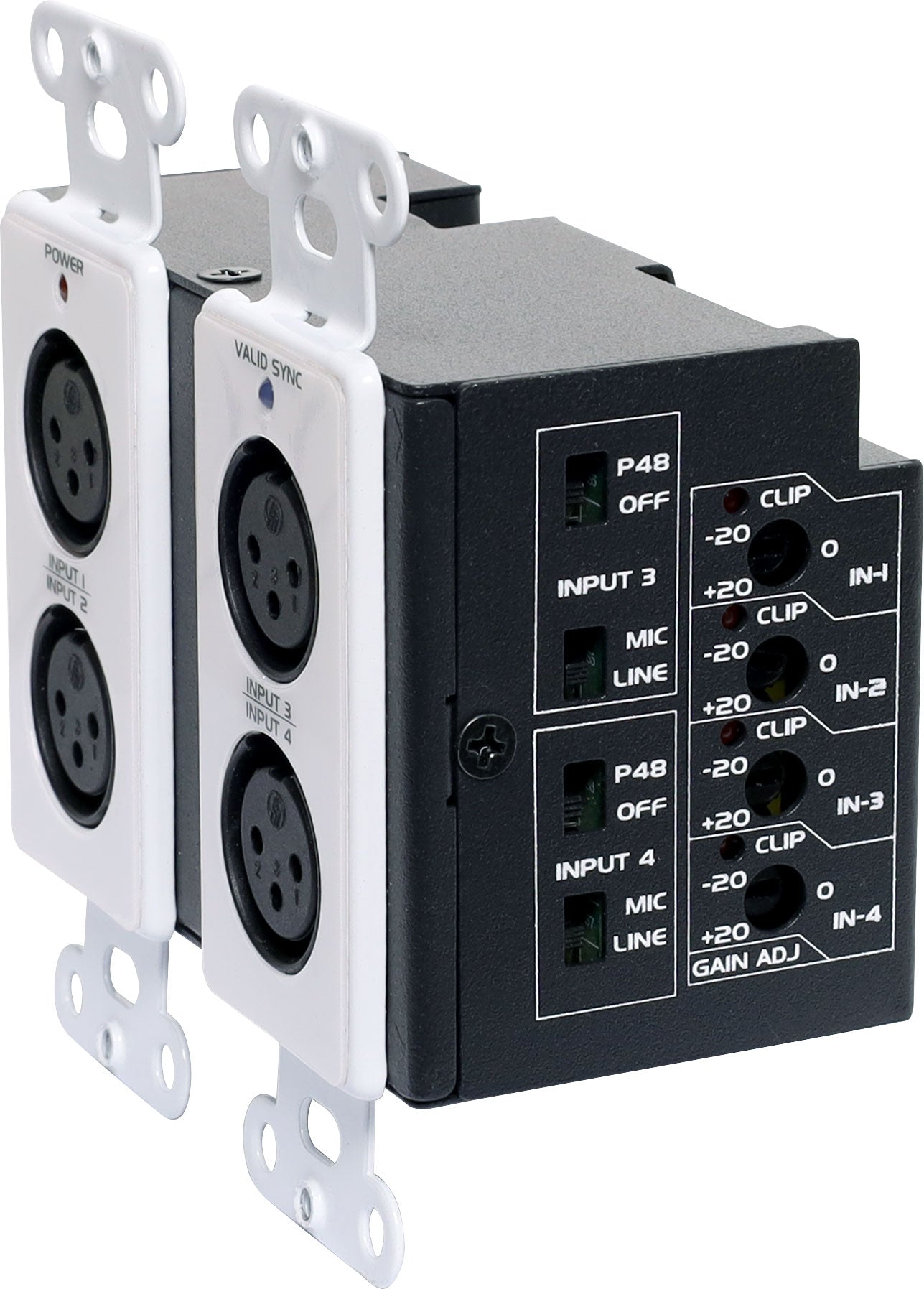

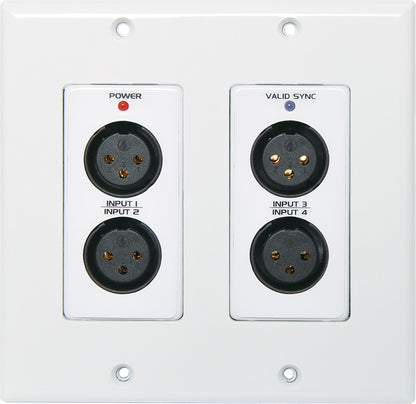

Wall Plate Dante Mic/Line 4 Input, 2 Output Dual A4816

This Dante Interface features 4 x Mic/Line Inputs and 2 x Line Outputs. Distributed audio signals over UTP cabling are becoming increasingly widespread in large building installations and multi-function venues.

 This product, used together with the rest in the range provide a connected solution for local zone inputs, feeding signals back to centrally located zone amplifiers. The system uses a proprietary standard called CSP which can be easily converted to the widely adopted Dante standard using the A 4830/A 4831 converter boxes. Powered by 24V DC input.

Features

• Four Mic/Line XLR Inputs on Front Panel

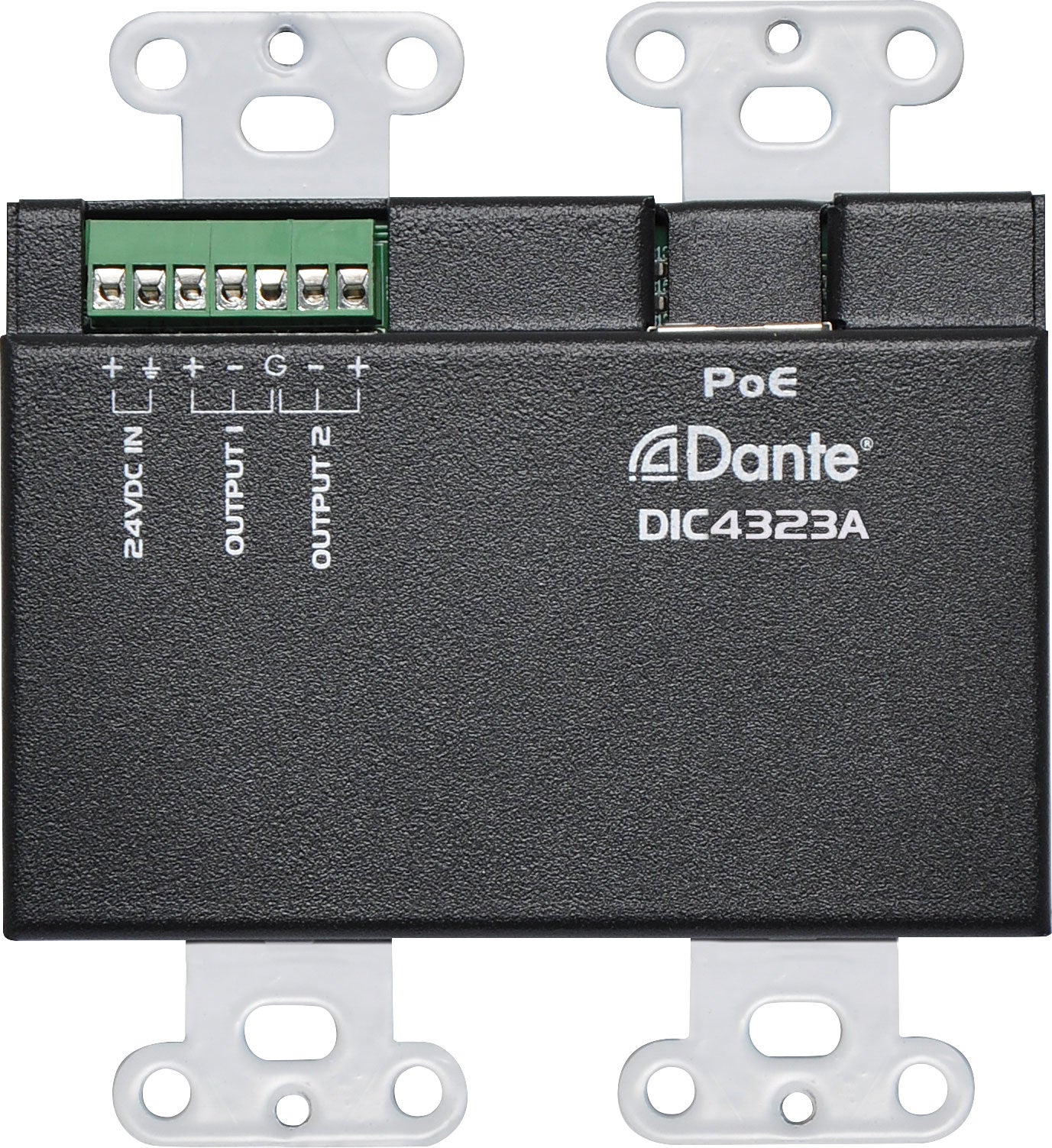

• Terminal Block for Two Audio Outputs on Rear Panel
• Converts Mic or Line Audio Signals to Dante network
• Mic or Line is Selectable for Each XLR Input
• Switchable 48V Phantom Power for Each Mic XLR Input
• Adjustable Mic/LIne Gain from ‐20 dB to +20dB for Each XLR input (Two Audio Signal Outputs from Dante Network)
• Balanced or Unbalanced Signal Outputs
• High Resolution 24 Bit for DAC and ADC
• Power over Ethernet (PoE) or 24VDC power supply
• Provides High Quality of Preamplifier for microphones
• Excellent Audio quality with low noise
