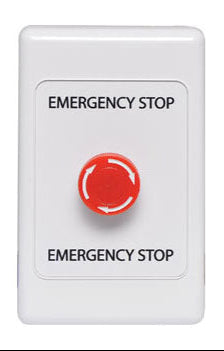

Wall Plate Fitted With Push/Twist Emergency Stop Switch S0160

Name: Wall Plate Fitted With Push/Twist Emergency Stop Switch S0160
Brand: Altronics
SKU: 9321758185605
Price: 37.95 AUD
Availability: InStock

$37.95

Sale Sold out

Taxes included.

Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect. IP65 Rated.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Specifications

Switch type: DPDT
Contact rating: 500mA @ 250V AC 1A @ 24V DC
Contact resistance: <50mΩ
Insulation resistance: >100MΩ
Dialectric strength: 1000V between poles
Electrical life: >50,000 cycles
Ingress protection rating: IP65
