Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode
Sleek Design, Superior Build
Experience exceptional audio with our sleek aluminium-encased device, featuring a 3.5" glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.
Stream Everything You Love
Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.
Superior Sound Quality
Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

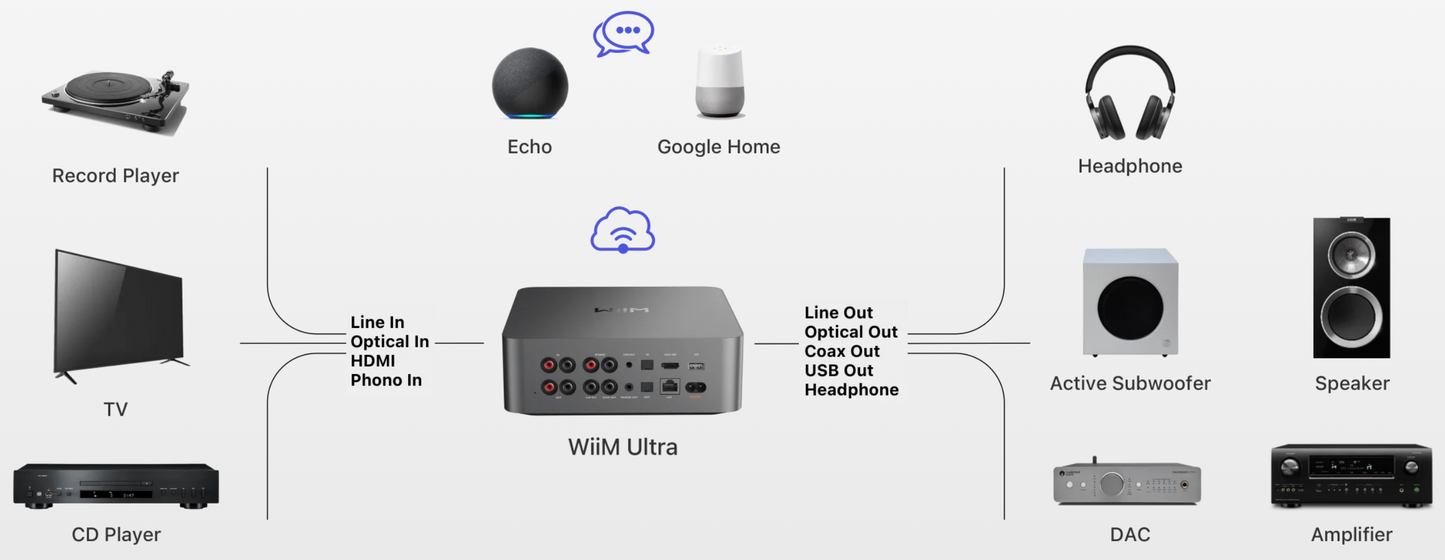

Connect with Ease
WiiM Ultra’s comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It’s designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.
Cutting-Edge Wireless Tech
Latest Wi-Fi 6E and BT 5.3 with two antennas offering rock solid Bluetooth or Wi-Fi audio streaming
Your Music Looks Great
Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customisable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.
Seamless Multiroom Audio
Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronise speakers, save your favourite tunes, set alarms, and customise settings, all from one central hub.
Customised Hi-Res Audio
Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalise your audio with advanced room correction and independent EQ settings tailored to your space.
Enhance Your Home Theater Experience
Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.
Specifications
Dimensions and Weight
Dimensions：8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm)
Weight：(3.13 lbs) 1.42 kg
Touch Display
Glass-covered 3.5" vibrant touchscreen display:
Controls
Volume knob, play/pause, setup, and more
LED
4 Colour RGBW LED indicates the device status
Audio Input
HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz
Audio Output
RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bit
Wireless to another BT, DLNA receiver
Performance
Line out：
Maximum output: 2.1V RMS
SNR: 121 dB (A-wt)
THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
FR curve:+/-0.05 dB
SNR: 121 dB (A-wt)
THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
FR curve:+/-0.05 dB
Headphone out：
300 ohms: SNR (119 dB), THD+N (-99 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)
EQ
24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ
Subwoofer Output
Comprehensive bass management
Adjustable crossover frequency, level, phase, and latency.
Adjustable crossover frequency, level, phase, and latency.
Power Supply
100-240V AC input, 50/60 Hz, 0.5A Max
Network
Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.
10M/100 Mbps LAN
10M/100 Mbps LAN
External Storage
Access personal media library and use it as a media server for other WiiM and DLNA devices,
Support FAT32, NTFS, and EXT4 file systems.
Support FAT32, NTFS, and EXT4 file systems.
Bluetooth
Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.
Supported Streaming Protocol
Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready
