Wireless Microphone System UHF Wireless Microphone System 2 Ch With Two Handheld Mics C8881B
Wireless Microphone System UHF Wireless Microphone System 2 Ch With Two Handheld Mics C8881B
Couldn't load pickup availability

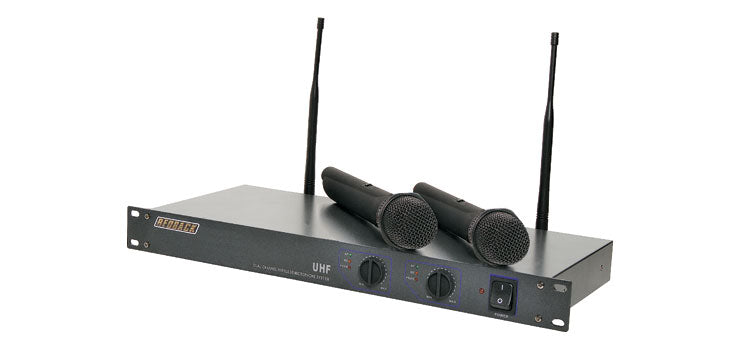

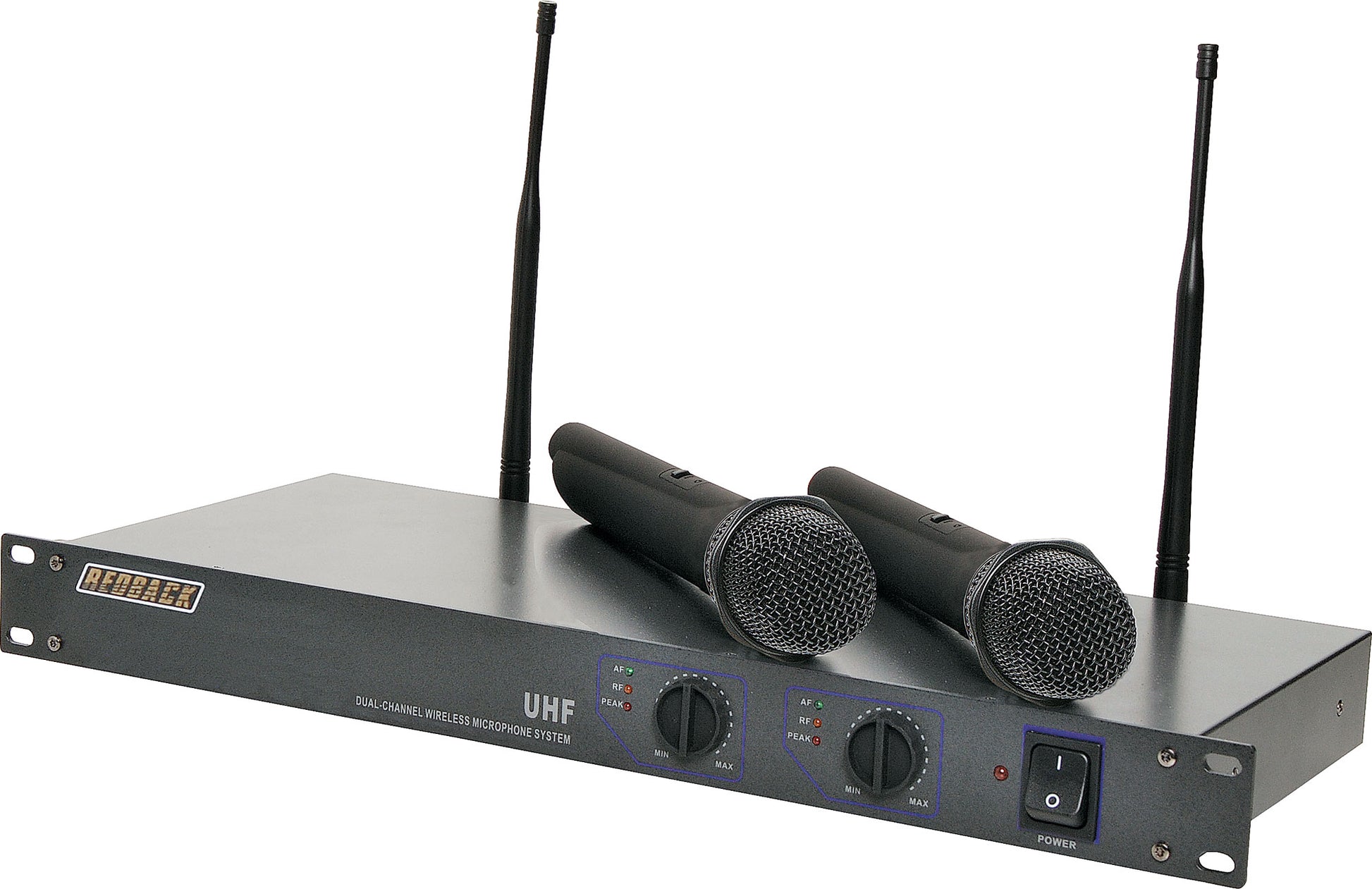

2 channel fixed frequency UHF wireless microphone systems, including two handheld microphones. Ideal for systems requiring the freedom of two independent wireless microphones at an economical price. The sturdy 19” rack mount cabinet is fitted with two fixed frequency wireless receivers. The miniaturised SMD construction and unique shielding technique, plus individual squelch control, ensures excellent performance and minimal external interference.
Each receiver features an independent front panel level control, AF, RF and peak indicators. Outputs are provided for each channel via 3 pin XLR, plus a mixed output via 6.35mm jack. The aerials are removable for remote mounting if required. Includes receiver and two handheld microphones. A range of 50m or more is obtainable in ideal conditions. The perfect system for wedding ceremonies, DJs, sporting clubs, schools, restaurants and function centres.

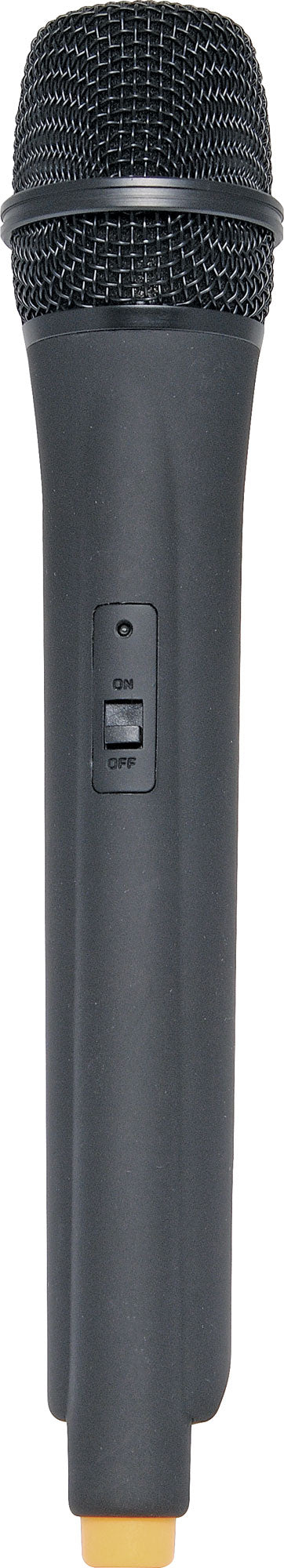

Includes 2 x Handheld Transmitters
Note: Includes 4 x AA batteries (2 per transmitter)
Features
- Operating frequencies 520 / 524.30MHz
- 19” 1RU rack mount case
- Steel enclosure construction
- Removable aerials

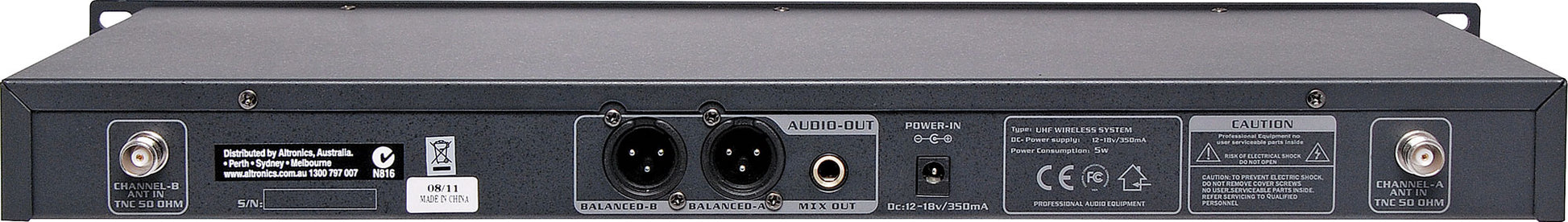

- Individual 3 pin XLR outputs
- Mixed 6.35mm jack output (1m cable included)

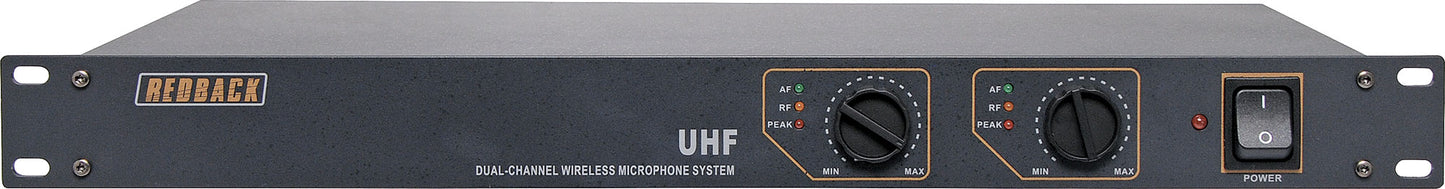

- Front panel level controls
- Tone squelch circuit for noise reduction
- RF, AF & peak signal LEDs
- Range up to 50m in ideal conditions
Specifications
Receiver
- Carrier frequency: 520MHz & 524.30MHz UHF band
- Frequency stability: ±0.005%
- Oscillator: PLL Synthesised
- Receiving sensitivity: 10µV over 80dB S/N ratio
- Image and spurious rejection: 80dB minimum
- Selectivity: >50dB
- Modulation mode: FM
- IF Frequency: 1st: 243.95MHz, 2nd: 10.7MHz
- Tone signal: 32.768kHz
- Signal to noise ratio: >94dB, at 20kHz deviation and
- 60dBµV antenna input
- Audio frequency response: 80Hz to 16kHz
- Total harmonic distortion: less than 1.0% (at 1kHz)
- Audio outputs: Balanced and unbalanced outputs for single channel
- Switching diversity (Mic = 20dB / Line = 0dB)
- Power supply: 12V DC
Mechanical
- Dimensions: 480W x 170D x 45H mm
Transmitter
- Carrier frequency range: 566 - 575MHz UHF band
- Frequency stability: ±0.005%
- Microphone capsule
- Handheld: Dynamic unit
- Beltpack: Lavalier condenser
- Battery: 3V DC (2 x 1.5V AA batteries) or 2.4V DC (2 x 1.2V AA rechargeable)
