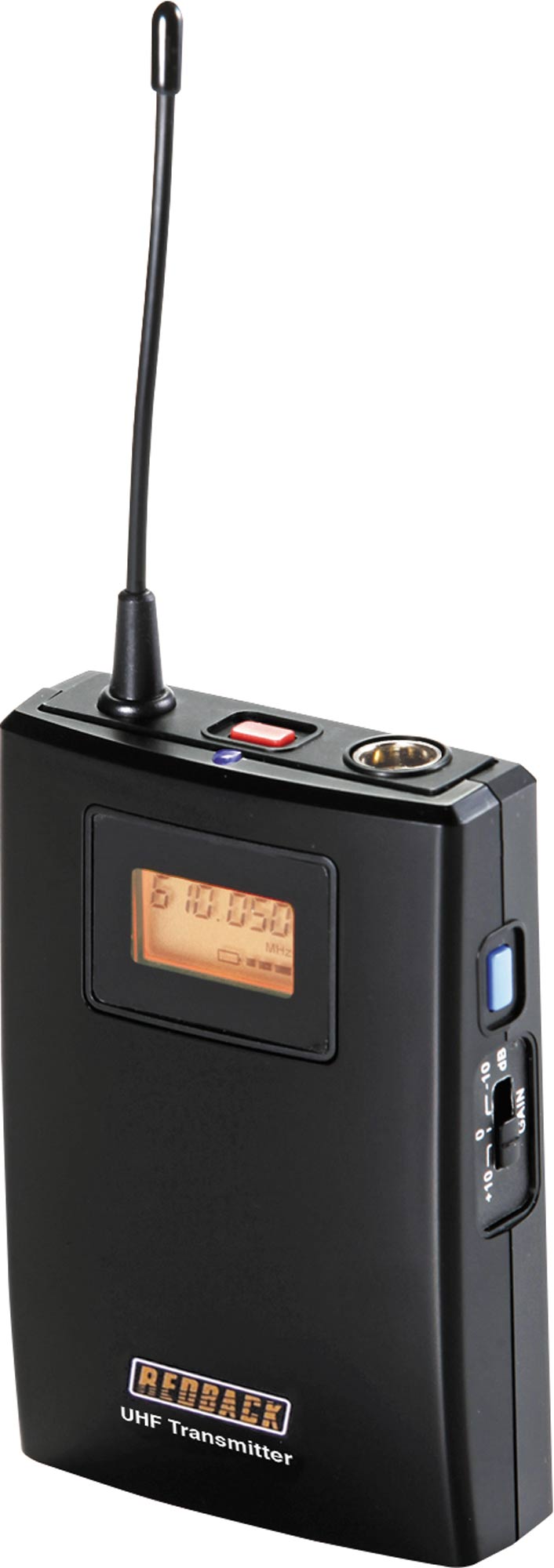

Wireless Microphone System Wireless UHF Beltpack Transmitter 700 Channel C8893D

Name: Wireless Microphone System Wireless UHF Beltpack Transmitter 700 Channel C8893D
Brand: Altronics
SKU: 9321758193501
Price: 185.00 AUD
Availability: InStock

$185.00

Sale Sold out

Taxes included.

Belt pack transmitter ideal for use with the Redback 700 channel receiver unit (C8890D).

Note: Belt packs are not supplied with a mic. Lapel mic to suit is C8907.

Note: Requires 2 x AA batteries (sold separately)

Features

Compact & lightweight
Fitted with 3 pin mini XLR socket
On / Off / Mute switch
Gain control
Requires 2 x AA batteries (either alkaline or rechargeable).

C8890D Instructions

Specifications

Carrier Frequency Range: UHF band 520-550MHz
RF Power Output: 10mW (max.)
Spurious Emission: More than 60dB below carrier frequency
Frequency Stability: Within ±0.005% with PLL synthesised controlled
Maximum Deviation: ±48kHz within limiting compressor
Operating Voltage: DC 1.5V x 2 AA or rechargeable
Current Consumption: Approx 120mA ± 10mA(max.)
