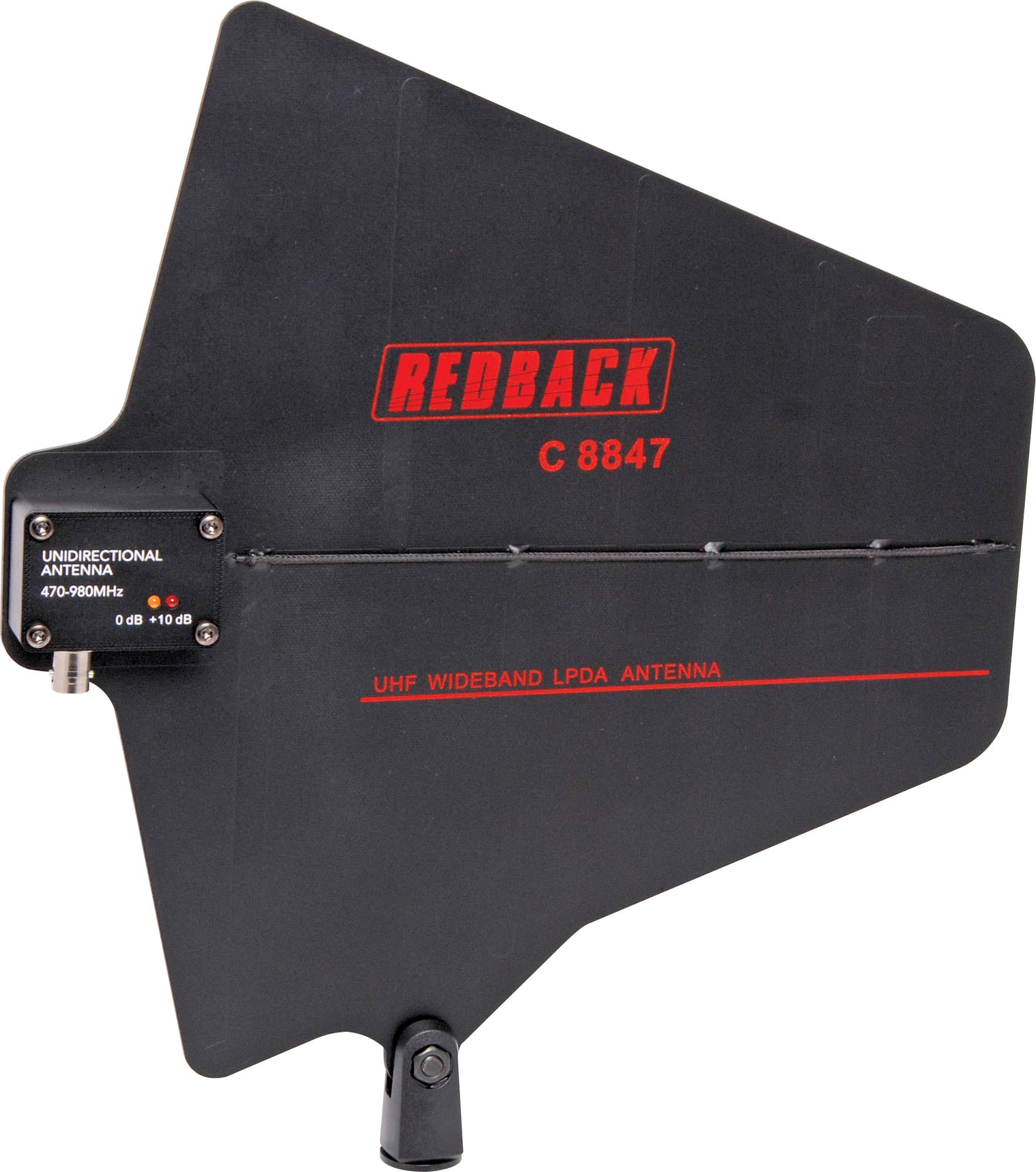

Wireless Microphone Systems Log Periodic Dipole UHF Array Paddle Antenna Pair C8847
Wireless Microphone Systems Log Periodic Dipole UHF Array Paddle Antenna Pair C8847
Couldn't load pickup availability
A wideband 470 to 980MHz frequency antenna pair for improving reception quality and range. It is ideal for installations using wireless mics, tour guide systems or in ear monitoring over long distances. Suitable for stand mounting, the antenna may also be suspended from the ceiling or wall mounted. C 8847 includes booster. 10dBi gain with uni-directional design. Powered by 10-15V injection from the receiver unit. BNC connection.
Size: 273 x 273 x 26mm.Suitable for both 3/8" and 5/8" threads. Connector types: BNC, jack impedance: 50 Ω Power requirements: 10 to 15 volts DC offset from the coaxial connection, 50 mA Receiving mode (3 dB beamwidth) : 70 Angle Third-order overload pay cut point (OIP3) : > 30 dBm Antenna gain (axis) : 5.8 class: : dBi The signal gain + 10 dB (plus or minus 2 dB) : Size: 283 mm x 270 mm x 25 mm (height x width x depth) Mounting: 5/8" mini microphone type thread
Specifications
- Connector types: BNC, jack
- impedance: 50 Ω
- Power requirements: 10 to 15 volts DC offset from the coaxial connection, 50 mA
- Receiving mode (3 dB beamwidth) : 70 Angle
- Third-order overload pay cut point (OIP3) : > 30 dBm
- Antenna gain (axis) : 5.8 class: : dBi
- The signal gain + 10 dB (plus or minus 2 dB) :
- Size: 283 mm x 270 mm x 25 mm (height x width x depth)
- Mounting: 5/8" mini microphone type thread
