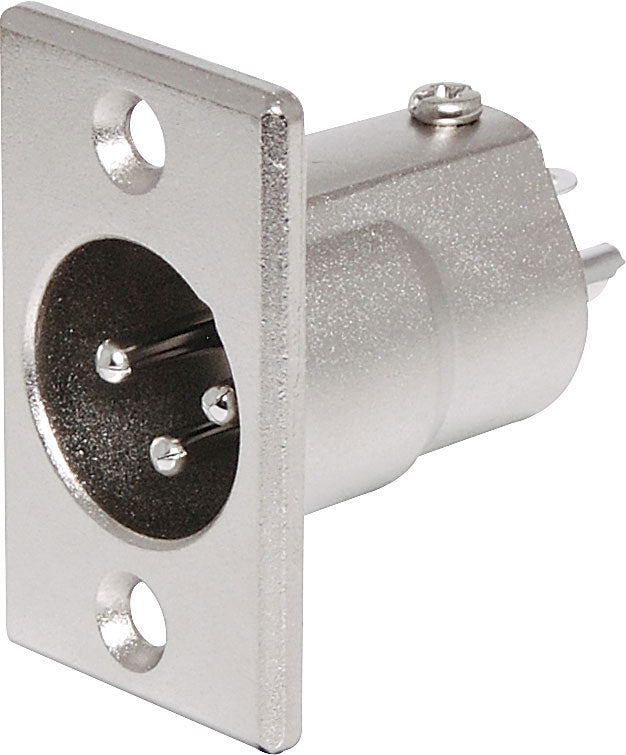

XLR 3 Pin Male Chassis Mount AC3MPNZ P0906

AMPHENOL (formerly Alcatel) connectors are ideal for use in high performance audio applications, including mobile PA use. They represent a no-compromise approach to connector technology, with rugged construction, secure mechanical characteristics and low induced noise levels. Amphenol Part No.: AC3MPNZ.

Features

• Zinc die cast shell.
• The P size housing is the original wide flange front mounting XLR connector.
• Solder bucket connections.
• Precision machined or stamped contacts (3 pin only).
• Leading first mate last break socket contact.
• Positive latch lock system.

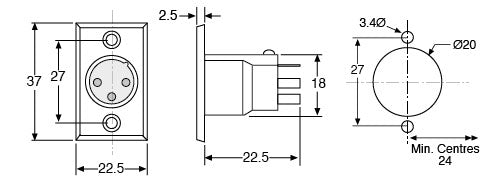

Dimension Drawing
