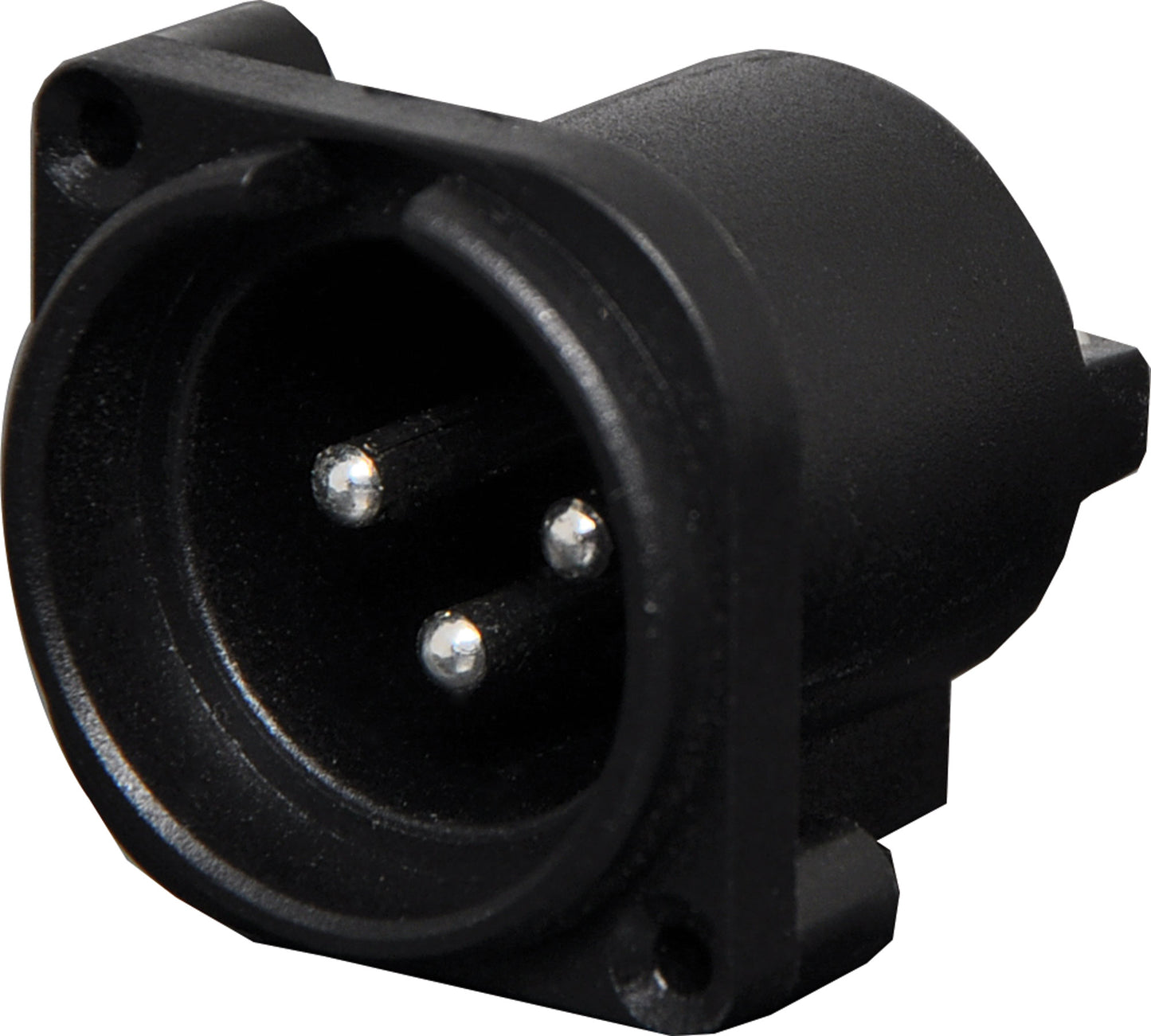

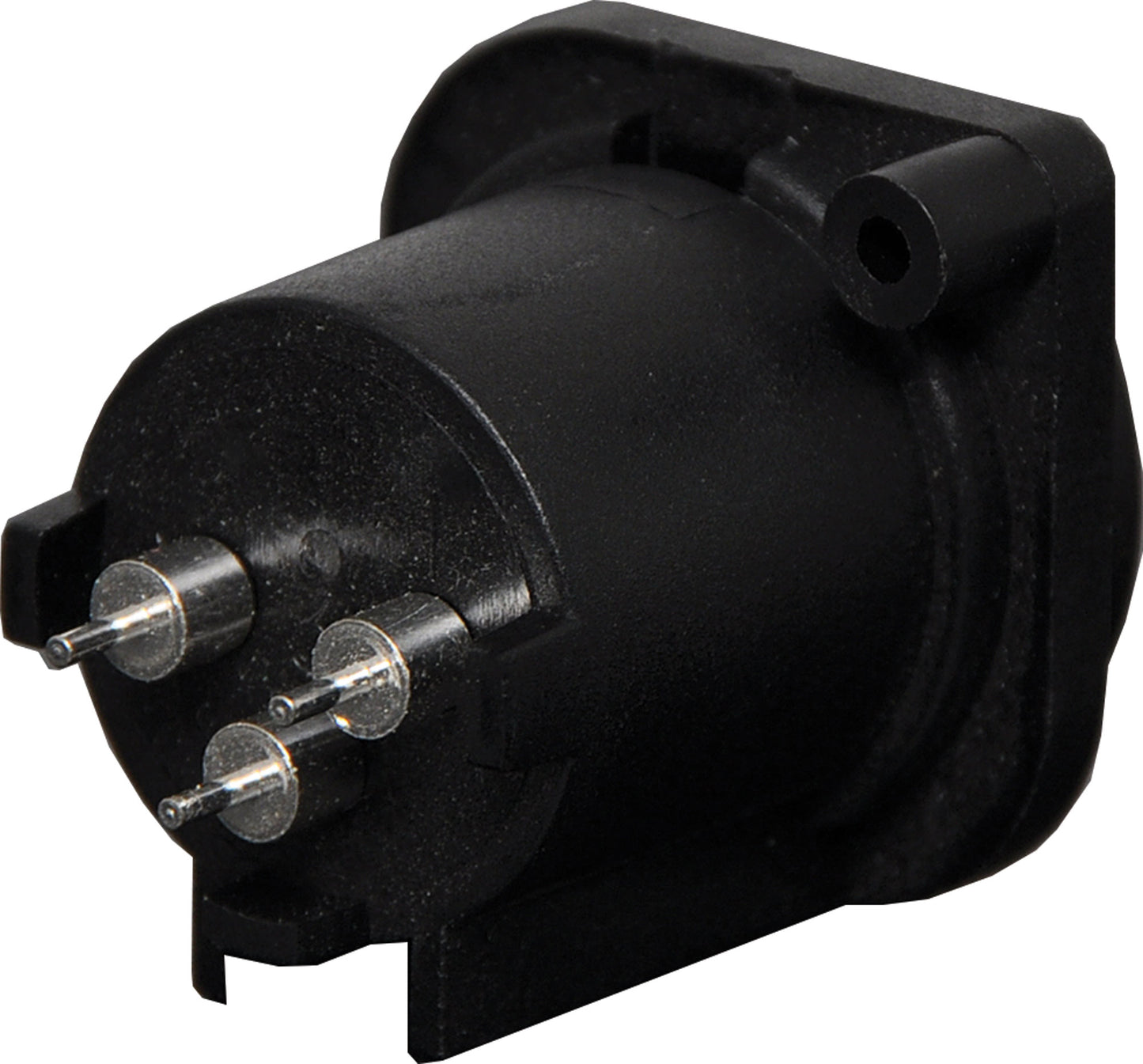

XLR 3 Pin Male Horizontal PCB Mount P0871

XLR 3 Pin Male Horizontal PCB Mount P0871

Regular price $3.05
Regular price Sale price $3.05
Sale Sold out
Taxes included.

Straight pin PCB mount XLR connectors. These have the same mounting depth as our P 0221 and P 0222 PCB mount RCA sockets, making these ideal for audio input boards.

Features

  • Reduced and compact size (mounting pitch: 20mm)
  • Housing is made of thermoplastic material with Glassfiber
  • Vertical and horizontal P.C. Board mounting are available

Specifications

  • Life: 10,000 Cycles Min.
  • Insertion / Withdrawal Force: 3~5 kg·f/cm
  • Contact Resistance: 20mΩ(Max.)
  • Insulation Resistance: Over 100MΩ
  • Dielectric Withstanding Voltage: 500V AC
  • Contact Rating: 25A, 48V DC
