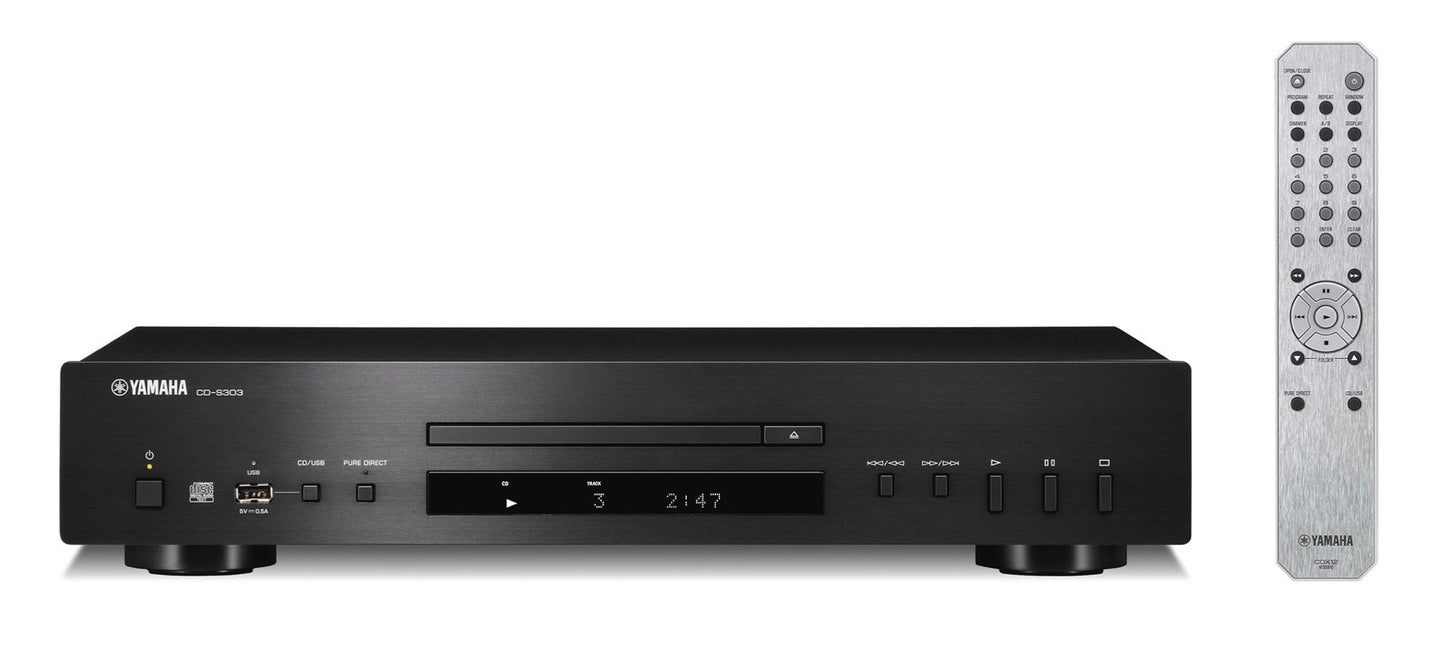

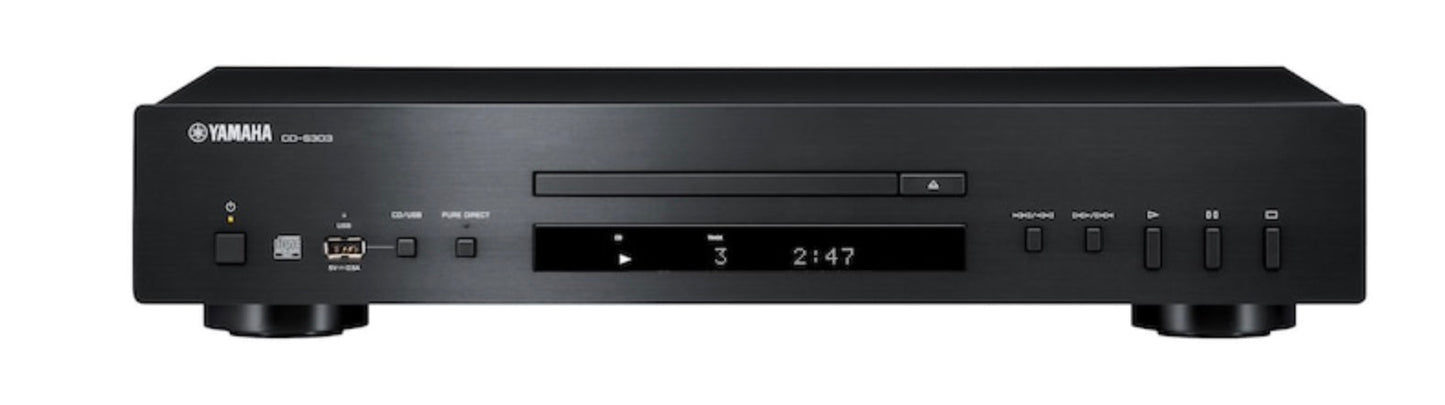

Yamaha CD-S303 Compact Disc Player Single Draw - Black

SKU: CD-S303B

Price:
$679

This high-quality CD player is easy to operate and includes special features like Pure Direct, Intelligent Digital Servo, USB and MP3/WMA/LPCM/FLAC compatibility.

  • Pure Direct
  • Extremely sophisticated circuitry and layout
  • Short signal paths
  • High-quality parts
  • High performance DAC for high conversion precision with low noise
  • Laser pickup floating mechanism
  • Intelligent Digital Servo
  • MP3, WMA, LPCM and FLAC compatibility
  • CD-R/RW disc playback compatibility
  • Numerous convenient playback functions

Inheriting many of the sound quality features of the high-end CD player components, the CD-S303 CD player delivers sound that will satisfy devoted music fans. In addition to CDs, it also provides high-quality play of music files stored on USB memory devices via a USB port on the front panel.

Yamaha technicians devoted a great deal of time and effort to designing the overall interior layout of parts and circuit boards, a factor that significantly affects sound quality. As a result, the power supplies for the motor drive, display and USB sections, as well as the digital and analog sections, are individually isolated, eliminating electromagnetic interference among them. To achieve ideal weight balance for stable performance, the drive mechanism is located in the center of the unit.

The highly logical and symmetrical internal layout of parts and circuit boards are designed to keep the signal paths on each board as short as possible. This purposeful design also keeps the paths between sections straight and short, minimising the chance of signal loss or interference; something not easy to achieve.

The CD-S303 offers Pure Direct, which is the same popular feature included in Yamaha amplifiers and receivers. By pressing the button on the front panel or on the remote control, it shuts down the digital audio output and turns off the display. This achieves the lowest possible noise interference and, therefore, the highest sound quality of the analog audio output.

Each of the individual elements in a CD player influences the sound quality, which is why Yamaha puts a great deal of effort into the selection and matching of parts and materials. A high-grade acoustic capacitor, a new low-noise, high-gain bandwidth op amp and the use of damping material under the transformer and around the signal cables are just a few examples of the Yamaha commitment to great sound quality. In short, the CD-S303's internal sophistication is on a level generally found on much more expensive models.

Utilising a 192 kHz/24-bit DAC, the high-performance D/A conversion system takes full advantage of the digital technology refined by Yamaha over a period of many years, ensuring excellent conversion precision, S/N ratio and dynamic range.

The USB port on the front panel gives you an easy way to enjoy high-quality sound from MP3, WMA, LPCM, AAC or FLAC digital music files stored on USB memory devices. You can also play files recorded on CD-R/RW discs.

The laser pickup is isolated on a floating mechanism so its delicate operation cannot be affected by vibration.

Conventional tracking servo circuitry cannot completely overcome errors caused by a warped disc, dust and other defects. This system uses a dependable DSP (Digital Signal Processor), exclusive for CDs, to monitor the signal, adjusting pickup tracking and focus, as well as spindle motor speed, to compensate for any problems.

Information about the currently playing CD is shown right on the CD player’s display. The 3-mode CD Text display shows the CD’s title, the artist’s name and the title of the track.

Program Play (Audio CDs Only)

It’s extremely easy to program the tracks you want to hear in any order. You can clear the program at any time with a single touch.

Other Notable Features

  • 10-Key direct track and direct access
  • Random play
  • Repeat play (full/single)
  • 3-Mode time display
  • 4 Illumination levels
  • Last track resume
  • Ready Mode
  • Play mode memory

CD-S303 Owner's Manual

CD-S303
Type Single
Disc Compatibility CD, CD-R/RW
Signal-to-Noise Ratio 105 dB (CD)
Dynamic Range 96 dB
Harmonic Distortion 0.003% (CD)
Frequency Response 2 Hz-20 kHz (CD)

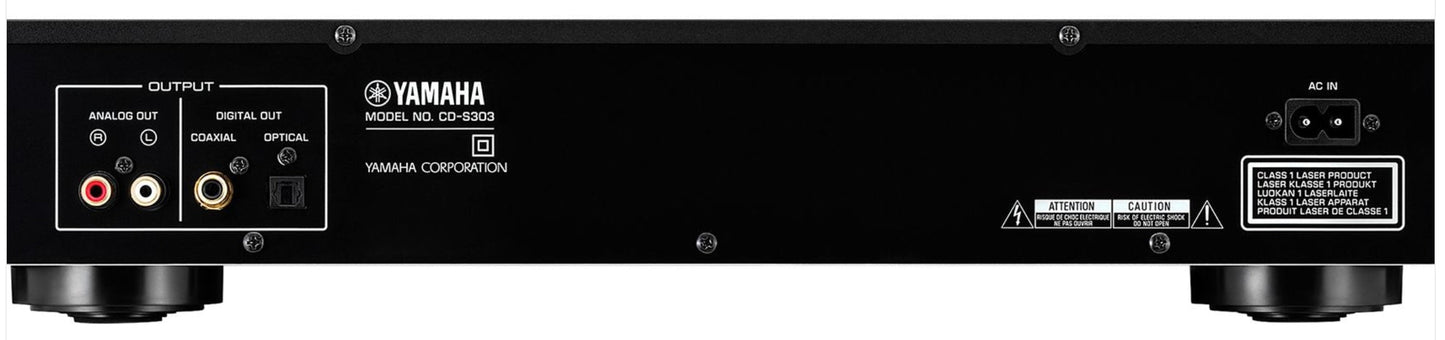

Output Optical, Coaxial and Analog RCA
Dimensions (W x H x D) 17 1/8" x 3 3/8" x 10 1/4"
Weight 4kg
