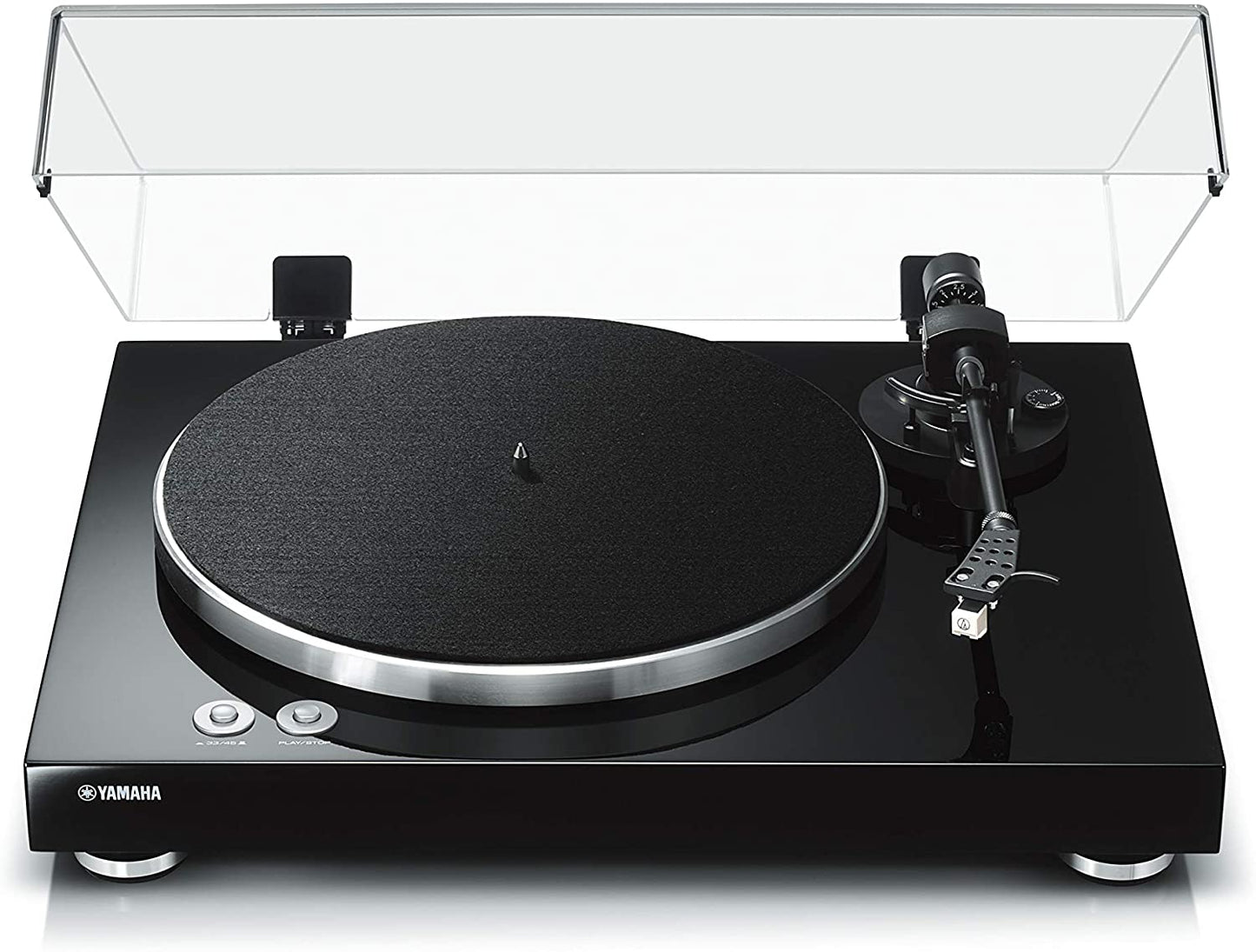

Yamaha TT-S303 Turntable with Switchable Phono/Line Output & Belt Drive, Black

Save $54
SKU: TT-S303B

Price:
$595 $649

Enter a world of vinyl with the Yamaha TT-S303 turntable. The straight tonearm and rigid body deliver authentic sound from old and new vinyl collections.

  • Straight tonearm contributes to sound transparency and openness
  • Belt-drive turntable
  • Switchable Phono and Line output
  • Authentic Hi-Fi design

Turn your listening experience on its head. This turntable design has undergone rigorous tests to ensure the most faithful reproduction of sound - the way music was made to be heard.

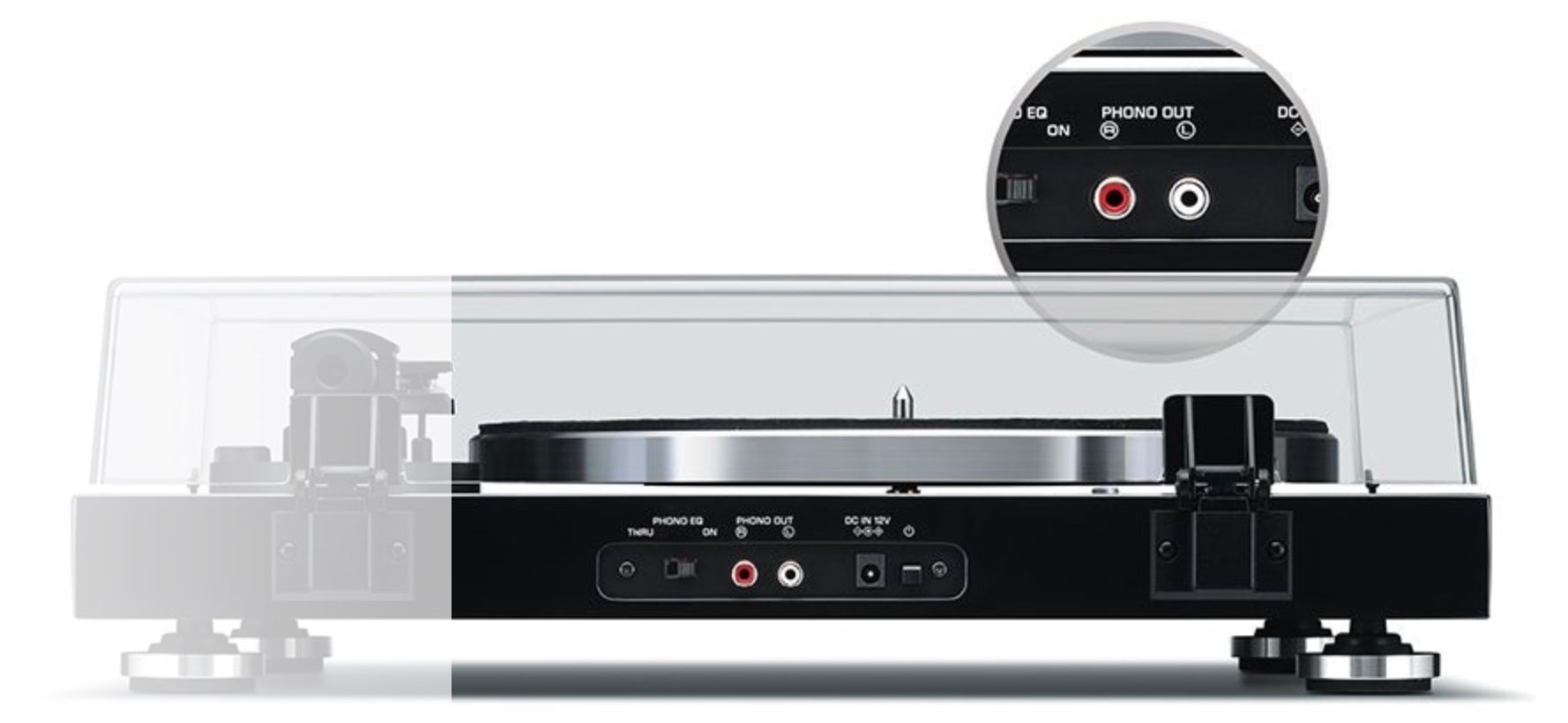

Built-in Pre-amp

Head-spinning simplicity. Designed with a built-in phono EQ amplifier, you have the option of connecting to a line input on an amp without a phono stage, or even to active speakers!

Alternatively, if you want to utilise the phono stage of your amplifier, switch the TT-S303 to phono output mode for the perfect pairing with your favourite amp.

There's nothing like the nostalgic sound of vinyl to connect you with the music.

Experts in sound, Yamaha boasts an enviable back-catalogue of Hi-Fi products that have shaped the way we listen to music. Some products have gone on to achieve iconic and even legendary status in Hi-Fi circles - touted for their quality, innovation and trademark Yamaha sound.

The TT-S303 signals a return of the Yamaha turntable - drawing inspiration and expertise from the company's unsurpassed musical roots.

The TT-S303 was designed to match the classic look and aesthetic of Hi-Fi components.

Whether paired with a stereo amp or receiver, add a turntable to your setup to enjoy both classic and modern vinyl collections.



Turntable Drive Method Belt drive
Motor DC motor
Rotation Speed 33-1/3 rpm, 45 rpm
Rotation Speed Variation ±2%
Wow And Flutter 0.2%
Platter Aluminium die-cast (Diameter 30 cm)
Output Level 140 mV (-17 dBV, with RIAA EQ), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Signal To Noise Ratio 67 dB or higher (A-weighted, 20 kHz, LPF)
Tonearm Tonearm Static balance straight tonearm
Effective Arm Length 223.5 mm
Overhang 19 mm
Stylus Pressure Adjustment Range 0-4 g
Acceptable Cartridge Weight 15.5-19 g (including headshell)
Attached Cartridge Cartridge Type MM type
Output Voltage 2.5 mV (1 kHz, 3.54 cm / sec)
Stylus Pressure 3.5 ± 0.5 g
Cartridge Weight 5.0 ± 0.3 g
Cartridge Height 17.0 ± 0.7 mm
Head-shell Weight 10 g (including screws, nuts and wires)
Audio Specifications Output Terminal RCA: 1 (PHONO)
General Power Consumption 1.5 W
Standby Power Consumption 0.1 W
Dimension (W×H×D) 450 x 136 x 368 mm; 17-3/4” x 5-3/8” x 14-1/2”
Weight 4.8 kg; 10.6 lbs.

Owner's Manual
