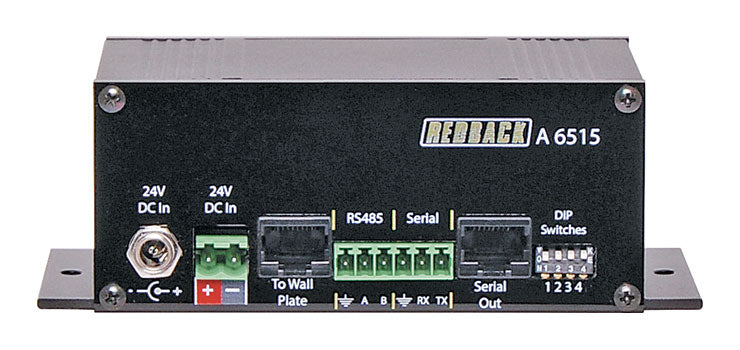

Designed to be used in conjunction with Redback Touch programmable touchscreen wallplates, as a standalone system or as an expansion hub for the A 6505A, this control hub consists of 2 high current (16A) relays with isolated sets of voltage free contacts that close on operation.
When used with a Redback Touch wallplate, the connection to the wallplate is via Cat5/6 cable up to 50m away. All commands from the programmed plate are then transported to this hub and the appropriate RS232/485 command signal is then output to the corresponding pluggable terminals. This could be used for controlling an AV system in a classroom, lecture theatre, board room etc. The serial outputs could be used to control a projector and amplifier. Requires 24V DC power which in turn powers the connected wallplate.
Size: 75W x 133D x 47Hmm.
The relay hub can be used in three ways:
1. Direct connection via Cat5/6 UTP cable to a Redback Touch wallplate, which is programmed to control relay activation.
2. As an expansion to the A 6505A hub, increasing the total number of relay contacts from 3 to 15. In this configuration, one of the serial outputs of the A 6505A would be used to control the A 6510. These hubs should be located as close together as possible.
3. As a standalone serial controlled relay hub for use with any third party system utilising RS232/485.
Input Connectors
Power connection (24V DC): 2.1mm DC socket, Euroblock terminal
Data: RJ45 8P8C
Output Connectors
Relay (1-2) Switched Out: Screw Terminals
NOTE: Relays rated for low power, typical 24V DC switching
Mechanical
Dimensions: 75W x 133D x 47H.
Current Draw: 30mA (idle) 80mA (Max)
Weight:0.19kg
