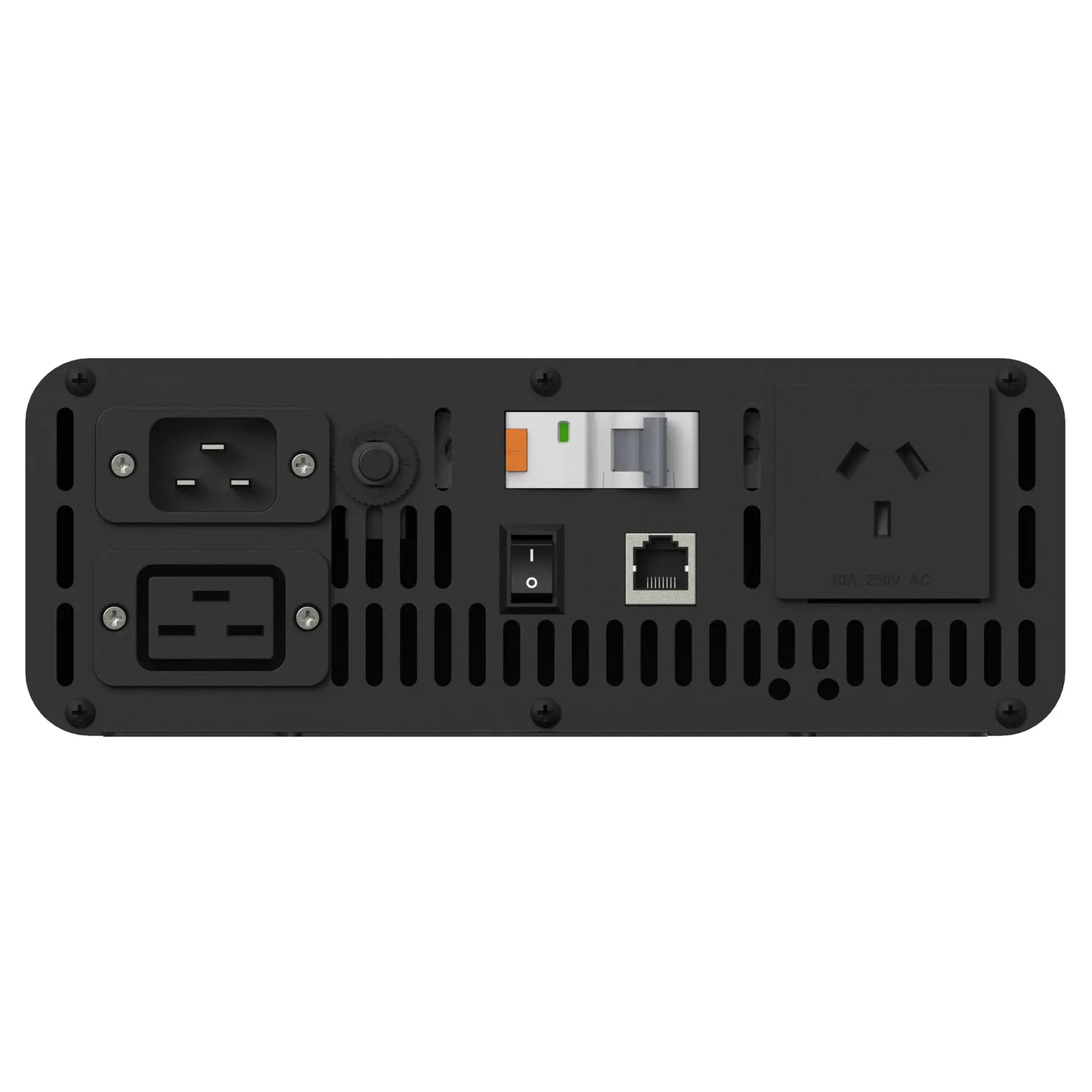

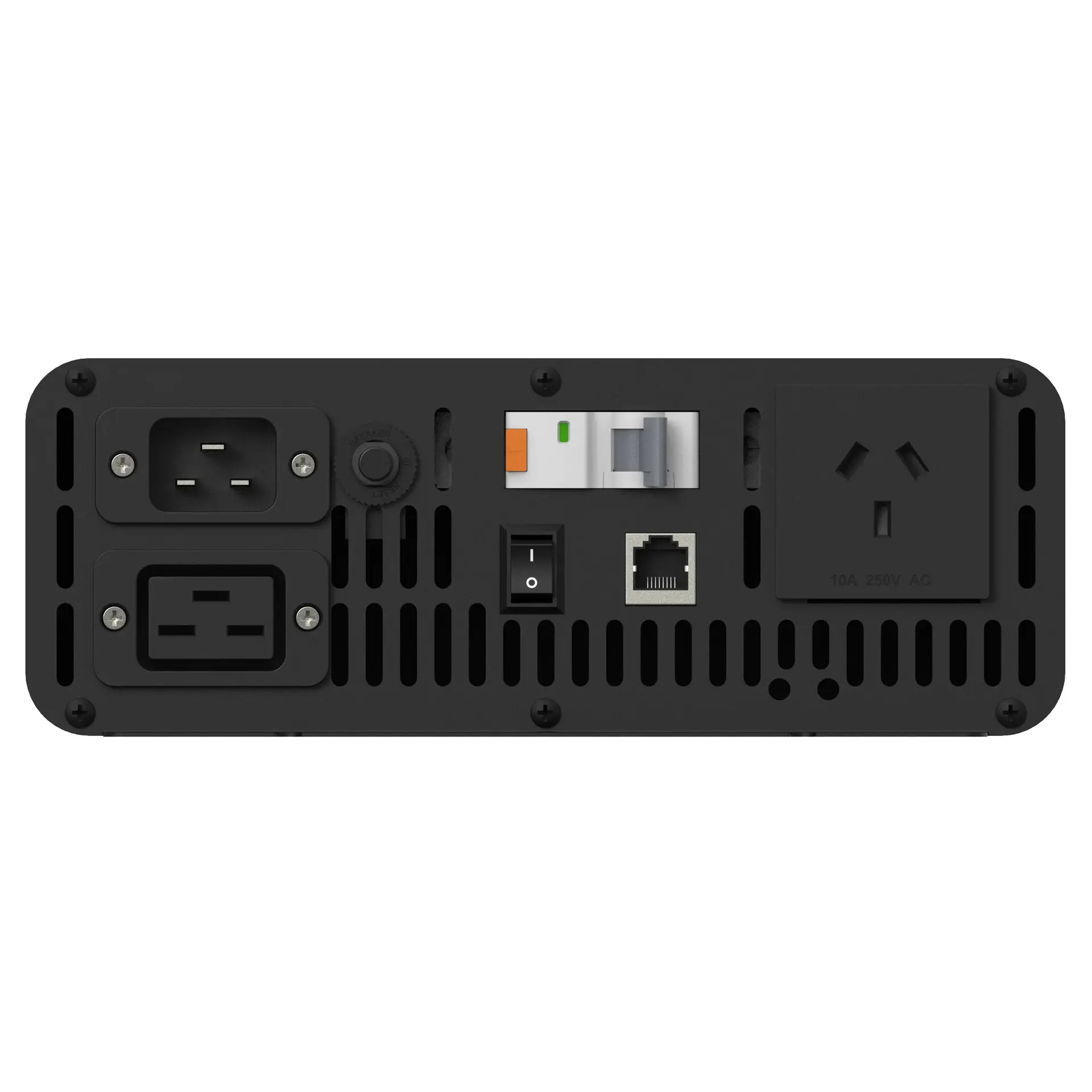

3000w 12v Dc To Ac Pure Sine Wave Power Inverter With Ac Transfer M8004
3000w 12v Dc To Ac Pure Sine Wave Power Inverter With Ac Transfer M8004
Available in 4-8 Days
Couldn't load pickup availability
This compact inverter delivers a pure sine wave AC output, ideal for powering demanding loads such as appliances with switchmode power supplies (including computers, displays, and game consoles) and voltage-sensitive devices like medical equipment. Perfect for use while camping, boating, or in remote locations where standard 240V mains power is unavailable.
An integrated automatic AC transfer switch ensures seamless switching between mains and inverter power, providing uninterrupted operation for connected appliances. The inverter features a fully isolated design with RCD for enhanced electrical safety and will automatically reset after resolving conditions such as over-voltage or overheating. It’s housed in a durable aluminium case with flange mounting points and includes a built-in cooling fan for reliable performance.
Features:
- Isolated design for maximum electrical safety
- Pure sine wave output
- Automatic AC transfer
- RCD Safety Switch
- Certified to Australian Standard AS/NZS 4763.2011
- DC/AC isolated design
- Safety authority tested for reliable & safe operation
- Over temperature, over voltage, over load and short circuit protection
- Low voltage cut off
- Excellent voltage regulation
- Binding post connection to battery
- Temperature controlled cooling fan.
WARNING!
It is recommended that all wiring be done by a certified technician or electrician to ensure adherence to the applicable electrical safety wiring regulations and installation codes. Failure to follow these instructions can damage the unit and could also result in personal injury or loss of life.
Specifications:
- Output power: 2000W
- Peak power: 4000W
- Input Voltage: 12V DC
- Input Range: 10-15
- Low Voltage Protection: 10.0V ±0.3
- Over Voltage Protection: 15.5V±0.3
- Recovery Voltage: 12.8V±0.3
- No-load current: 0.6A
- Overload protection: 110%
- AC Protection: 16A breaker
- Output voltage: 240V AC ±10%
- Output frequency: 50Hz ±0.3Hz
- Output waveform: Pure sine wave
- Over heating protection: 80° ± 5°
- Waveform THD: =3%
- Conversion efficiency: 90%
- Cooling method: Fan cooling
- Dimensions: 320x242x88mm
- Product Weight: 5.0kg
