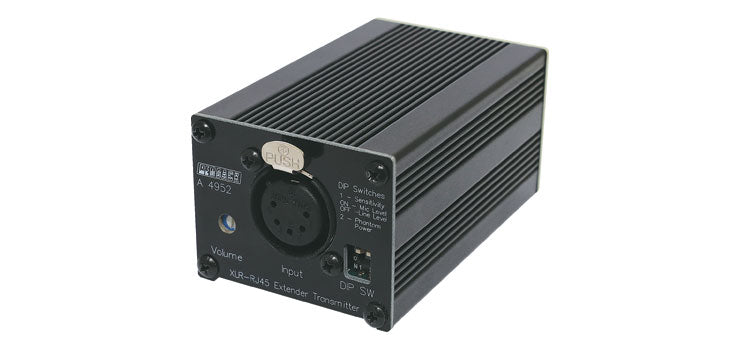

5 Pin XLR Cat5 Extender (Transmitter) A4952

SKU: 9321758245774


This 5 pin XLR UTP transmitter sends signals to compatible Redback UTP solutions receivers. It converts a balanced XLR signal with PTT to an RJ45 connection suitable for transmission over Cat5/6 UTP cabling. The input level is DIP switch selectable, and the input volume is screwdriver adjusted via the trimpot on the front of the unit. The unit is powered from 24V DC, which can be connected to the DC socket on the rear, or it can be supplied through the Cat5/6 cabling from other compatible Redback products (see connection matrix).

The Redback® A 4952 can be connected to compatible Redback® products such as the A 4954. These units send the balanced signal and push-to-talk (PTT) to the A 4954 ensuring seamless operation for paging microphones (PTT connects to pins 4 and 5 of the XLR socket).

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.
