Hearing induction loop amplifiers are installed to greatly enhance the listening experience of people using hearing aids. They are commonly installed in public areas which are generally noisy, making it difficult for hearing impaired users to hear clearly. Both models have been engineered to meet AS60118.4-2007 and include a compressor/limiter circuit with tailored frequency response ensuring excellent speech intelligibility. They will operate into loads of less than 2 ohms and are short circuit proof. Great for places of worship, community halls, museums etc.

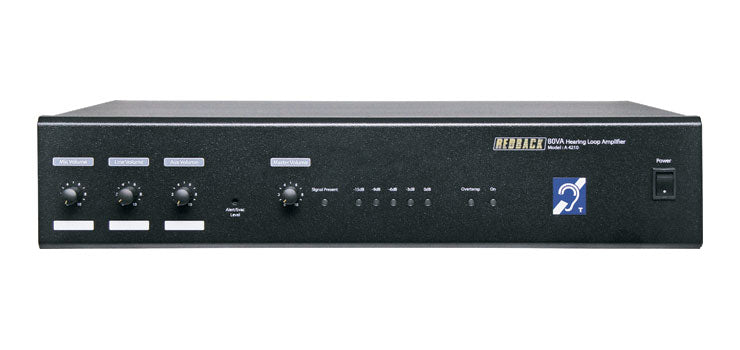

The A 4210 80VA model delivers 3.5A RMS, 5A peak and is suitable for areas of approximately 180m2. Note that coverage may vary from site to site depending on outside influences such as steel reinforcement, high current electrical wiring etc.).
Inputs are provided for balanced mic and line, auxiliary and an input with VOX muting for interfacing into venue emergency evacuation system.
Suitable for 19" rack mounting with use of A4376 rack mount ears.
Features
- Designed to meet AS60118.4-2007
- Coverage up to 180m2
- XLR line & mic inputs
- Aux input via stereo RCA
- EWIS signal connection (RCA)
- Short circuit proof
- Compressor for added speech intelligibility
- Adjustable VOX sensitivity
- Compatible with single loop designs
Specifications
- Measurements referenced to 1kHz
- A 4210 drive current: 3.5A RMS, 5A Peak
- Loop requirements: 0.2Ω to 1.7Ω preferred range
- Frequency response: 100Hz to 5kHz @ -2dB, 80Hz to 6kHz @ -3dB target.
- THD: <0.25% @ 50% drive
- Compressor: 2:1 for dynamics control (fast attack)
- Input: 3 pin XLR, Stereo RCA
- Output: Loop connection via pluggable terminals
- Power: 240V ac
- Dimensions: 432W x 380D x 88H
- Weight: 6.4kg
