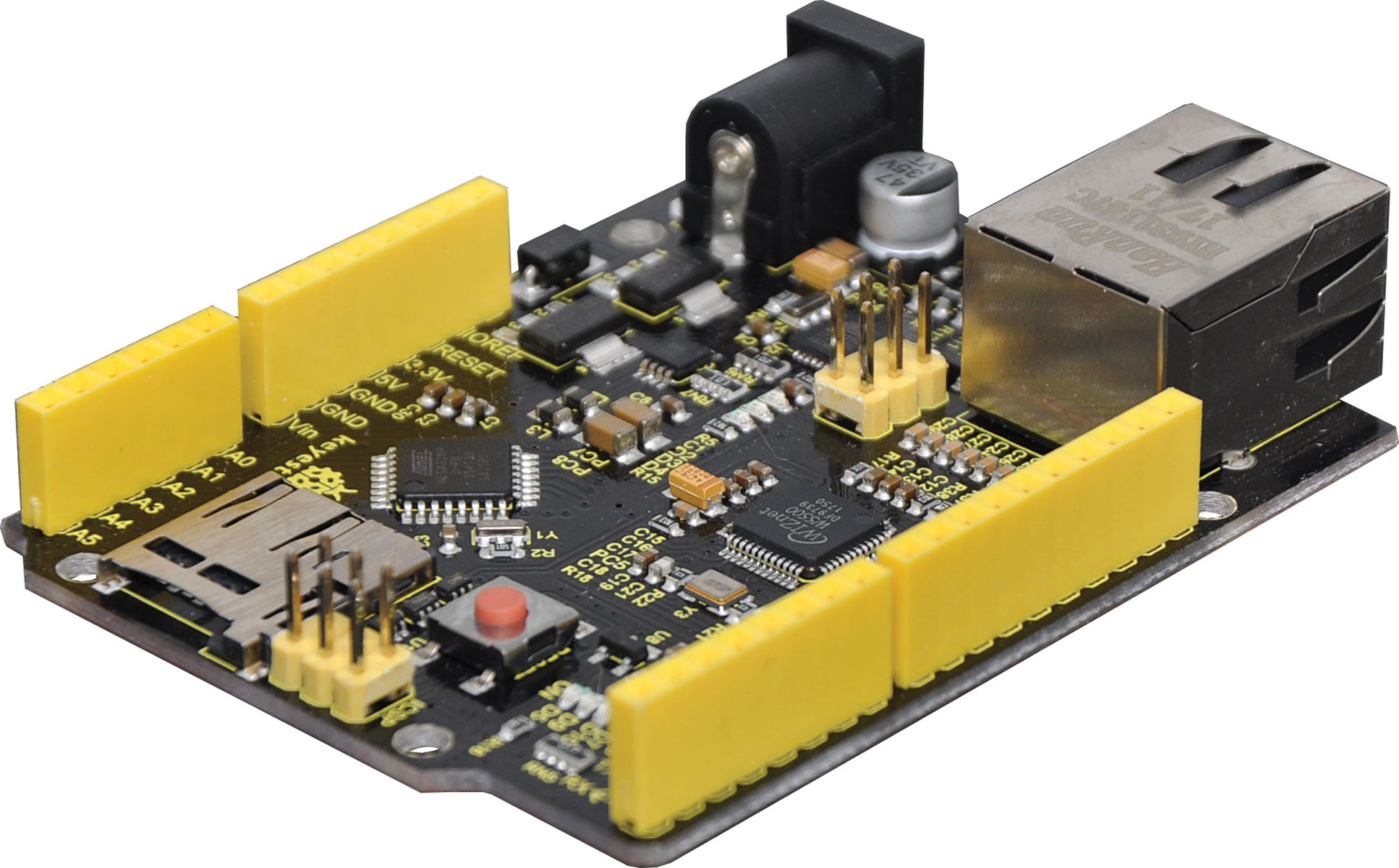

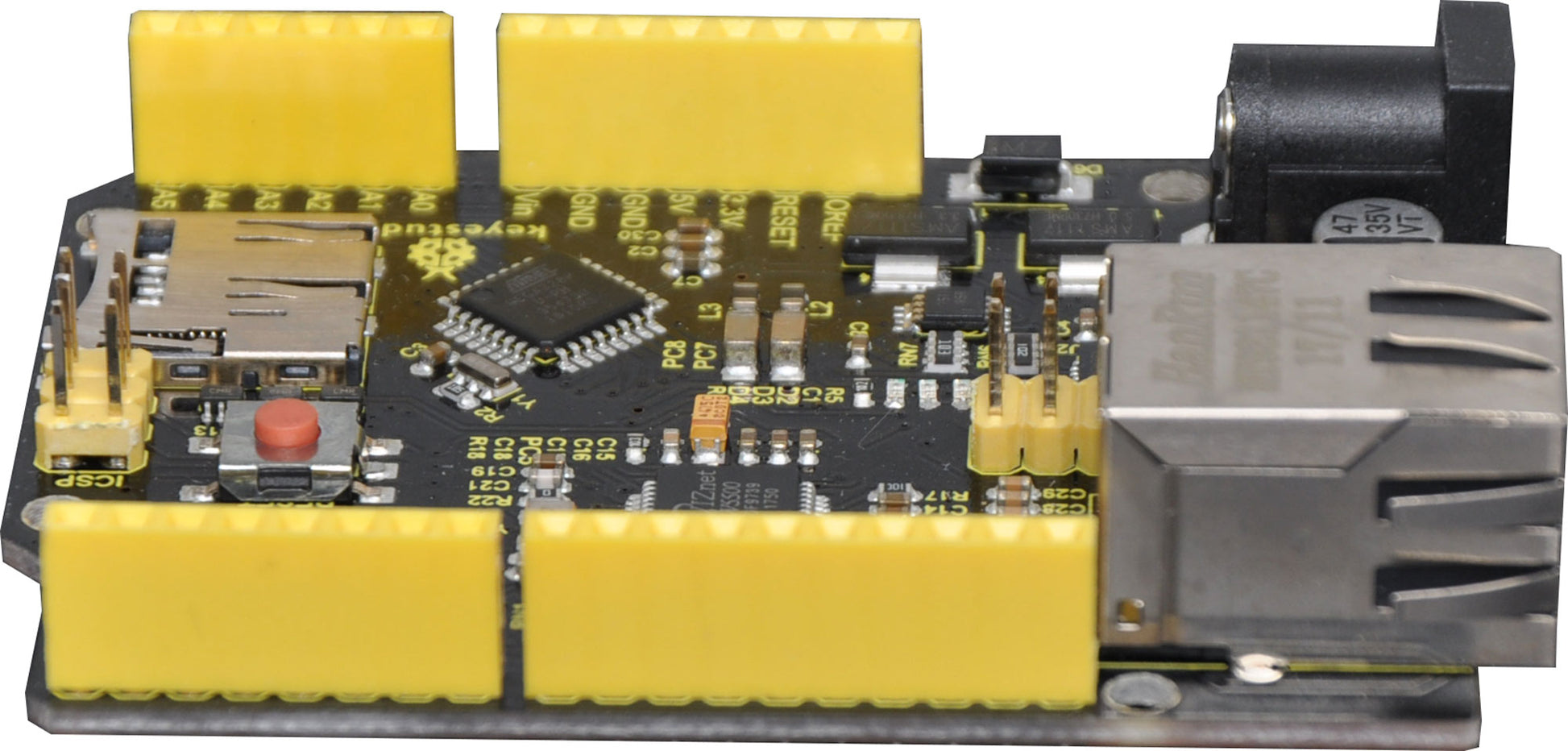

Arduino Compatible W5500 Ethernet Development Board Z6467
Arduino Compatible W5500 Ethernet Development Board Z6467
Regular price
$68.95
Regular price
Sale price
$68.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Connect your Arduino design to the internet-of-things with this handy W5500 ethernet development board with atmega328p on board. Fully compatible with UNO with integrated USB download & micro SD card slot.
Features
- In-built W5500 ethernet controller for instant IoT connection for your Arduino design
- Uses standard libraries
- On-board MicroSD card slot
- atmega328p UNO compatible microcontroller
- Standard pin outs and fully shield compatible
- Works with standard Arduino libraries and an updated IDE.
Specifications
- Main Chip: ATMEGA328 microcontroller
- USB Power Supply: 5v
- External Power: 7-12v (9v recommended)
- Digital Input/Output Pins: 14 (of which 6 pins support PWM)
- Analog Input Pin: 6
- Built-in Flash Memory: 32K
- SRAM: 2k
- EEPROM: 1K
- Clock Frequency: 16MH
