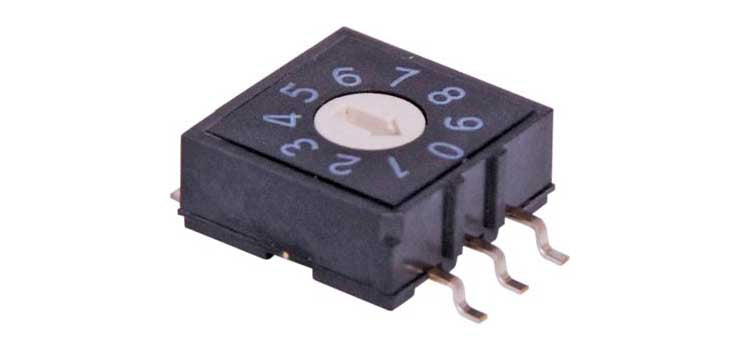

Encoding Switches 5 Pin BCD PCB Mount Rotary Switch S3001A

Contact Rating:
- 24VDC, 25mA (switching Rating)
- 50VDC, 100mA (non-switching Rating)
Electrical Life:
Contact Resistance. 200mΩ max. 20,000 cycles.
Contact Resistance: 100mΩ max. initial
Insulation Resistance: 100 MΩ min. at 250 VDC
Operation Force: (200gf.cm) max
Storage Temperature: -40°C to 85°C
Solderability: 230±5°C 3±sec. 75%
Solder Resistance: Automatic Soldering
Humidity: 40±2°C 90~95% RH for 96 hours
Thermal Test: 85±2°C for 96 hours
Cold Test: -40°C±2°C for 96 hours
