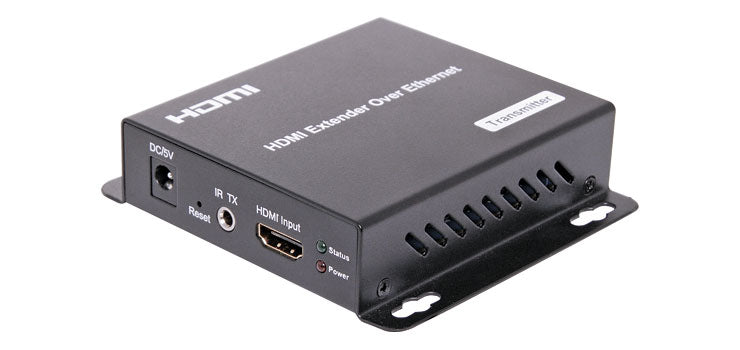

This series of HDMI balun components has an important difference to most HDMI balun products on the market in that it can send signals over ethernet switches, allowing HDMI sources and displays to be connected in an expandable network. It can also be used as a simple point to point extender. Simply connect via Cat5e/6 UTP cable to your switch, router or patch panel and enable the transmission of a single HDMI AV source to multiple receivers up to 120m away. The system offers full HD 1080p transmission without loss of signal quality. It also allows an infra-red signal path back to the source equipment for remote control at the receiver location. Ideal for use in distributed AV systems, shopping & convention centre video signage and other multi-screen environments. HDCP compliant. Power supply included with each unit. Transmitter includes IR emitter. Receiver includes IR target.
It is recommended that systems utilise a dedicated switch for HDMI transmission rather than connecting to a network already being utilised for data. Whilst the system will operate this way, data network performance will be significantly effected.
Dimensions: 103 x 93 x 24mm.
Receivers sold separately
Input video signal: 0.5-1.0 Volts P-P
Input DDC signal: 5 volts p-p(TTL)
Supported video formats: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
Video output: HDMI
Transmission distance: 1080P 8-bit 120m(Maximum) over single CAT5E/6 /24AWG/Solid
Power consumption: TX:3watts;RX:3watts((Maximum)
IR wave length &frequency: Wave length:940nm,frequency 38kHz
Dimensions: 103.5L x 93.5W x 24.6H mm
Net Weight: Receiver:220g, Transmitter:220g
TX:
- Default IP address:192.168.168.55
- MAC address:00:0b:78:00:60:01
RX:
- Default IP address:192.168.168.56
- MAC address:00:0b:78:00:60:02
Operating Temperature Range: -5 to +35℃(+23 to +95℉)
Operating Humidity Range: 5 to 90%RH (No Condensation)
