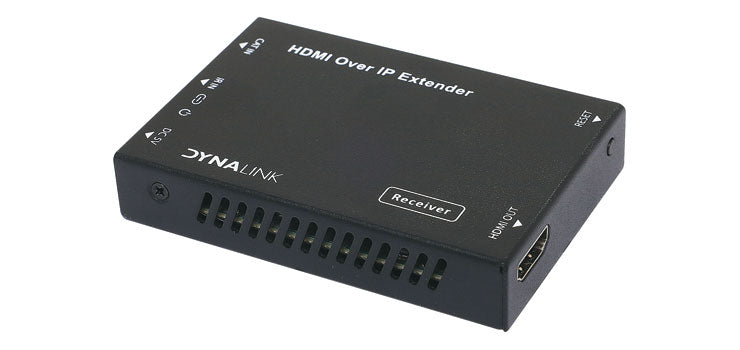

HDMI Over IP Extender Cat5e/6 Receiver A3139A

SKU: A3139A

Price:
$149

HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920x1200@ 60Hz YCbCr 4:4:4. It also supports HDMI loop output on transmitter.

HDMI over IP Extender requires two units: Transmitter and Receiver (sold separately).

The Transmitter (A3138A - see accessories listed below) is responsible for obtaining HDMI signals for encoding, transmitting via CAT 5e / 6 cables. It supports HDMI loop output.

The Receiver (A3139A) is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single Cat5e/6 cable and is the perfect solution for any application.

Box Contents
1x HDMI over IP Extender (Receiver)
1x IR Blaster cable (1.5m)
1x 5V/1A Power Adapters
1x User Manual

Technical
HDCP Compliance: HDCP 1.4
Video Bandwidth: 6.75Gbps
Video Resolution: 640x480@60Hz ~1920x1200@60Hz
HDMI Audio Formats: LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
IR Frequency: 20Hz ~ 60KHz
Compression Technology: H.265
Request for Switcher/Router: Support 1 GMP, Support DHCP
Colour Space: RGB YCbCr 4:4:4, YCbCr 4:2:2
Colour Depth: 12-bit
ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact Discharge)

Connection
Inputs: 1x CAT IN (RJ45 connector)
Outputs: 1x HDMI Type A (19-pin female)
Control: 1 x IR IN (3.5mm stereo mini-jack)

Mechanical
Housing: Metal Enclosure
Silkscreen Colour: Black
Dimensions: 88W x 61.2D x 16.5Hmm
Weight: 155g
Power Supply: Input: AC100 -240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)
Power consumption: Encoder: 1.5W, Decoder: 1.25W
Operation Temperature: -10°C ~ +50°C
Storage Temperature: -20°C ~ +60°C
Relative Humidity: 20~90% RH (non-condensing)

Resolution/Distance 1920x1200@60Hz
CAT 5e/6 cable: 150m



Resolution/Cable Length 1920x1200@60Hz
HDMI IN/OUT: 15m
