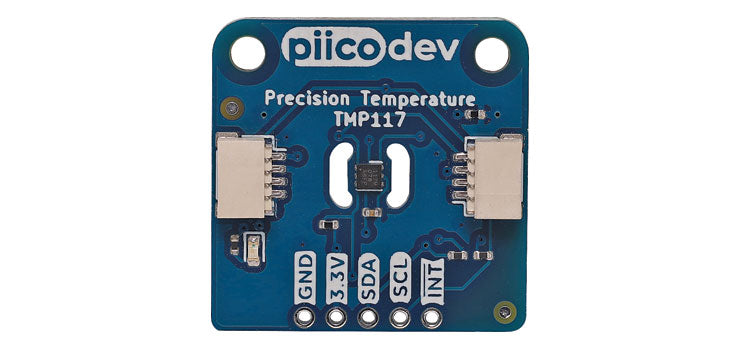

PiicoDev TMP117 Precision Temperature Sensor Z6580

The PiicoDev Precision Temperature Sensor features a low-power, high precision TMP117 with 16-bit resolution and an accuracy of ±0.1°C (across -20°C to +50°C) with no calibration required. The full operating range is -55°C to +150°C.

4 configurable I2C addresses. Default: 0x48
Dimensions: 25.4x25.4mm
Mounting Holes: 2x M2.5
TMP117:
±0.1°C from -20°C to +50°C
±0.15°C from -40°C to +70°C
±0.2°C from -40°C to +100°C
±0.25°C from -55°C to +125°C
±0.3°C from -55°C to +150°C
0.0078°C resolution (1 LSB)
