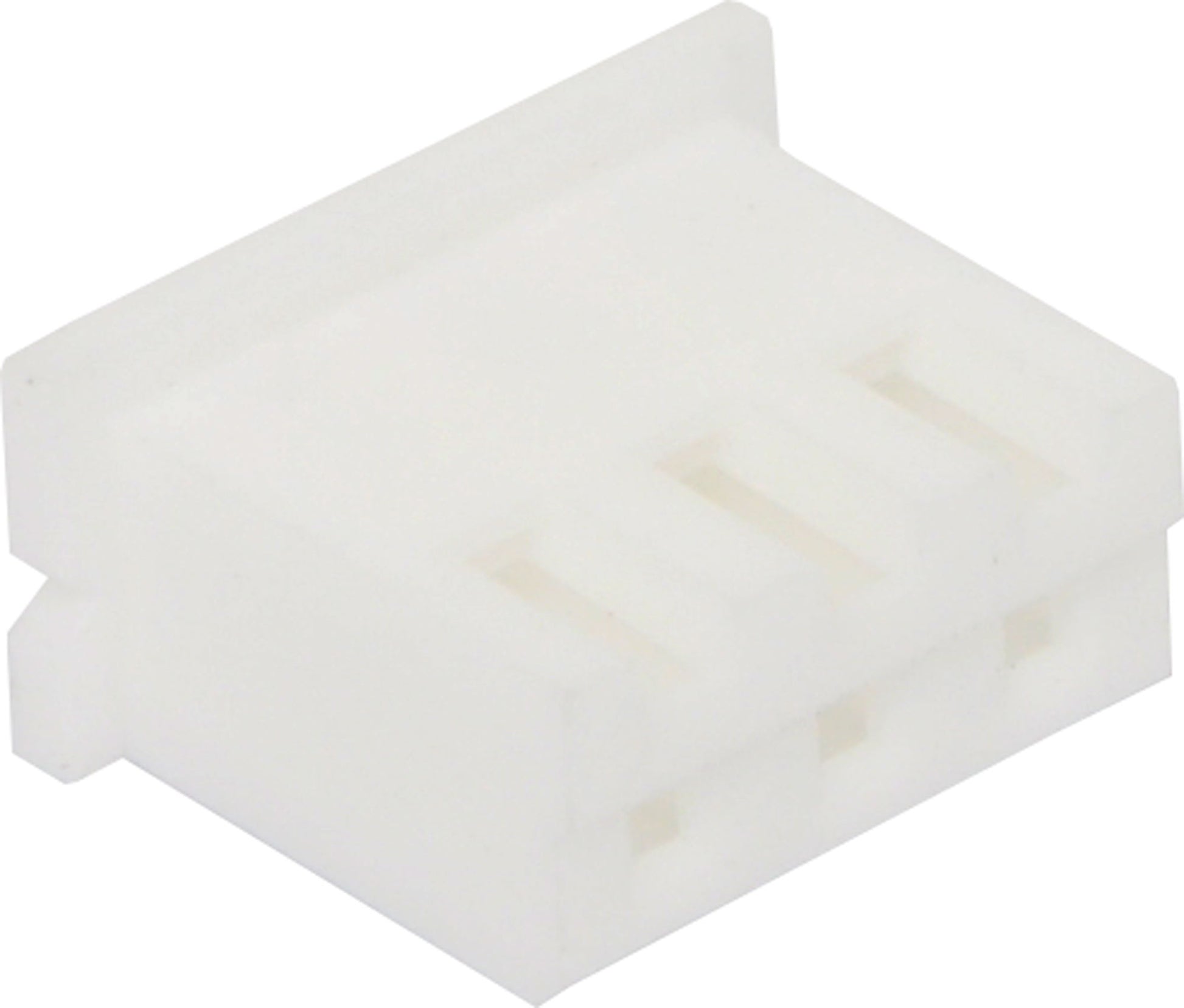

Pluggable Header 3 Way 2.5mm Crimp Housing P5753
Pluggable Header 3 Way 2.5mm Crimp Housing P5753
Regular price
$0.90
Regular price
Sale price
$0.90
Unit price
per
Taxes included.
Couldn't load pickup availability
Header Plugs. 2.5mm Spacing Rated at 2A.
Crimp pins sold separately - see accessories listed below.
Specifications
Material
- Housing: Nylon 66 flame retardent UL94V-0
- Recommended wire: 22AWG -28AWG
Electrical
- Current rating: 2A
- Insulator resistance: 1000MΩ min. @ 250V AC
- Operating temperature: -25ºC - +85ºC
