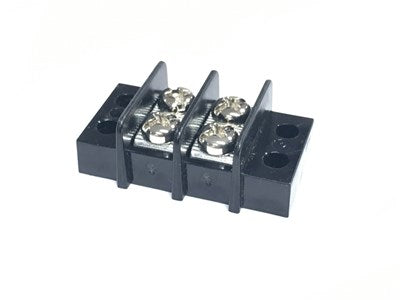

Screw Terminal Strip Surface Mount 2 Way HM3167

These units feature the ability to terminate 2 or 3 sets of wires securely with the option of changing or adding connections. In classic barrier strip fashion there is a comprehensive fence between each terminal. Each sturdy block has 2 x 4mm mounting holes at each end and a insulating body with high impact plastic.

Two models available:
HM3169 - Surface Mount 3 Way Screw Terminal Strip

Specifications

AC current rating : 25A

AC Voltage rating : 300V

Packaged Volume : 0.01l

Packaged Weight : 0.01kg

Packaged Length : 3.6cm

Packaged Width : 2.1cm

Packaged Height : 1.5cm

Type : Screw Terminal

Device : Terminal

Attachment Method : Screw Terminals

Number of Contacts : 2pc

Insulation Dielectric Voltage Rating : 2000V

Insulation Resistance : 500MΩ

Body Material : Plastic
