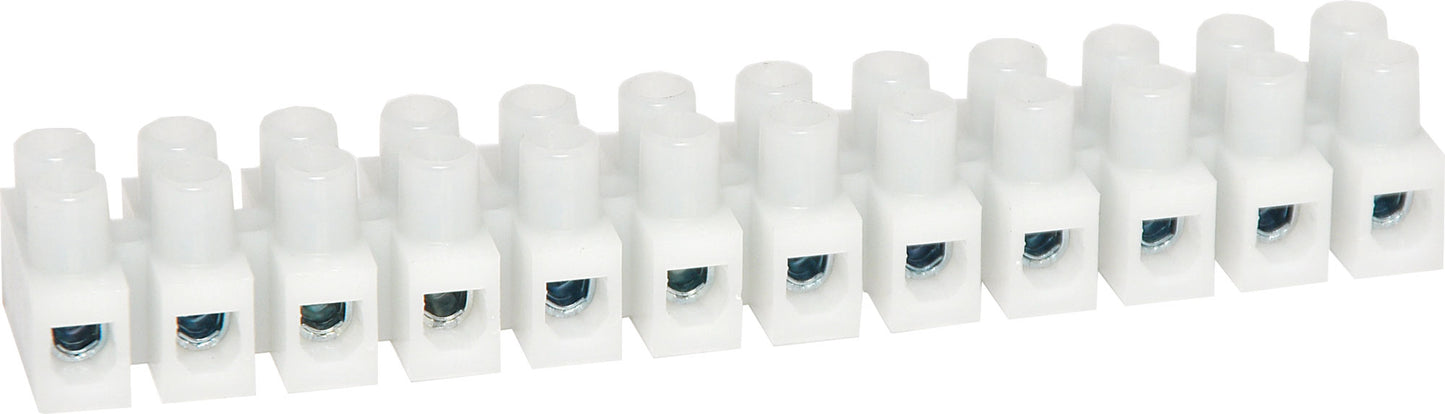

Standard type, rated 500V @ 41A.
Dimensions:
A: 141mm
B: 24
C: 19
D: 4.2
Pitch: 12mm
Specifications
- ClampingArea : 6 mm2
- Wire Range: 22AWG - 10AWG Sol/Str
- Screw: M3.5x7
- Features
- Base：1.0~2.5 mm Raised Base Type
- Housing Material：Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2
- Temperature Rating： -30°C to T110°C
- Terminal Insert：Brass metal alloy, nickel plated
- Screw：Steel, zinc plated
