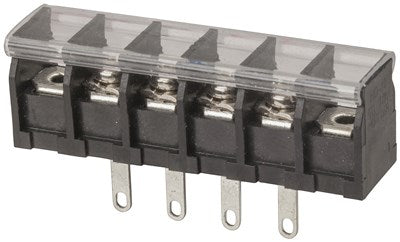

Screw Terminals 6 Way Barrier Terminal With Cover HM3166
Screw Terminals 6 Way Barrier Terminal With Cover HM3166
Regular price
$6.95
Regular price
Sale price
$6.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Barrier Material: Thermoplastic (UL=94V-0), Black
Terminals: Tint Plated Brass (Standard)
Screws: Nickel Plated Steel
Wire Range AWG: 12-22 STR
Cover Material: PC
Insulation withstands voltage AC 2000V/Min
Pole HD-12-? P HD-12-? PH
A (Px9.5)+1.4 (P+2)*9.5+1.4
B (P-1)*9.5 (P+1)*9.5
Terminals: Tint Plated Brass (Standard)
Screws: Nickel Plated Steel
Wire Range AWG: 12-22 STR
Cover Material: PC
Insulation withstands voltage AC 2000V/Min
Pole HD-12-? P HD-12-? PH
A (Px9.5)+1.4 (P+2)*9.5+1.4
B (P-1)*9.5 (P+1)*9.5
Specifications
| AC current rating : 25A |
| Packaged Volume : 0.03l |
| Packaged Weight : 0.02kg |
| Packaged Length : 5.8cm |
| Packaged Width : 1.5cm |
| Packaged Height : 3cm |
| Type : Screw Terminal |
| Device : Terminal |
| Attachment Method : Solder Tag |
| Number of Contacts : 4pc |
| Terminal Spacing : 9.5mm |
| Insulation Dielectric Voltage Rating : 2V |
| Insulation Resistance : 500MΩ |
