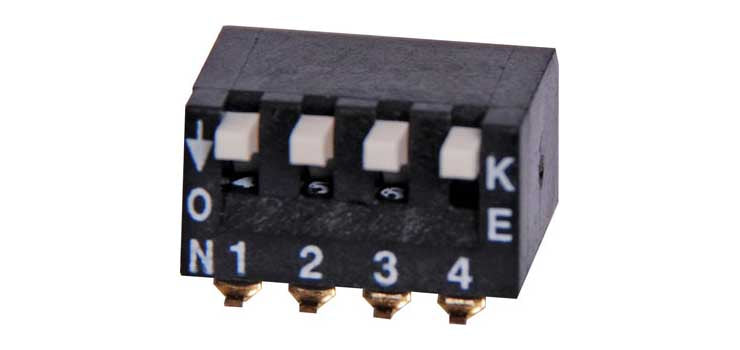

DIP Switch 4 Way Tiny Piano SMD DIP Switch S3114

Gold plated contacts and pins. Durable self wiping
contacts.

Rating: 50V dc 100mA continuous, 24V dc 25mA
Switching contact resistance: 50mΩ max. initially
Insulation resistance: 100MΩ min
Operation life: 2000 cycles per switch
Dielectric breakdown voltage: 500V ac min
Operation force: 1000g max
Terminals: Gold plated brass
