80mm 12VDC IP68 Ball Bearing Cooling Fan F0950

SKU: F0950

Price:
$95

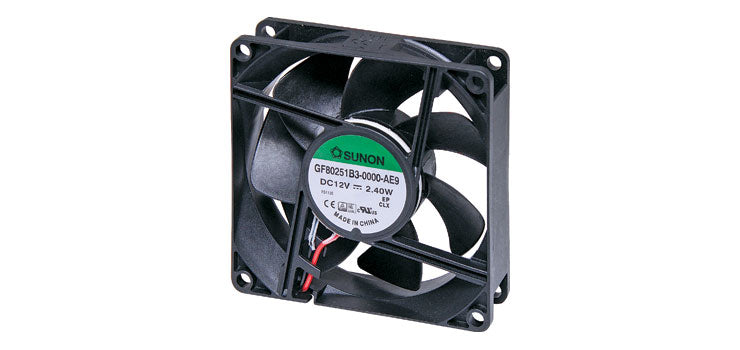

A 12V DC 80mm Sunon Ball Bearing Waterproof Cooling Fan (#GF80251B3-0000-AE9) with thermoplastic frame. This model is IP68 rated for use in areas exposed to dust and moisture. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Mechanical Characteristics
Motor Design: Single phase, 4 poles brushless DC motor
Bearing System: Precision ball bearing system
Frame Material: Thermoplastic PBT of UL94V-0
Blade Material: Thermoplastic PBT of UL94V-0
Direction of Rotation: Counter clockwise viewed from the front of the fan blade
Mounting Holes: 8x 4.3mm holes
Weight: 105g
Dimensions: 80 x 80 x 25mm

Electrical Characteristics
Rated Voltage: 12V DC
Rated Current: 200mA (230mA max)
Rated Power Consumption: 2.40W (2.76W max)
Operating Voltage Range: 6~13.8V DC
Starting Voltage: 6V DC (25°C Power On/Off)
Operating Temperature: -10°C ~ +70°C
Storage Temperature: -40°C ~ +70°C

Performance Characteristics
Rated Speed: 4200 RPM ±10% at rated voltage
Air Flow: 53 CFM
Static Pressure: 0.30 Inch-H2O
Noise Level: 44.5dB(A)
Insulation Class: UL Class A
Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
Life Expectancy: 70,000 hours at 40°C, 65% RH, 90% CL
Protection: Automatic restart
