Anderson Plug Power Pole Style High Current DC 75A 600V Red P7817B
Anderson Plug Power Pole Style High Current DC 75A 600V Red P7817B
Regular price
$5.50
Regular price
Sale price
$5.50
Unit price
per
Taxes included.
Pickup available at Leading Edge Electronics Gladstone Hi-Fi
Usually ready in 24 hours

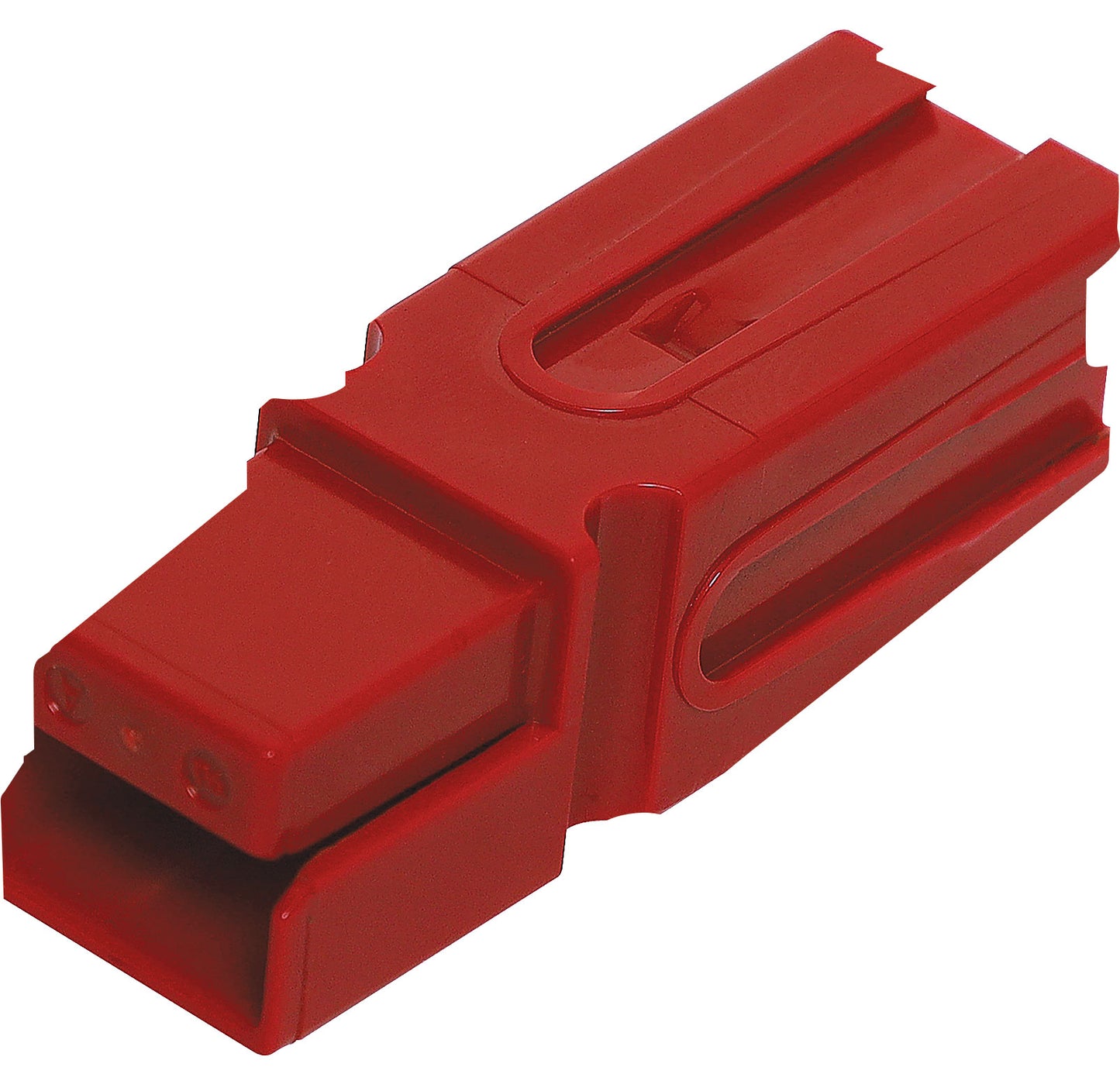

Anderson PowerPole style DC 600V connector (not genuine). As used in automotive and industrial applications. Can be dovetailed together for multi-pole connectors. 75A rated. Sold individually. Sold individually.

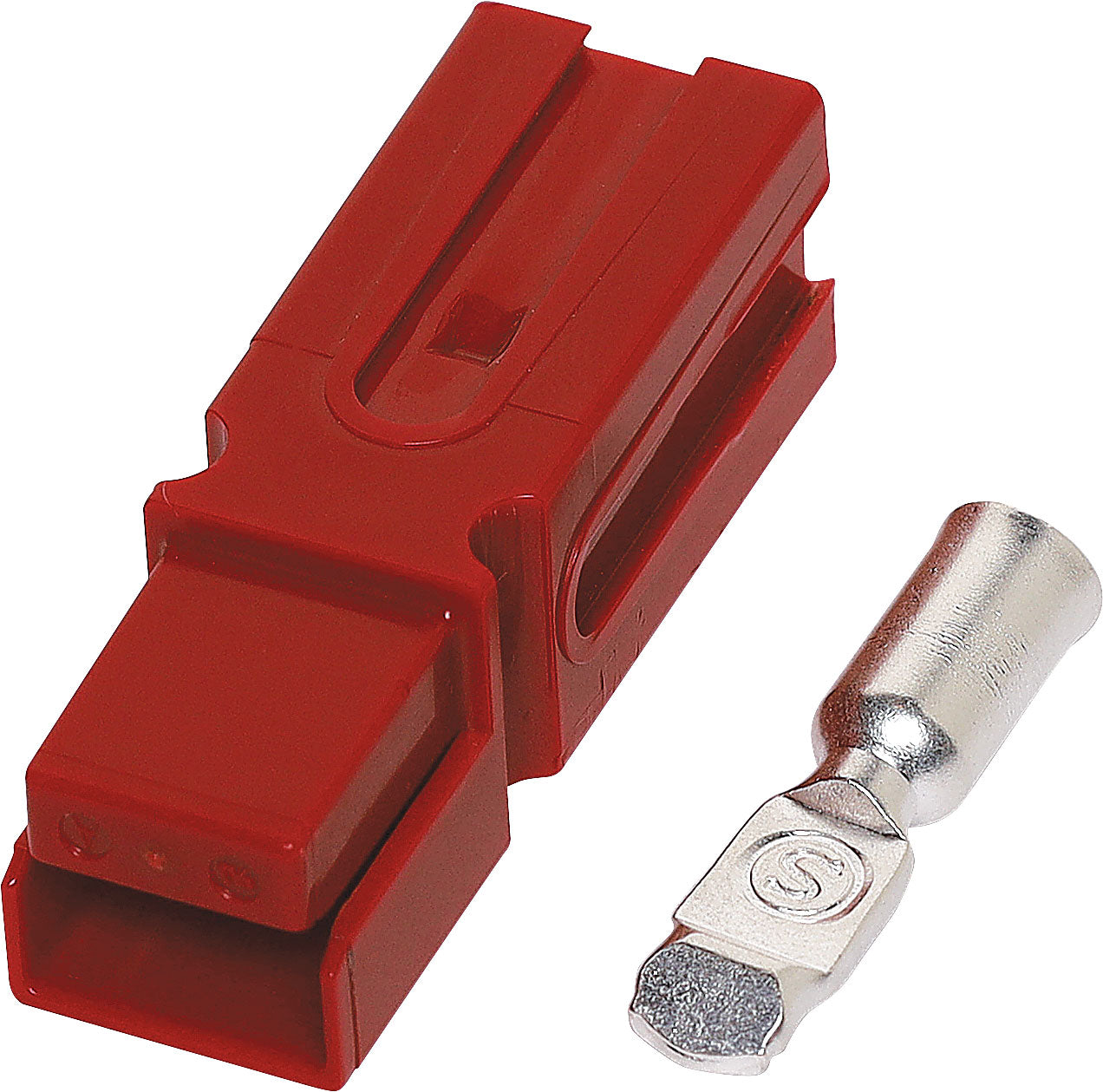

Supplied with connector housing and crimp lug.
Specifications
- Cable Entry: 3.2mm.
- Max Insulation Diameter: 11mm
- Rated current: 75A
- Rated voltage: 600V
- Insulation Resistance: 5000MΩ
- Average contact Resistance(micro-ohms):＜180 1-5.
- Voltage Proof: 2200V(DC)
- Life Without load(Contact/Disconnect Cycles):To 10000
- Life With Load (Hot Plug 250 Cycles＆120V): 50A
- Flammability:UL94 V-0
- Contact Barrel Wire Size(AWG):6~12AWG
- Connector holding force(LBF):250N Min
- Environment Temperatures:-20℃ to 125℃
