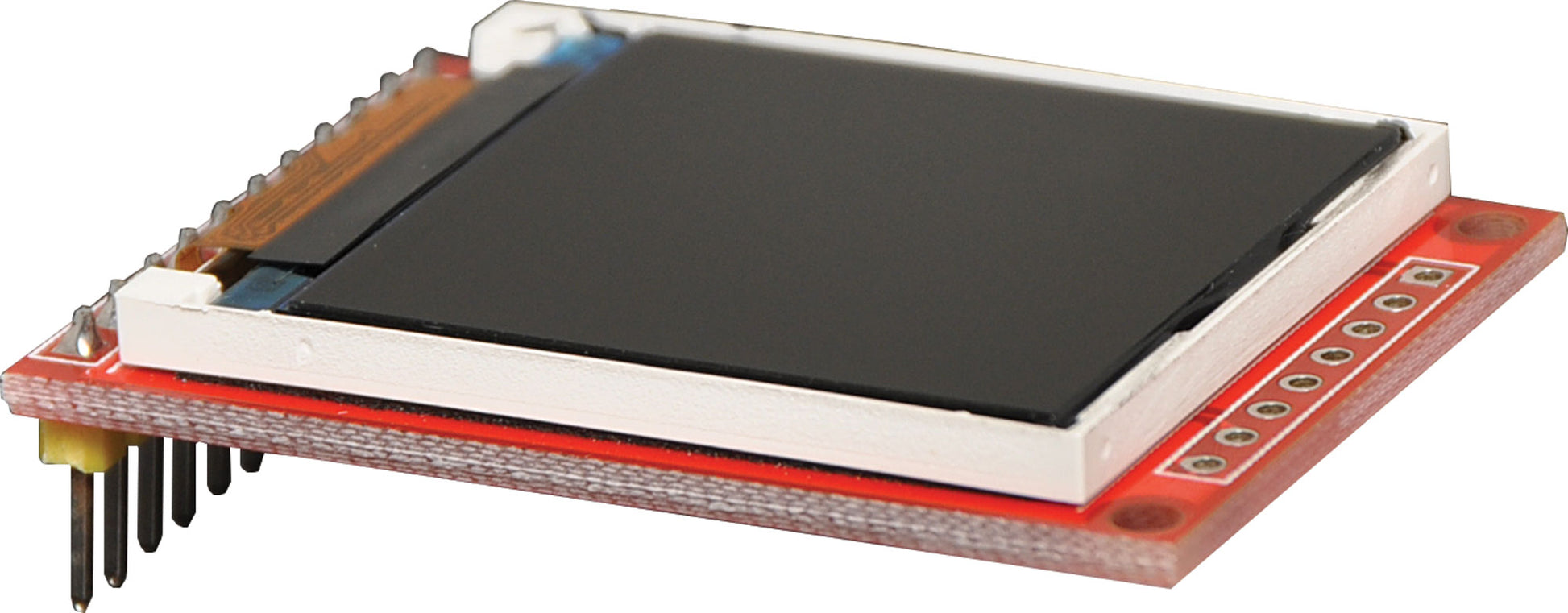

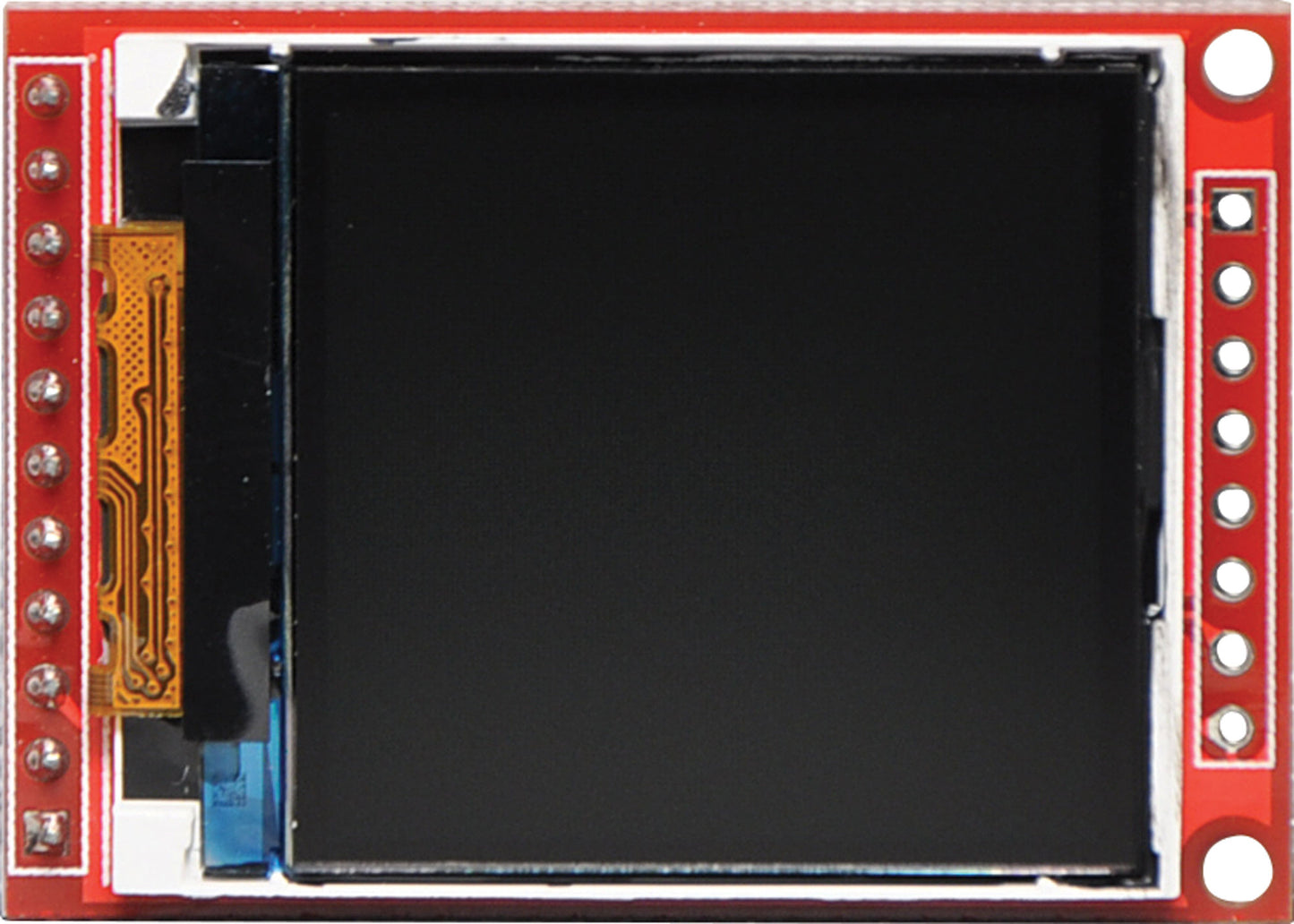

This colour TFT LCD display has 128 x 128 resolution and 262 colour. It uses SPI interface to communicate with controller such Arduino, it is the best upgrading of the Nokia5110.
Specifications
- Screen size: 1.44 inch
- Interface: SPI
- Resolution: 128*128
- Visual area: 1:1 square
- TFT colour screen, the effect is far better than other small CSTN screen

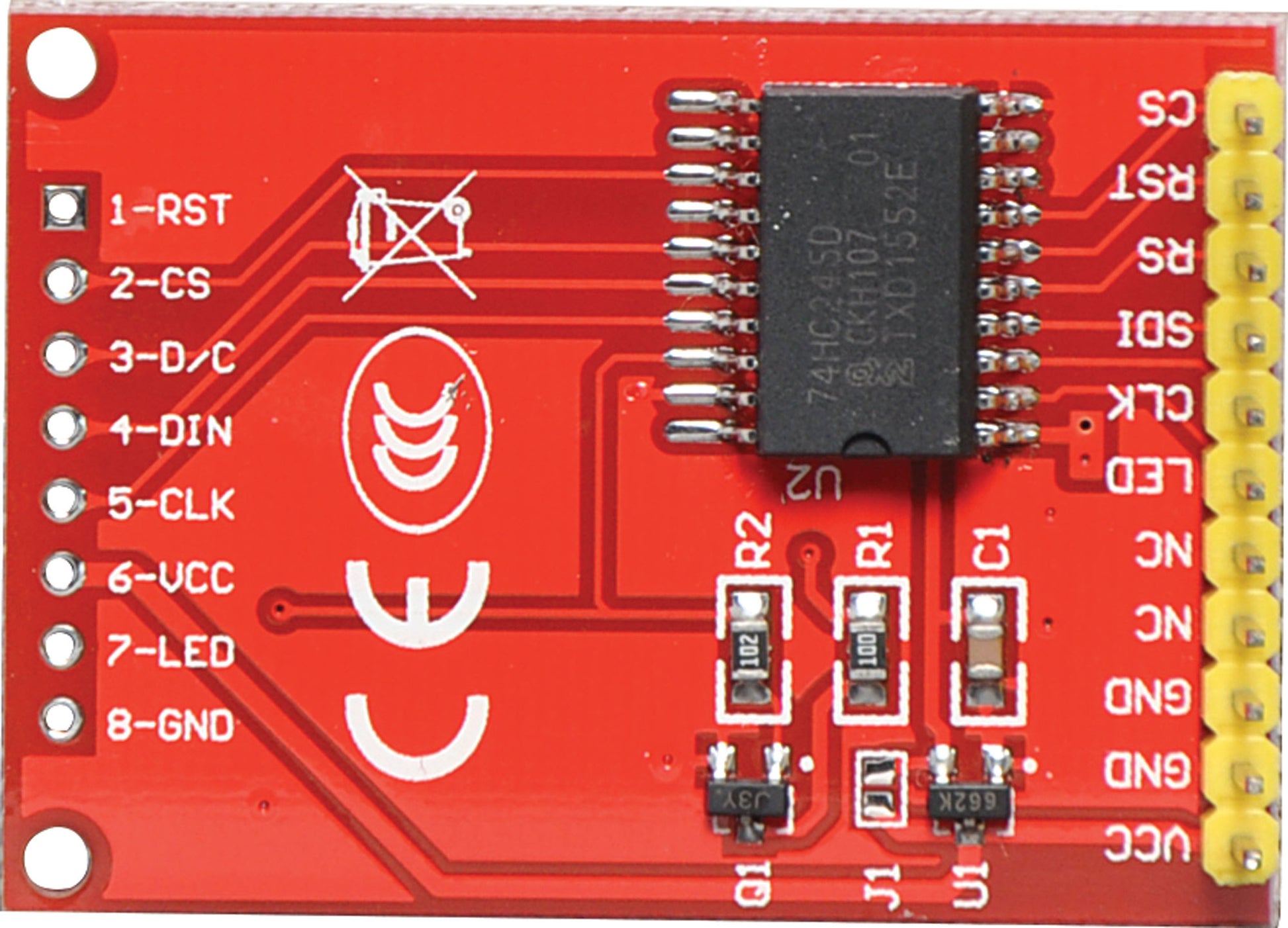

- Drive IC: ST7735
- Onboard LDO, support 5V/3.3V input voltage, the LED backlight, 3.3V input
- Dimensions: 44x31x13mm
- Weight: 10g
