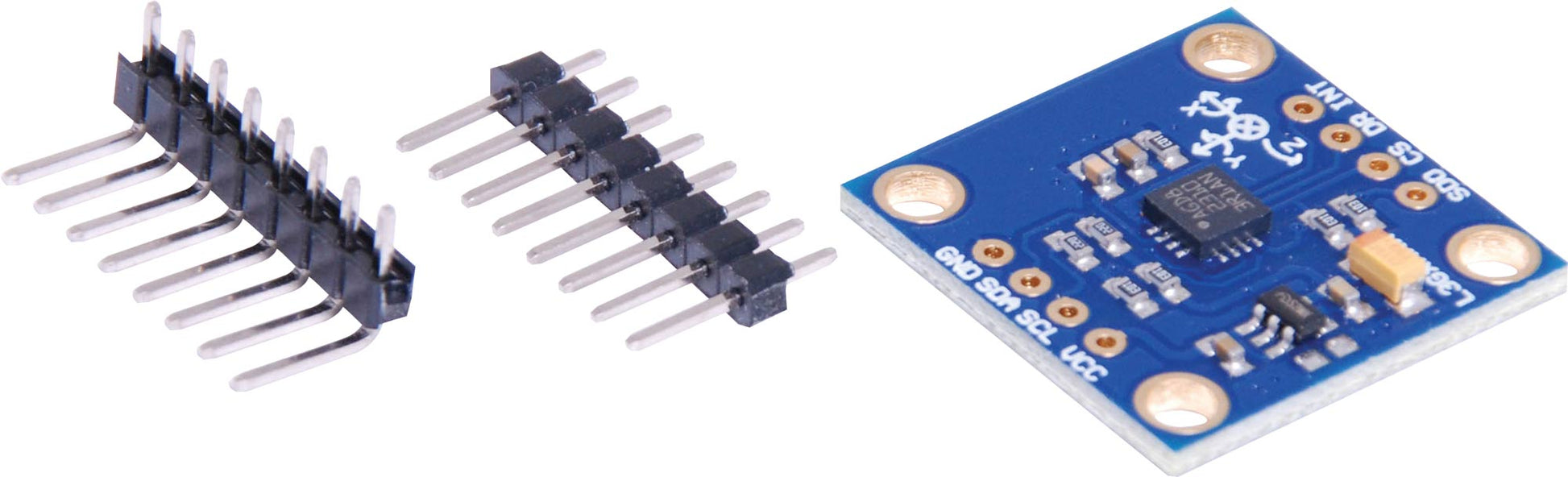

Arduino L3G4200D 3 Axis Gyroscope Breakout For Arduino Z6371

3-axis gyroscope, providing very high resolution (16 bit) measurements at up to 2000 dps. Measures how much your device is rotating around three axes within a selectable range. Ideal for gaming, and robotics applications. Includes headers. 3-5V input.

Features

• Three selectable full scales (250/500/2000 dps)
• I2C/SPI digital output interface
• 16 bit-rate value data output
• 8-bit temperature data output
• Two digital output lines (interrupt and data ready)
• Integrated low- and high-pass filters with user-selectable bandwidth
• Ultra-stable over temperature and time
• Embedded power-down and sleep mode
• Embedded temperature sensor
• Embedded FIFO
• High shock survivability
• Extended operating temperature range (-40 °C to +85 °C)

Chip Overview:
The L3G4200D is a low-power three-axis angular rate sensor able to provide unprecedented stablility of zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI).

The sensing element is manufactured using a dedicated micro-machining process developed by STMicroelectronics to produce inertial sensors and actuators on silicon wafers.

The IC interface is manufactured using a CMOS process that allows a high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The L3G4200D has a full scale of ±250/±500/ ±2000 dps and is capable of measuring rates with a user-selectable bandwidth.

The L3G4200D is available in a plastic land grid array (LGA) package and can operate within a temperature range of -40 °C to +85 °C.
